ASUS Pro WS 1600W Platinum ATX 3.1 & PCIE 5.1 Full Modular Power Supply

The ASUS Pro WS 1600W Platinum ATX 3.1 & PCIE 5.1 Full Modular Power Supply is a heavy-duty, professional-grade PSU. This Power Supply supports up to two NVIDIA GeForce RTX 5090 graphics cards simultaneously through rock-solid voltage stability and advanced power delivery. ATX 3.1 compliance ensures tighter voltage and current regulation for next-generation hardware compatibility across the most demanding modern system configurations.

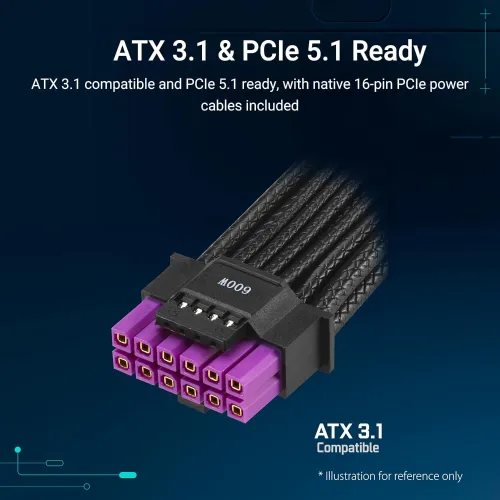

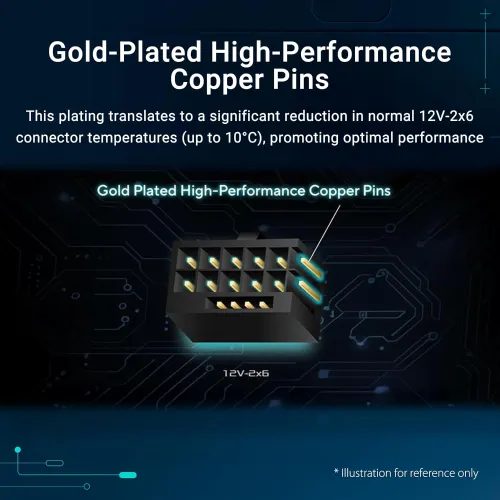

Two native PCIe 5.1 16-pin connectors each deliver up to 600W to cutting-edge graphics cards for maximum GPU power headroom. The ASUS Pro WS 1600W Platinum Power Supply achieves 80 PLUS Platinum certification using low-ESR Japanese server-grade capacitors for 92% efficiency at 50% load and 89% at 100% load. Gold-plated copper pins on PCIe connectors reduce connector temperatures by up to 10°C, improving power delivery efficiency and long-term connector durability.

Dual-ball fan bearings deliver an outstanding lifespan of up to 80,000 hours, lasting twice as long as standard sleeve-bearing designs. The ASUS Pro WS 1600W Platinum Full Modular Power Supply has extruded aluminum heatsinks with twice the volume of standard designs dissipate heat more effectively and extend critical component lifespan significantly. The ASUS 1600W Power Supply features a protective conformal PCB coating that shields the circuit board against moisture, dust, and debris-induced short-circuits.

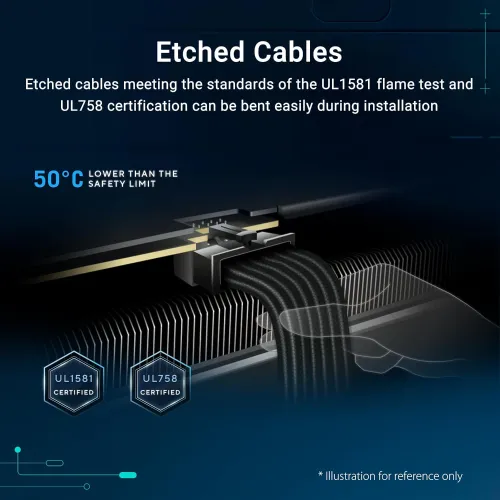

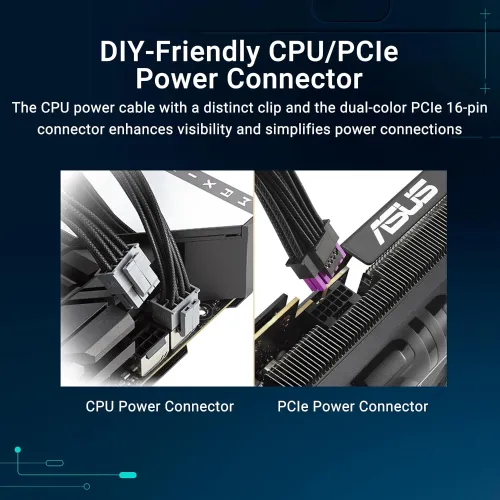

Etched cables made from premium pliable materials operate at temperatures 50°C below the safety limit and meet UL1581 and UL758 certification standards. Cable connectors include one 24-pin MB, two 4+4-pin CPU, two PCIe 5.1 16-pin, four PCIe 6+2-pin, nine SATA, and three peripheral connectors for comprehensive build flexibility. This ASUS Pro WS 1600W Platinum Full Modular Power Supply has maximum output reaches 1600W on the 12V rail supporting up to 133.3A for extreme power demands.

Active PFC ensures stable AC input performance across 200–240Vac supply ranges. Protection features include OPP, OVP, UVP, SCP, OCP, and OTP for comprehensive system safety. The ASUS Power Supply measures a compact 175mm length for flexible installation across various PC case sizes.
