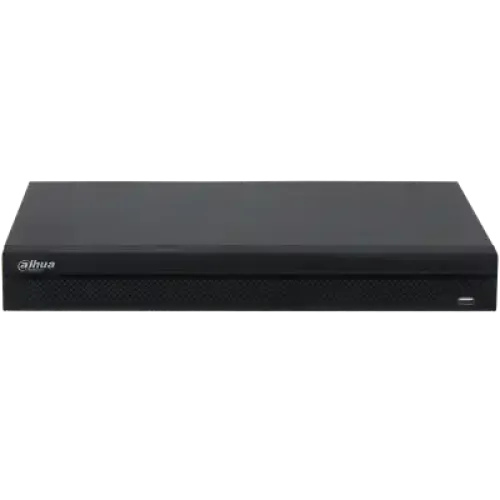

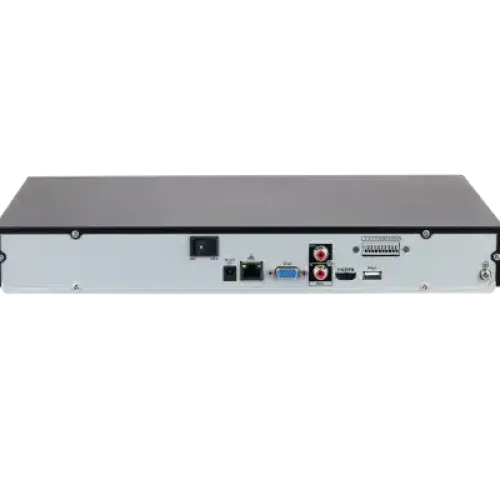

Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder (NVR)

Name: Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder (NVR)
Brand: Dahua
Price: 20500 BDT
Availability: InStock

Model: NVR4232-4KS3Item #: dahua-nvr4232-4ks3-32-channel-nvr

৳20,500~~৳22,500~~Save 9%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Overview

The Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder (NVR) provides reliable video management and high-efficiency AI capabilities for sophisticated surveillance systems. With its support for Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding, this NVR effectively lowers storage and bandwidth needs. It offers outstanding video quality and clarity with a maximum decoding capability of 8 channels at 1080p or 2 channels at 8 MP, and support for IP cameras up to 12 MP. With performance changes for AI-enabled modes, the Dahua NVR4232-4KS3 32 Channel NVR can handle up to 160 Mbps for incoming, 128 Mbps for recording, and 60 Mbps for outgoing bandwidth. While AI by Camera supports a wide range of capabilities, such as face identification and recognition, perimeter security, people counting, stereo analysis, and heat maps, AI by Recorder provides 2-channel SMD Plus. With an embedded Linux operating system and an industrial-grade processor, the Dahua NVR4232-4KS3 32 Channel 1U 2 HDD NVR boasts an easy-to-use interface that can be accessed via a local or web GUI. It has two SATA ports that can hold up to 20 TB apiece, so there is plenty of storage. Additionally, it offers a wide range of alarm choices, including intelligent alarms for face detection and SMD Plus to reduce false alarms, anomaly alarms for problems like IP conflicts, and basic alarms for motion detection and privacy masking. This Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder has a VGA output and an HDMI output (3840 × 2160 max resolution) for smooth connectivity. It also has multi-screen display options for both normal and AI-enabled viewing. Additionally, it enhances interoperability by supporting a range of network protocols and third-party camera integration using ONVIF. With features like rapid playback, USB/network backup choices, and compatibility with iOS and Android mobile apps, the NVR4232-4KS3 is a strong, scalable solution for sophisticated surveillance systems that is perfect for companies that need dependable monitoring and high-definition video storage.

Specifications

Network — PoE: N/A
Highlights — Model: NVR4232-4KS3
Display — Interface: 1 HDMI, 1 VGA
Network — Interface: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Display — Resolution: 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Power — Power Supply: 12 VDC, 4 A
Recording — Bit Rate: Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth
Network — Smart Phone: iOS; Android

Show all 36 specifications

Recording — Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Storage — Internal HDD: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
Recording — Compression: Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
Recording — Record Mode: General, motion detection; intelligent; alarm
System — Main Processor: Industrial-grade processor
Auxiliary Interface — USB: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Construction — Dimensions: 375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
Construction — Net Weight: 1.49 kg (3.28 lb)
Power — Power Consumption: Total output of NVR is <10 W(without HDD)
System — Operating System: Embedded LINUX
Network — Interoperability: ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Network — Network Function: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Construction — Gross Weight: 2.77 kg (6.11 lb)
Display — Decoding Capacity: AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
Audio and Video — Two-Way Talk: 1 Channel Input, 1 Channel Output, RCA
Display — Multi-Screen Display: AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
Audio and Video — IP Camera Input: 32 Channel
Playback And Backup — Backup Mode: USB Device/Network
Playback And Backup — Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Warranty — Manufacturing Warranty: 01-year warranty
Playback And Backup — Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Video Detection And Alarm — Alarm Input: 4 channels
Video Detection And Alarm — Relay Output: 2 channels (1-channel 12 V 1 A output）
Third Party Support — Third Party Support: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Detection And Alarm — Trigger Event: Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception; Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map; ;
Component Environment — Storage Conditions: –20 °C to +60 °C (–4 °F to +140 °F)
Video Detection And Alarm — Video Detection: Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Component Environment — Operational Conditions: –10 °C to +55 °C (14 °F to +131 °F)
