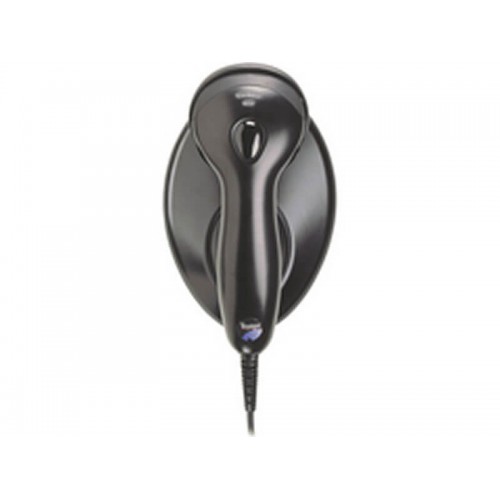

Honeywell Voyager 9520 General Duty Scanners

Model: Voyager 9520Item #: honeywell-voyager-9520-and-voyagercg-9540

৳11,000৳11,500Save 4%

In stockverified

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka
৳60 · 1–2 days
Outside Dhaka
৳120 · 2–4 days

Sold by Micro

Key highlights

  • USB, RS232-485 etc Connectivity

Overview

Honeywell Voyager 9520 General Duty Scanners
MECHANICAL
  • Dimensions (LxWxH)-198 mm x 78 mm x 56 mm (7.8 in x 3.1 in x 2.2 in)
  • Weight-149 g (5.3 oz)
ELECTRICAL
  • Input Voltage-5 VDC + 0.25 V
  • Operating Power-600 mW (120 mA @ 5 V)
  • Standby Power-0.45 W (90mA @ 5 VDC)
  • Host System Interfaces-USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
SCAN PERFORMANCE
  • Scan Pattern-Single scan line
  • Scan Speed-72 scan lines per second
  • Scan Angle-Horizontal: 50°
  • Symbol Contrast-35% minimum reflectance difference
  • Pitch, Skew-68°, 52°
  • Decode Capability-Reads standard 1D and GS1 DataBar symbologies
ENVIRONMENTAL
  • Operating Temperature-0°C to 40°C (32°F to 104°F)
  • Storage Temperature -40°C to 60°C (-40°F to 140°F)
  • Humidity-5% to 95% relative humidity, non-condensing
01 Years Warranty
