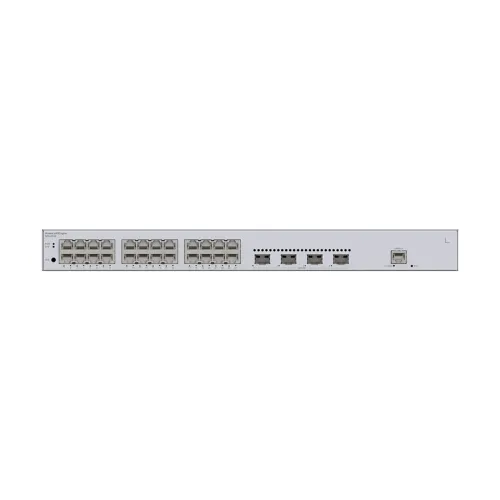

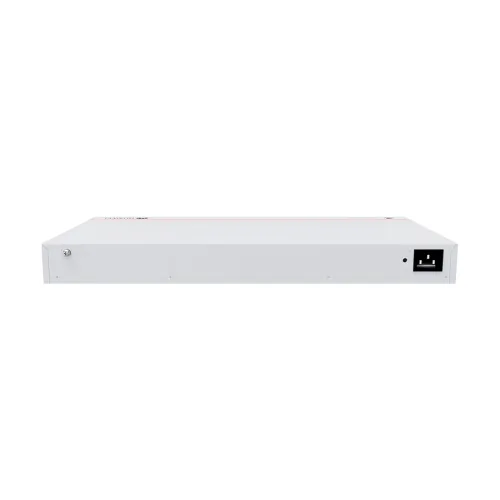

Huawei eKitEngine S220-24P4X 24 Port Gigabit PoE WEB-Managed Switch

The Huawei eKitEngine S220-24P4X is a versatile 24-port Gigabit PoE web-managed switch designed for demanding network settings that require Power over Ethernet (PoE) functionality. With a significant switching capacity of 128 Gbps and a packet forwarding rate of 95 Mpps, this switch ensures reliable and effective data transfer. It has four 10GE SFP+ uplink ports for multiple connectivity options and twenty-four 10/100/1000BASE-T PoE+ ports that can offer up to 400 W of power. The inbuilt AC power module can handle high-voltage DC input and runs between 100 and 240 V AC at 50/60 Hz. The maximum power consumption of the Huawei eKitEngine S220-24P4X 24 Port Gigabit PoE WEB-Managed Switch is 485.91 W when the PoE load is fully loaded and 44.35 W when it is not. It effectively controls heat dissipation; in full PoE load conditions, typical values can reach up to 1657.92 BTU/hour. With an MTBF of 60.18 years and an MTTR of 2 hours, the switch demonstrates operational resilience and achieves availability of over 99.999%. Strong surge protection is provided, with the power supply and service ports shielded up to ±6 kV and ±7 kV, respectively. With a dual-core CPU operating at 1.1 GHz, 2 GB of RAM, and 1 GB of flash storage, the switch offers dependable network administration and processing. Built for longevity and dependable performance in a variety of networking applications, the Huawei eKitEngine S220-24P4X 24 Port Gigabit PoE WEB-Managed Switch is certified for IP20 ingress protection, EMC, safety, and manufacturing requirements.
