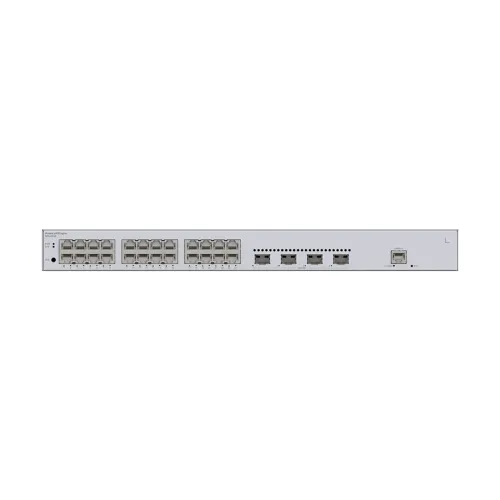

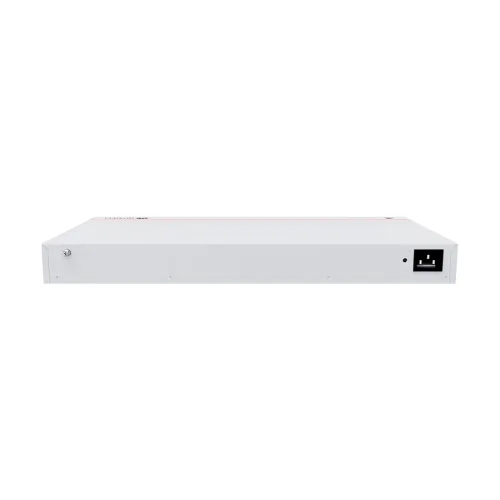

Huawei eKitEngine S220-24T4X 24 Port Gigabit WEB-Managed Switch

The Huawei eKitEngine S220-24T4X is a powerful 24-port Gigabit web-managed switch that guarantees effective data handling and low latency. It has a significant switching capacity of 128 Gbps and a packet forwarding rate of 95 Mpps. With four 10GE SFP+ uplink ports and twenty-four 10/100/1000BASE-T downlink connections, the switch offers a wide range of connectivity possibilities. It effectively controls noise, maintaining sound pressure at 35 dB(A) in typical circumstances and sound power levels at 47 dB(A) in normal temperatures and 51 dB(A) in high temperatures. A sophisticated fan system that modifies speed in response to temperature facilitates cooling and ensures maximum heat dissipation (119.56 BTU/hour). With an MTBF of 70.75 years and an MTTR of 2 hours, the Huawei eKitEngine S220-24T4X 24 Port Gigabit WEB-Managed Switch boasts operational resilience and an availability of more than 99.999%. At altitudes up to 1800 meters, it operates dependably at temperatures between -5°C and +50°C, with a diminishing maximum temperature threshold at higher elevations. It works best in temperatures between -40°C and +70°C and between 5% and 95% relative humidity. Strong surge protection is provided, with shielding up to ±6 kV for the power supply and ±7 kV for the service ports. To ensure quick and dependable network job processing, the Huawei eKitEngine S220-24T4X 24 Port Gigabit WEB-Managed Switch also has a 1.1 GHz dual-core CPU, 2 GB of RAM, and 1 GB of flash storage. It is designed for robustness and consistent performance in a variety of networking applications, and it is certified for IP20 ingress protection.
