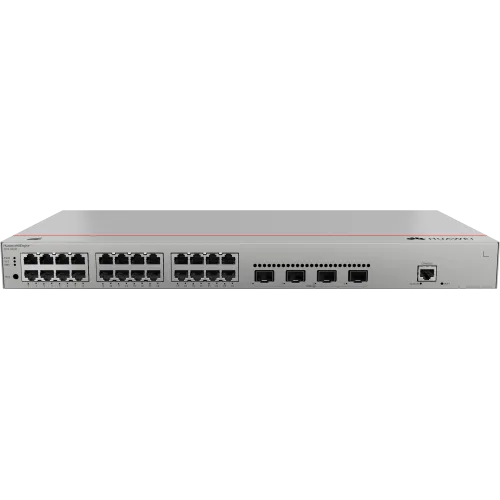

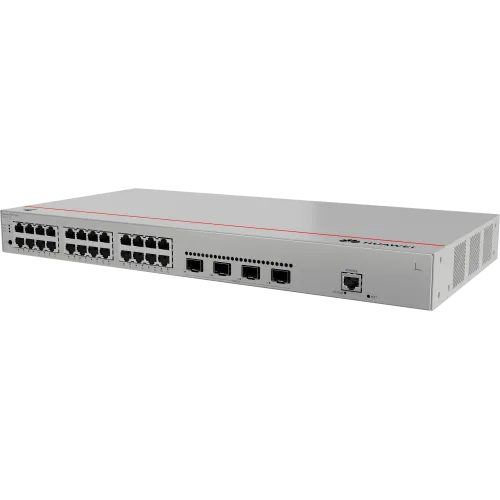

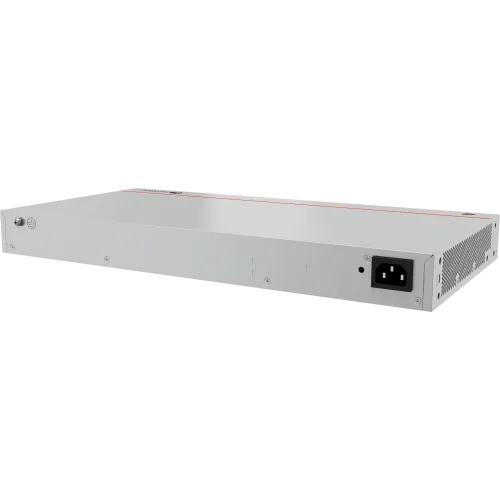

Huawei eKitEngine S310-24P4X 24 Port Gigabit PoE Managed Switch

The Huawei eKitEngine S310-24P4X 24-port Gigabit PoE managed switch is designed to provide high-performance networking. It has 24 downlink 10/100/1000BASE-T PoE+ ports, a 400W PoE power budget, and 4 uplink 10GE SFP+ ports, making it ideal for environments that require both data connectivity and power delivery over Ethernet. The switch has a normal heat dissipation of 126.65 BTU/hour, rising to 151.32 BTU/hour without PoE and 1657.92 BTU/hour at full PoE load. It can sustain a full load power consumption of 485.91W. High reliability is guaranteed by the Huawei eKitEngine S310-24P4X 24-port Gigabit PoE managed switch, which has an MTTR of two hours and availability greater than 0.99999. Under typical circumstances, it maintains noise levels at 49.3 dB(A) acoustic power and 37.3 dB(A) acoustic pressure thanks to its two fan modules for efficient air cooling and intelligent fan speed adjustment. With a temperature adjustment for higher altitudes, the gadget functions between -5°C and 50°C at elevations up to 1800 meters. Its storage temperature range is -40°C to 70°C. The Huawei eKitEngine S310-24P4X 24-port Gigabit PoE managed switch operates with dependability at altitudes of up to 5000 meters and in relative humidity ranges of 5% to 95% (non-condensing). Power is provided by an AC built-in power supply, which can accept high-voltage DC input at 240 V DC in addition to rated input voltages of 100-240 V AC at 50/60 Hz. The switch has a 1 GB flash memory and an RJ45 console connector for management. It also has strong surge protection on the power supply (±6 kV differential and common modes) and service ports (±7 kV). In addition to meeting EMC, safety, and manufacturing certifications, the eKitEngine S310-24P4X is certified with IP20 ingress protection, guaranteeing dependable and secure operation.
