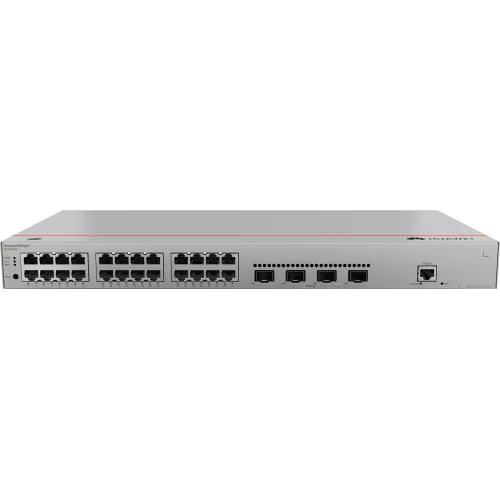

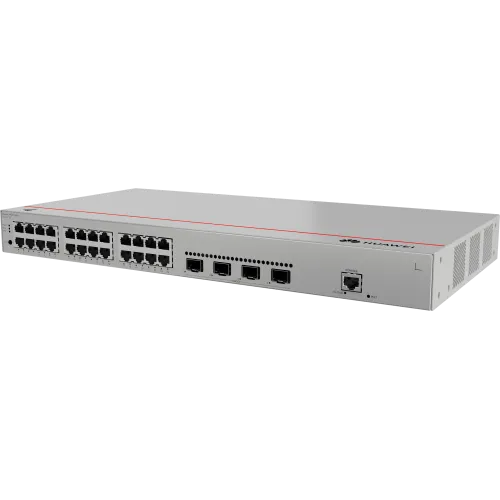

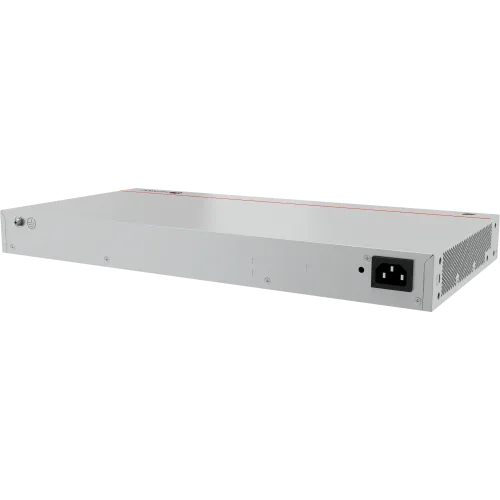

Huawei eKitEngine S310-24T4X 24 Port Gigabit Managed Switch

The Huawei eKitEngine S310-24T4X 24-port Gigabit managed switch has four uplink 10GE SFP+ connections and 24 downlink 10/100/1000BASE-T ports. Its strong switching capacity of 128 Gbps and a packet forwarding rate of 95 Mpps ensure effective and quick data transmission. With a maximum heat dissipation of 119.56 BTU/hour and a typical heat dissipation of 93.05 BTU/hour, the device operates at peak efficiency thanks to a single fan module that uses air cooling and adaptive fan speed regulation for efficient thermal management. The eKitEngine S310-24T4X, is built for excellent dependability, with an availability rate of more than 0.99999 and an MTTR of two hours. It ensures consistent performance even in difficult circumstances by operating within a temperature range of -5°C to 50°C at altitudes up to 1800 meters, with temperature adjustments for higher altitudes. The Huawei eKitEngine S310-24T4X 24-port Gigabit managed switch operates in non-condensing relative humidity levels of 5% to 95% and can withstand storage temperatures ranging from -40°C to 70°C. It can also be used for both operation and storage at altitudes of up to 5000 meters. This switch has an AC built-in power supply that can handle an input range of 90-264 V AC at 45-65 Hz, a maximum input current of 0.8 A, and a rated input voltage of 100-240 V AC at 50/60 Hz. It has an RJ45 console connector for easy management and 1 GB of flash memory. Strong surge protection is also offered by the Huawei eKitEngine S310-24T4X 24-port Gigabit managed switch, which has differential and common mode power supply protection rated at ±6 kV and service port protection rated at ±7 kV. The switch satisfies strict EMC, safety, and manufacturing certifications and has an IP20 ingress protection rating, making it a dependable option for effective and safe network control. At normal temperatures, the device emits 35 dB(A) of acoustic pressure and 47 dB(A) of acoustic power, meaning it runs at a low noise level.
