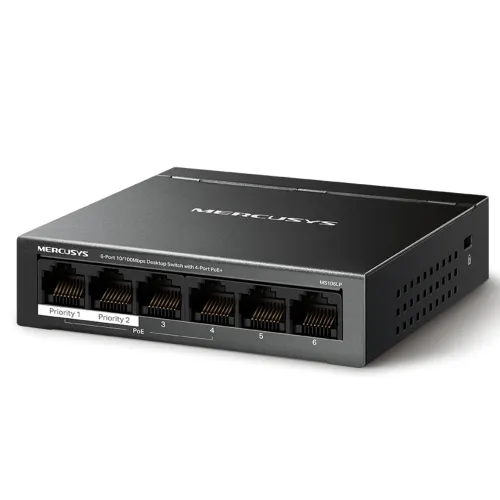

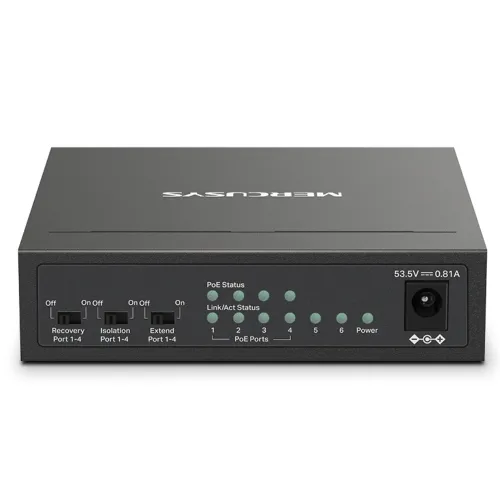

Mercusys MS106LP 6-Port 10/100Mbps PoE Desktop Switch

The Mercusys MS106LP is a reliable 6-port desktop switch designed for efficient network management. It delivers reliable connectivity with 6 auto-negotiation 10/100 Mbps ports and auto MDI/MDIX for easy configuration. Interestingly, four of these ports support powered devices because they have Power over Ethernet (PoE+) capabilities, which comply with 802.3 af/at regulations. The switch has a 40W PoE power budget that is split between Ports 1 and 4. Because it complies with IEEE 802.3x Flow Control standards, data transmission is optimized. The Mercusys MS106LP Switch may operate at half duplex 10/100 Mbps or full duplex 20/200 Mbps, making it flexible for a range of network needs. The 2 KB size of the Jumbo Frame feature improves the effectiveness of data transport. It presents network addresses effectively using a 2K Mac Address Table. With a 40W PD connected to it, the switch can consume up to 44.8W of electricity at 220V/50Hz when powered by an external adapter with an output of 53.5V/0.81A. It is an energy-efficient option for network configurations since the power consumption reduces to 1.87W when no powered devices are connected. All things considered, the Mercusys MS106LP is a useful addition for small to medium-sized networks because it integrates key features like PoE compatibility, flow management, and strong data rates.
