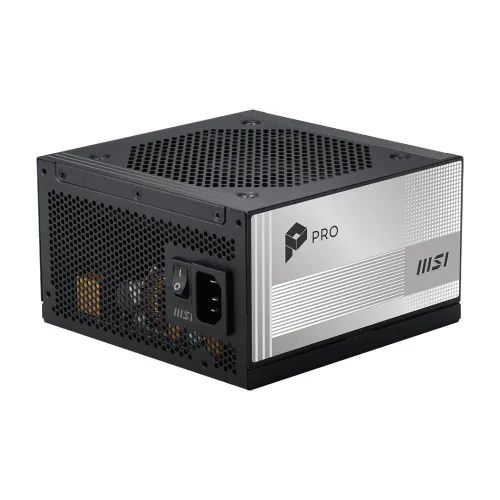

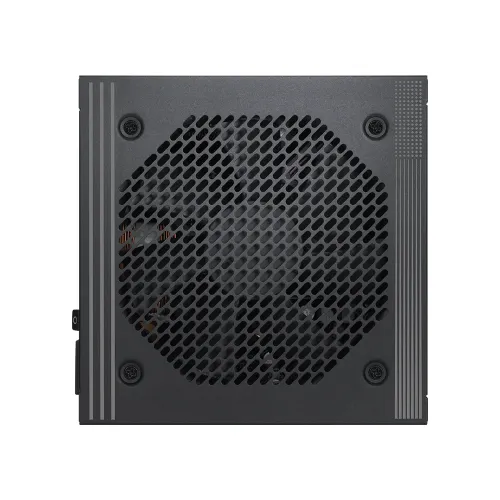

MSI PRO A1000PL PCIE5 1000W 80 Plus Platinum Fully Modular Power Supply

The MSI PRO A1000PL PCIE5 1000W 80 Plus Platinum Fully Modular Power Supply delivers premium power performance for high-end gaming rigs and professional workstations. Built under MSI's PRO series philosophy, this PSU combines impressive efficiency, exceptional build quality, and intelligent design. This PSU targets users who prioritize productivity, system stability, and long-term reliability in demanding computing environments. The MSI PRO A1000PL PCIE5 1000W Power Supply supports ATX 3.1 and PCIe 5.1 standards, ensuring full compatibility with the latest generation hardware.

ATX 3.1 and PCIe 5.1 Ready

This MSI 1000W Power Supply ensures your high-end GPU receives stable, uninterrupted power during intensive gaming and rendering sessions. ATX 3.1 readiness future-proofs your build against upcoming platform requirements. The MSI PRO A1000PL PCIE5 1000W Fully Modular Power Supply complies fully with Intel PSDG ATX 3.1 standards for verified next-generation compatibility. It handles up to 200% total power excursion and 300% GPU power excursion to manage transient spikes reliably. The 12V-2x6 (H++) connector meets PCIe CEM 5.1 standards and delivers up to 600W to support the most demanding graphics cards.

80 Plus Platinum Efficiency and Capacitor Quality

Active PFC further improves power factor and reduces energy waste across the full input voltage range of 100-240V at 50-60Hz. This MSI 80 Plus Platinum Power Supply for both performance and energy responsibility from their system. The MSI PRO A1000PL PCIE5 1000W 80 Plus Platinum Power Supply achieves up to 92% efficiency under typical load conditions. Platinum certification confirms lower energy consumption and reduced heat generation compared to lower-rated alternatives. The PSU uses 105°C main electrolytic capacitors, for stable performance and long-term reliability.

GPU Compatibility and Connector Configuration

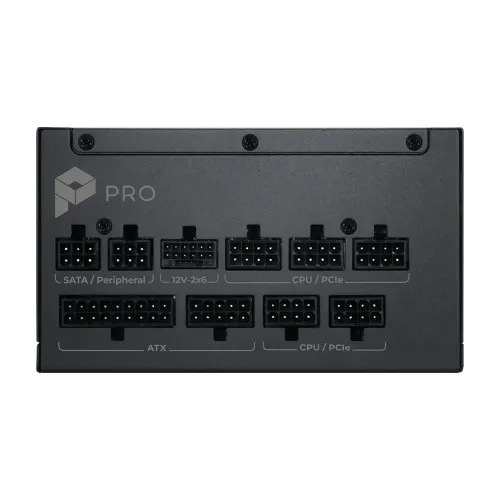

The MSI PRO A1000PL PCIE5 1000W 80 Plus Platinum Fully Modular Power Supply provides versatile GPU power connectivity across multiple connector configurations. It includes one PCIe 5.1 16-pin connector delivering up to 600W and three PCIe 6+2 pin connectors for wider graphics card compatibility. The PSU supports single 8-pin, dual 8-pin, and triple 8-pin VGA power configurations for flexible GPU pairing. Additional connectors include one 24-pin ATX, two 4+4 pin EPS, six SATA 15-pin, and two 4-pin peripheral connectors.

Fully Modular Design and Cable Quality

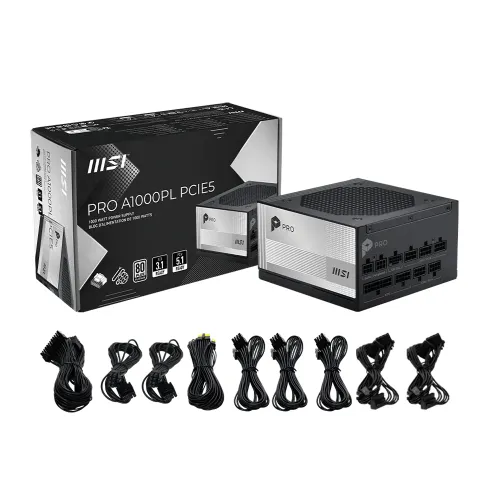

This MSI Fully Modular Power Supply features a fully modular cable system that allows users to connect only the cables their build requires. This approach eliminates cable clutter, improves airflow, and simplifies cable management inside any chassis. The MSI PRO A1000PL PCIE5 1000W PSU has all cables use UL-certified internal copper wires with embossed jacket external braiding for superior safety and durability. Nickel-plated copper alloy terminal connectors on all cable ends resist oxidation and maintain strong conductivity even during high-current surges. The dual-color 12V-2x6 cable design helps users visually confirm correct installation before powering on the system.
