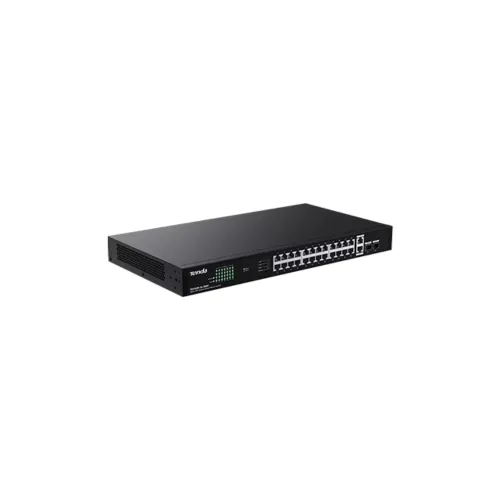

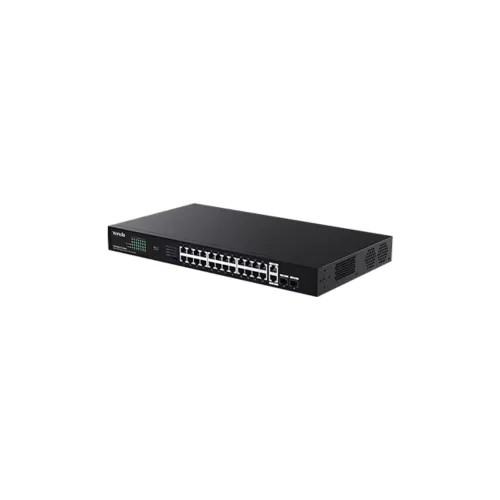

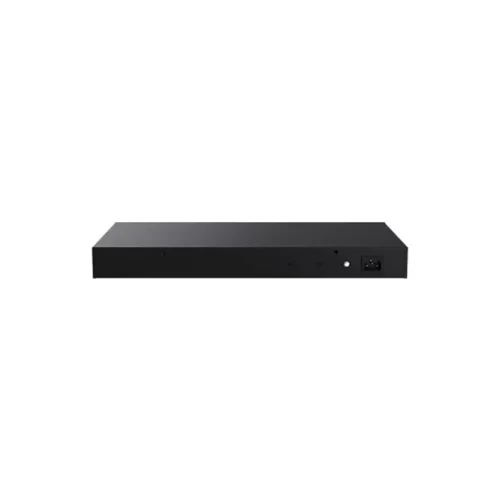

Tenda TEG1128P 24-Port Gigabit PoE+ 2SFP Unmanaged Switch

The Tenda TEG1128P is a reliable 24 port gigabit switch built for demanding networks. This PoE network switch delivers 230W of total power across 24 PoE+ ports. It features two Gigabit RJ45 uplinks plus two SFP slots for flexible expansion. The standard 1U rackmount design fits neatly into any server rack. Four operating modes support Standard, Priority, Extend, and VLAN configurations.

Port Configuration and Layout

This managed network switch offers 28 total ports for extensive connectivity. It includes 26 Gigabit RJ45 ports running at 10/100/1000 Mbps speeds. Two additional SFP ports support 1000 Mbps fiber connections. Uplink options combine two Gigabit RJ45 ports with two Gigabit SFP slots. This layout gives network administrators flexible expansion choices. The port arrangement suits both copper and fiber network environments. Such variety makes the Tenda TEG1128P 24 port Ethernet switch adaptable to different infrastructure needs.

PoE+ Power Delivery

Tenda TEG1128P supports IEEE 802.3af and 802.3at PoE standards. It provides 24 Gigabit PoE+ ports for powered device connections. Each port delivers up to 30W of output power individually. Total PoE budget reaches 230W across all connected devices. This power capacity supports cameras, access points, and VoIP phones simultaneously. The PoE+ network switch handles demanding power-hungry devices without performance loss. This makes it ideal for surveillance and wireless network deployments.

Switching Performance and Capacity

This Gigabit network switch delivers a switching capacity of 56 Gbps. Its forwarding rate reaches 41.67 million packets per second. The MAC address table stores up to 8,000 entries for network devices. Jumbo frame support handles larger data packets efficiently. These specifications ensure smooth performance under heavy network traffic. The TEG1128P  Ethernet switch processes data quickly across all connected ports simultaneously.

VLAN and QoS Features

The TEG1128P supports VLAN configuration through a DIP switch mode. This unmanaged network Gigabit switch also offers QoS through priority mode settings. Port isolation works within VLAN mode for network segmentation. These features help administrators organize and prioritize network traffic effectively. Users can separate device groups without complex configuration software. This makes the switch practical for basic network management needs.

Operating Modes and Plug & Play

This Tenda network switch offers four distinct operating modes. Standard mode provides basic switching for general network use. Priority mode applies QoS settings for traffic management. Extend mode increases transmission distance for longer cable runs. VLAN mode enables network segmentation through Tenda TEG1128P DIP switch settings.

Power Supply and Protection

The TEG1128P uses a built-in AC 100-240V power supply. Power consumption reaches up to 250W under full PoE load. This design eliminates the need for an external power adapter. The Gigabit switch includes 6kV lightning protection for added safety. This protection guards connected equipment against power surges and strikes.

Physical Design and Build

This 1U rackmount switch measures 440 by 178.8 by 44 millimeters. It weighs approximately 2.6 kilograms for stable rack installation. The design supports both rackmount and desktop placement options. A built-in fan helps manage heat during continuous operation. This cooling system supports reliable performance under full PoE load. The compact form factor saves space in crowded network cabinets.

Environmental Specifications

The Tenda TEG1128P operates within 0°C to 40°C temperature ranges. Humidity tolerance spans 10% to 90%, avoiding condensation buildup. These specifications support installation across varied indoor environments. The Unmanaged switch handles typical office and light industrial conditions reliably. Consistent environmental tolerance ensures stable long-term performance. This makes the PoE switch suitable for diverse deployment locations.

Standards Compliance

Tenda TEG1128P Ethernet switch complies with multiple IEEE networking standards. These include 802.3, 802.3u, 802.3ab, 802.3z, and 802.3x protocols. It also meets 802.3af and 802.3at standards for PoE delivery. This broad compliance ensures compatibility with diverse networking equipment. Administrators can integrate the PoE  switch into existing infrastructure confidently.
