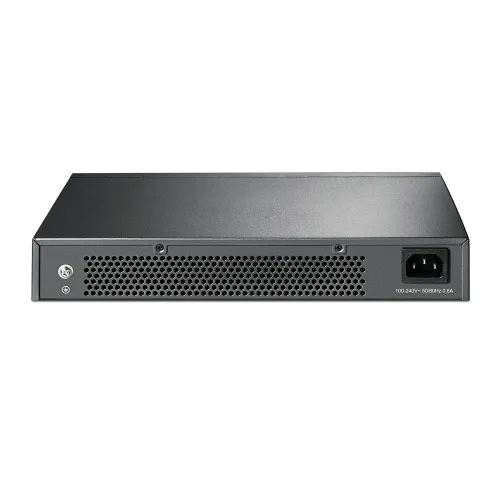

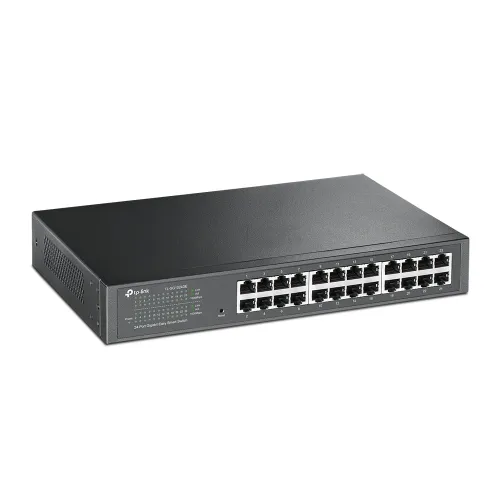

TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch

The TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch is a cost-effective network upgrade for simple management beyond basic plug-and-play switching. The Switch provides 24 10/100/1000 Mbps RJ45 ports with AUTO Negotiation and AUTO MDI/MDIX on every port for effortless connectivity. This TP-Link TL-SG1024DE Switch delivers a 48 Gbps switching capacity and a 35.7 Mpps packet forwarding rate for fast and reliable network throughput.

24 Gigabit Port

The TP-Link TL-SG1024DE 24-Port Gigabit Switch delivers 48 Gbps switching capacity and a 35.7 Mpps packet forwarding rate across all 24 Gigabit RJ45 ports simultaneously. An 8K MAC address table and 4.1 Mbit packet buffer memory ensure efficient traffic handling and minimal packet loss under busy network conditions. Jumbo frame support up to 10KB allows large data transfers across the network without fragmentation or performance degradation. The switch supports 10BASE-T, 100BASE-TX, and 1000BASE-T network media standards with cable runs up to 100 meters on appropriate UTP or STP cabling.

QoS and Traffic Management

The TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch supports Port-based, 802.1p, and DSCP priority modes with four priority queues for precise and flexible traffic prioritization. Rate Limiting and Storm Control features actively manage bandwidth usage and protect the network from broadcast, multicast, and unknown-unicast traffic flooding. These QoS tools ensure latency-sensitive applications like VoIP and video conferencing always receive sufficient network resources for smooth and jitter-free operation.

VLAN and Network Segmentation

The TP-Link TL-SG1024DE 24-Port Switch supports up to 32 VLANs simultaneously from a pool of 4096 VLAN IDs using MTU VLAN, Port-based VLAN, and 802.1Q Tag-based VLAN configurations. VLAN segmentation improves network security by isolating traffic between different departments, user groups, and device categories across the business network. This segmentation also reduces unnecessary broadcast traffic and improves overall network performance for all connected users simultaneously.
