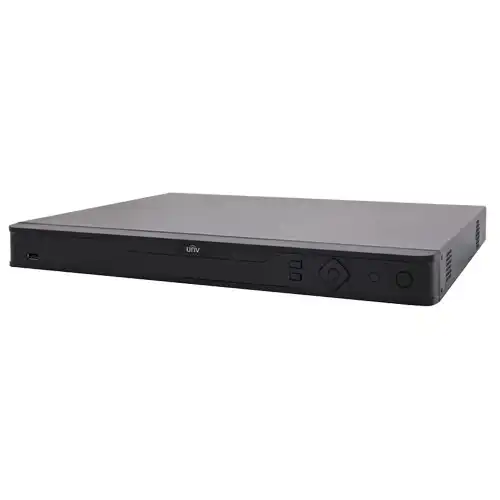

Uniview NVR304-16E-B 16 Channel 4K 4HDDs NVR

The Uniview NVR304-16E-B 16 Channel 4K 4HDDs NVR delivers advanced video recording for medium and large surveillance systems. It supports 16 IP camera inputs and records up to 12MP resolution for clear footage. Ultra 265, H.265, and H.264 compression reduce storage usage while maintaining image quality. With 160Mbps incoming and 320Mbps outgoing bandwidth, this recorder handles demanding monitoring requirements.

Supporting up to 16 IP channels, the Uniview NVR304-16E-B provides wide compatibility through ONVIF Profile S, Profile G, and Profile T. It features dual HDMI outputs and one VGA output, including 4K HDMI2 display support. Independent HDMI and VGA outputs provide flexible screen configurations. The system also supports 16-channel synchronous playback and multiple corridor display modes for efficient surveillance management.

Uniview NVR304-16E-B includes four SATA interfaces with support for up to 10TB per hard drive, providing large recording capacity. ANR technology improves storage reliability during temporary network interruptions. The 16 Channel NVR also supports cloud upgrades, two-way audio through an RCA interface, and decoding for multiple recording resolutions. Its capability includes playback of 12MP, 4K, 4MP, and Full HD video streams.

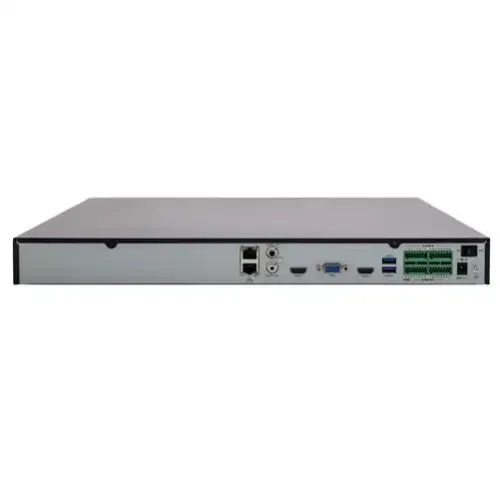

Built for stable operation, the Uniview NVR304-16E-B features dual Gigabit RJ45 network ports, RS485, USB 2.0, and USB 3.0 interfaces for fast connectivity. The recorder supports 128 remote users through protocols including P2P, DHCP, PPPoE, UPnP, and NTP. This 16 Channel NVR operates with a 12V DC power supply and consumes no more than 12W without hard drives. Its compact 440 × 344 × 44mm design allows convenient installation in professional security environments.
