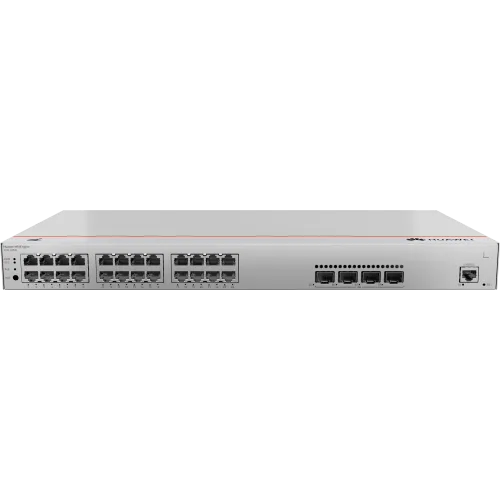

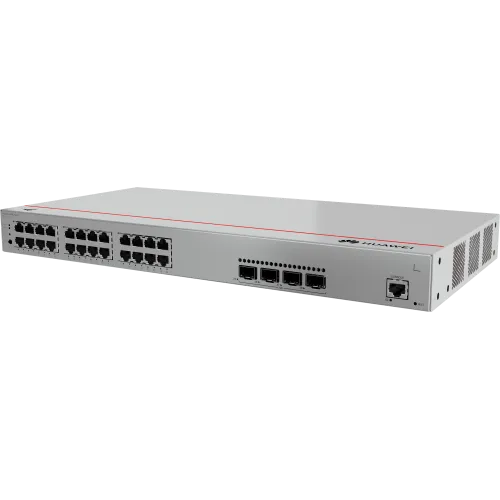

Huawei CloudEngine S310-24P4S 24 Port Gigabit PoE Managed Switch

The Huawei CloudEngine S310-24P4S 24-port Gigabit PoE Managed Switch is distinguished by features including diversified security control, flexible Ethernet networking, and intelligent stack (iStack). More performance and stronger service processing capabilities are provided by its support for several Layer 3 routing protocols. Their characteristics render them perfect for a multitude of application situations, including gigabit to the desktop and enterprise campus access. With 260 Gbit/s of switching capacity and 42 Mpps of packet forwarding rate, it has 24 x 10/100/1000BASE-T ports and 4 x GE SFP connectors, providing a wide range of connectivity options. With a maximum power consumption of 491 W without PoE and 491.66 W with full PoE load, the Huawei CloudEngine S310-24P4S 24 Port Gigabit PoE Managed Switch supports PoE+. Without PoE, its heat dissipation is 160.71 BTU/hour; with PoE enabled, it is 1677.59 BTU/hour. When operating at normal temperature, the device's noise level is 37.3 dB(A) in acoustic pressure and 49.3 dB(A) in acoustic power. One gigabyte of flash memory and two gigabytes of RAM are included with the Huawei CloudEngine S310-24P4S 24-port gigabit PoE-managed switch. The switch's IP20 classification indicates protection against dust but not against water, and the built-in fans provide effective cooling. With differential and common mode surge protection at ±7 kV for service port common mode and ±6 kV for power supply surge protection, it provides strong surge protection.
