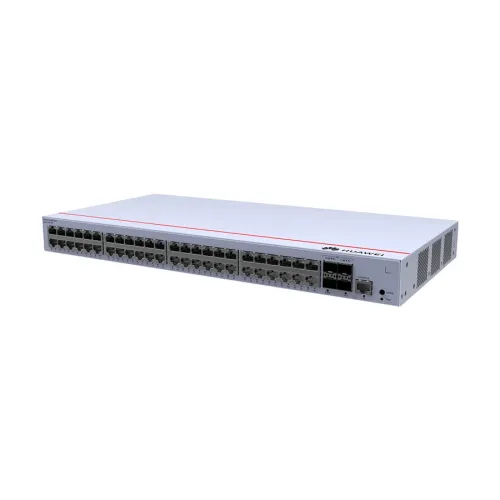

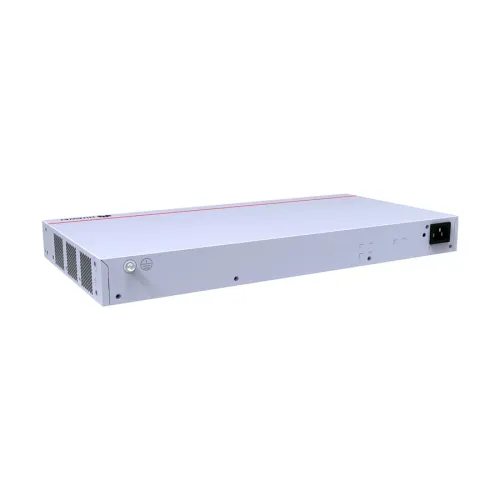

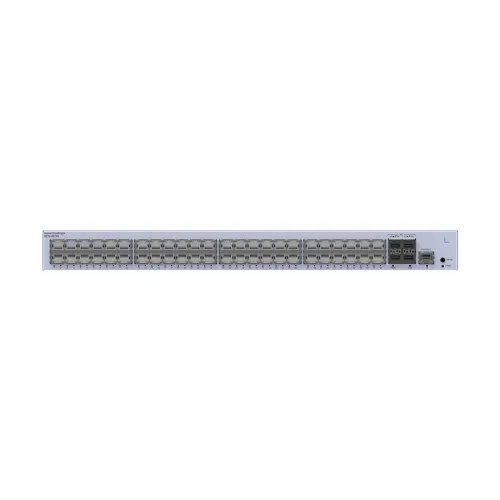

Huawei CloudEngine S310-48T4S 48 Port Gigabit Managed Switch

This Huawei CloudEngine S310-48T4S 48 Port Gigabit Managed Switch has four uplink GE SFP connections and 48 downlink 10/100/1000BASE-T ports. With a significant switching capacity of 260 Gbit/s and a packet forwarding rate of 78 Mpps, it is ideal for high-traffic network situations. The switch operates with a low noise level of 46.6 dB(A) acoustic power and 34.6 dB(A) acoustic pressure at normal temperatures. Its typical and maximum heat dissipation are 153.2 BTU/hour and 177.6 BTU/hour, respectively. With air cooling and adaptive fan speed regulation, the Huawei CloudEngine S310-48T4S 48 Port Gigabit Managed Switch has a single fan module that allows for efficient thermal management with intake from the left and front and exhaust from the right. The switch has an availability rate surpassing 0.99999 and an MTTR of two hours, indicating its dependability design. With a temperature adjustment for higher altitudes, it can function in temperatures between -5°C and 50°C at heights up to 1800 meters. It can work at altitudes of up to 5000 meters and provides a long-term working relative humidity range of 5% to 95% (non-condensing). The storage temperature of the device is between -40°C and 70°C. With an input range of 90-264 V AC at 45-65 Hz, a maximum input current of 1.6 A, and a rated input voltage of 100-240 V AC at 50/60 Hz, the switch has an AC built-in power supply. An RJ45 console port and 1 GB of flash memory are included in the Huawei CloudEngine S310-48T4S 48 Port Gigabit Managed Switch for storage and management, respectively. It offers strong surge protection for power supplies (±6 kV differential and common modes) and service ports (±7 kV). The switch satisfies EMC, safety, and manufacturing standards and has an IP20 ingress protection level. It is a dependable option for high-performance networking solutions because of its robust architecture and clever cooling system.
