ASRock B760M Pro-A DDR5 Micro ATX Motherboard

Name: ASRock B760M Pro-A DDR5 Micro ATX Motherboard
Brand: ASRock
Price: 16900 BDT
Availability: OutOfStock

Model: B760M Pro-AItem #: asrock-b760m-pro-a-motherboard

৳16,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0; ; 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. RAM type
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Overview

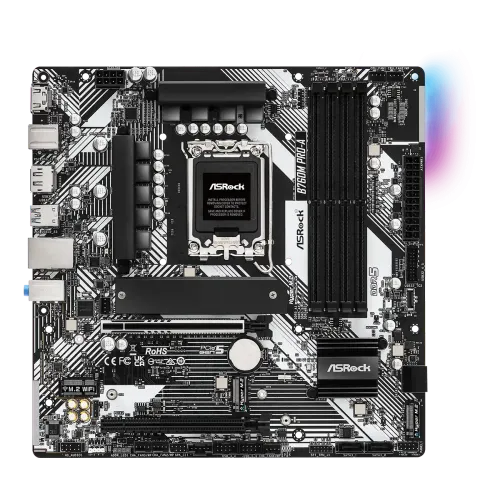

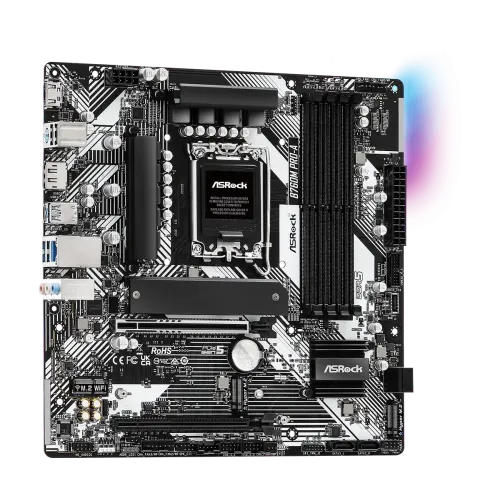

The ASRock B760M Pro-A DDR5 Micro ATX motherboard is a powerful and versatile platform designed to support the latest Intel Core processors, including the 14th, 13th, and 12th generations with the LGA1700 socket. It features a robust 7+1+1 power phase design, utilizing Dr.MOS for efficient VCore and GT performance. With four DDR5 DIMM slots, it supports dual-channel memory with speeds up to 7200+ MHz when overclocked, providing exceptional performance for gaming, content creation, and multitasking. This motherboard is equipped with a PCIe 5.0 x16 slot for the latest high-performance graphics cards, as well as additional PCIe 3.0 x16 and M.2 Key E slots for WiFi expansion. For graphics output, the board offers HDMI and DisplayPort options. Audio is powered by the Realtek ALC897 7.1-channel HD audio codec, ensuring crystal-clear sound quality. Storage and connectivity are well catered for, with four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) for fast storage solutions. USB connectivity is abundant, featuring two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front). Networking is handled by the Dragon 2.5G LAN, providing high-speed internet connectivity. The motherboard also supports ASRock's Auto Driver Installer, simplifying the setup process for users.

Specifications

Chipset: Intel B760
RAM type: Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0; ; 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Form factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760M Pro-A
Graphics — Graphics: - Intel Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; ; * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Expansion Slots — PCI: CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire

Show all 26 specifications

Highlights — Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Memory — Maximum Memory: 256GB
Basic Information — BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
Others — Special Features: Superb Productivity; - PCIe Gen5 (Graphics); - Dual Channel DDR5; Rock-Solid Durability; - 7+1+1 Power Phase, Dr.MOS for VCore+GT; Ultrafast Connectivity; - 2.5G LAN; EZ Update; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
Highlights — Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
Connector & Ports — USB (s): Chipset:; - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front); - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front); * All USB ports support ESD Protection
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User-Friendly UI; - Visual Network Usage Statistics; - Optimized Default Settings for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT)
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors; ; * Supports Intel Volume Management Device (VMD); Supports NVMe SSD as boot disks

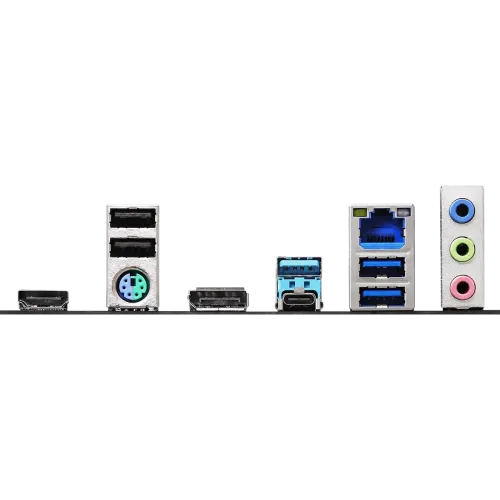

Connector & Ports — Internal I/O Ports: - 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone; ; Connector; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): - 1 x SPI TPM Header
