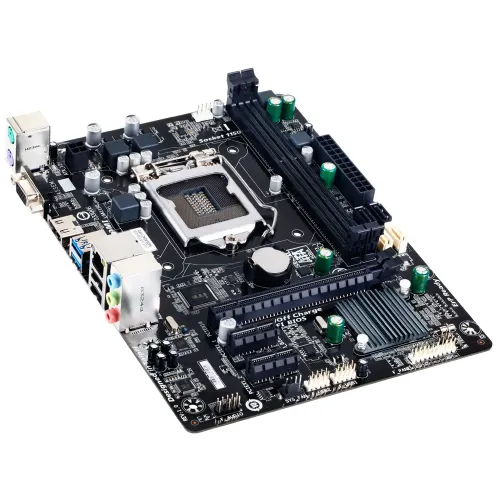

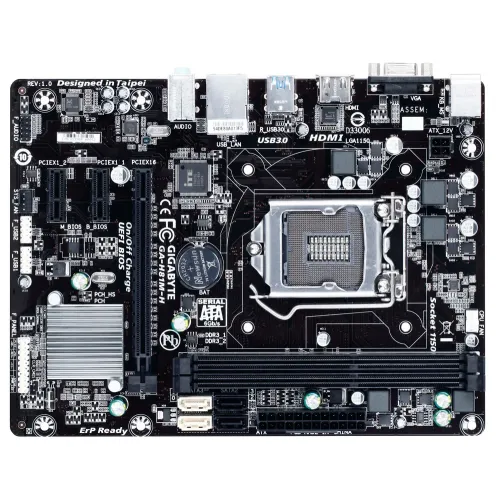

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard
Model: GA-H81M-HItem #: gigabyte-ga-h81m-h-motherboard
৳8,800৳8,900Save 1%
In stockverified
Quantity
1
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H81 Express Chipset
- Dual channel memory architecture; Support for DDR3 1600/1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 22.6cm x 17cm
Overview
The GIGABYTE GA-H81M-H Motherboard is a powerful and feature-rich platform designed to support 4th Generation Intel Core processors. It incorporates GIGABYTE's Ultra Durable Technology, ensuring efficient performance and extended motherboard lifespan. The GIGABYTE GA-H81M-H Motherboard boasts a GIGABYTE UEFI BIOS for streamlined configuration, USB 3.0 ports with GIGABYTE 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge for convenient USB device charging even when the PC is off. High ESD Protection safeguards both USB and LAN ports, while the inclusion of HDMI and D-SUB ports on the rear panel offers versatile display connectivity options. The use of solid capacitors for CPU VRM design ensures stability and durability. The GIGABYTE GA-H81M-H Motherboard present a unique blend of cutting-edge features, including support for the latest Intel 8 Series platform, offering enhanced performance and power efficiency. With features like Humidity Protection, Power Failure Protection, and Electrostatic Protection, this motherboard is designed to withstand various challenges. The integration of GIGABYTE's LAN Optimizer and EasyTune technologies, along with Smart Fan 2 for optimal cooling, provides efficient management and customization options. The GIGABYTE App Center offers easy access to a range of GIGABYTE apps for seamless user experience, and the BIOS app allows BIOS updates from within Windows.
Specifications
- Chipset
- Intel H81 Express Chipset
- RAM type
- Dual channel memory architecture; Support for DDR3 1600/1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 22.6cm x 17cm
- Memory — Type
- DDR3
- Memory — Slots
- 2 x 1.5V DIMM sockets
- Highlights — Model
- GA-H81M-H
- Graphics — Graphics
- Integrated Graphics Processor - Intel HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200; 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz; * Support for HDMI 1.4a version.
- Expansion Slots — PCI
- 1 x PCI Express x16 slot, running at x16; 2 x PCI Express x1 slots
Show all 24 specificationsShow fewer
- Highlights — Features
- LAN with high ESD Protection
- Memory — Maximum Memory
- 16 GB
- Basic Information — BIOS
- 1 x 32 Mbit flash; Use of licensed AMI EFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI
- Basic Information — Audio
- Realtek ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel
- Others — Special Features
- Support for Q-Flash; Support for Xpress Install; Support for APP Center; * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.; @BIOS; EasyTune; EZ Setup; USB Blocker; Smart TimeLock; Smart Recovery 2; Support for ON/OFF Charge
- Highlights — Supported RAM
- 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
- Connector & Ports — USB (s)
- Chipset:; 2 x USB 3.0/2.0 ports on the back panel; 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers);
- Graphics — Max Shared Memory
- 1 GB
- Highlights — Graphics Output
- 1 x D-Sub, 1 x HDMI
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (10/100/1000 Mbit)
- Basic Information — Supported CPU
- Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package; L3 cache varies with CPU
- Connector & Ports — Supported Storage
- Chipset:; 2 x SATA 6Gb/s connectors (SATA3 0/1); 2 x SATA 3Gb/s connectors (SATA2 2/3);
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 2 x SATA 6Gb/s connectors; 2 x SATA 3Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 2 x USB 2.0/1.1 headers; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 Years
Compare with similar products
 This itemGIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard |  GIGABYTEGIGABYTE A520M K V2 AM4 Micro ATX Motherboard |  AsusAsus PRIME A520M-R AM4 micro ATX Motherboard |  GIGABYTEGIGABYTE B450M K AMD AM4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳8,800 | ৳8,500 | ৳8,700 | ৳8,800 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | GIGABYTE | GIGABYTE | Asus | GIGABYTE |
| RAM type | Dual channel memory architecture; Support for DDR3 1600/1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*; Dual channel memory architecture; * ECC memory (ECC mode) support varies by CPU | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 22.6cm x 17cm | Micro ATX Form Factor; 23.3cm x 19.8cm | micro-ATX Form Factor; 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) | Micro ATX Form Factor; 24.4cm x 19.5cm |
| Chipset | Intel H81 Express Chipset | AMD A520 | A520 | AMD B450 |
| M.2 slots | — | 1 | 1 | — |
