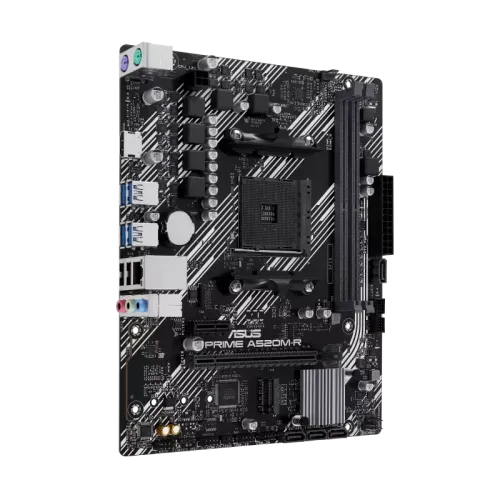

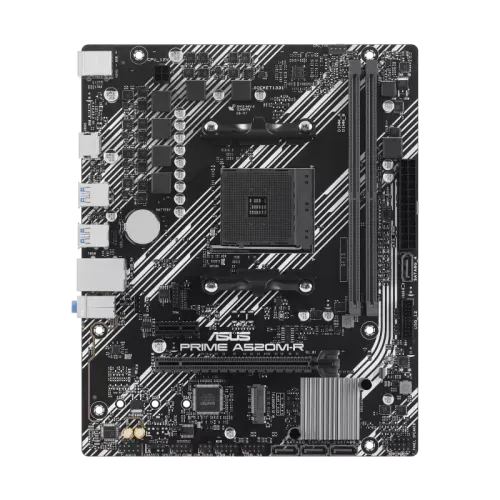

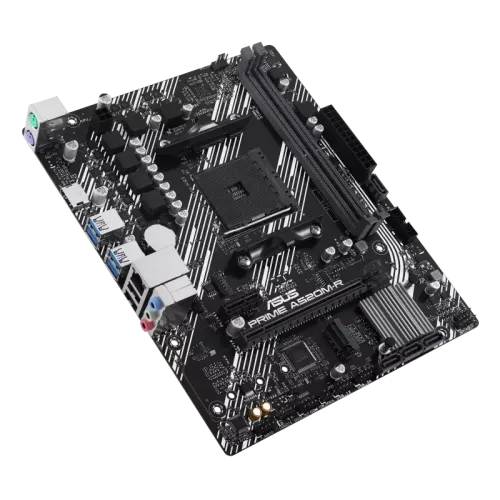

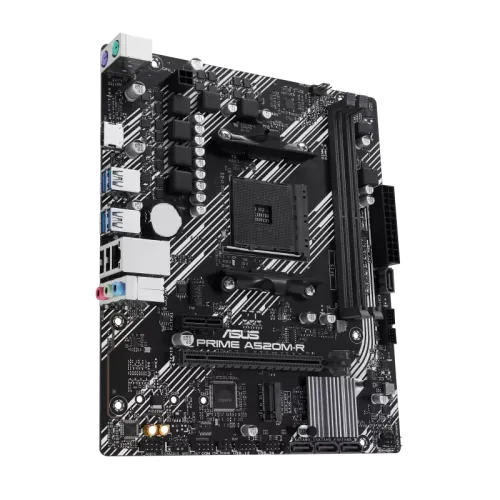

Asus PRIME A520M-R AM4 micro ATX Motherboard
Model: PRIME A520M-RItem #: asus-prime-a520m-r-motherboard
৳8,700৳9,110Save 5%
In stockverified
Quantity
1
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- A520 Chipset
- 1 M.2 slots
- DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*; Dual channel memory architecture; * ECC memory (ECC mode) support varies by CPU RAM type
- micro-ATX Form Factor; 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )
Overview
The ASUS PRIME A520M-R AM4 Micro ATX Motherboard is a dependable and feature-packed ASUS Motherboard tailored for users seeking a stable platform for productivity, light gaming, and everyday computing tasks. As part of the reliable Asus 520 Motherboard family, it utilizes the AMD A520 chipset to support Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors, making it a future-ready Asus AMD motherboard built for long-term performance. The board’s compact Micro ATX form factor accommodates tight builds while still offering robust features including dual DDR4 DIMM slots with support for up to 64GB RAM at speeds up to DDR4 5100 (OC), ensuring responsive multitasking. Storage expansion is seamless with one high-speed M.2 slot (PCIe 3.0 x4 & SATA) alongside four SATA 6Gb/s ports, giving users flexibility for both fast boot drives and ample data storage. The Asus PRIME A520M-R Motherboard includes a PCIe 3.0 x16 slot for GPUs and a PCIe 3.0 x1 slot for add-in cards, making it a versatile base for customization. Integrated Realtek 1Gb Ethernet provides reliable connectivity, and HDMI output supports crisp 4K visuals at 60Hz. USB ports are well-distributed across the board’s front and rear I/O, with a mix of USB 5Gbps and USB 2.0 interfaces for device support. Audio quality is elevated with Realtek 7.1 Surround Sound, premium capacitors, and layered PCB design for clean signals. Thermal regulation is handled by a passive PCH heatsink and ASUS Fan Xpert control software, giving users customizable cooling profiles. Additional protection features like ASUS 5X Protection III enhance hardware longevity, while Q-Design elements simplify installation for DIY builders. Compatible with both Windows 10 and 11 64-bit systems, the ASUS PRIME A520M-R Motherboard blends value, reliability, and versatility into one compact and capable Asus AMD motherboard that’s ideal for building efficient desktop setups.
Specifications
- Chipset
- A520
- M.2 slots
- 1
- RAM type
- DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*; Dual channel memory architecture; * ECC memory (ECC mode) support varies by CPU
- Form factor
- micro-ATX Form Factor; 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM;
- Highlights — CPU
- AMD AM4 Socket for AMD Ryzen 5000 / 4000 / 3000 Series
- Highlights — Model
- PRIME A520M-R
Show all 27 specificationsShow fewer
- Graphics — Graphics
- 1 x HDMI port**; * Graphics specifications may vary between CPU types
- Highlights — Output
- 1 x HDMI
- Expansion Slots — PCI
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode); AMD A520 Chipset; 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 1 x M.2, 4 x SATA 6Gb/s ports
- Memory — Maximum Memory
- 64GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features:; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x Audio jacks; ;
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; AI Suite 3; - Performance And Power Saving Utility; TurboV EVO; EPU; DIGI+ VRM; Fan Xpert; - EZ update; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core; - Stainless-steel back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design
- Highlights — Supported RAM
- 2 x DIMM ,Max 64GB, Up to 5100(OC)
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- Connector & Ports — Supported Storage
- 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes);
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power Related; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; Storage Related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 03-Year Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemAsus PRIME A520M-R AM4 micro ATX Motherboard |  GIGABYTEGIGABYTE A520M K V2 AM4 Micro ATX Motherboard |  GIGABYTEGIGABYTE B450M K AMD AM4 Micro ATX Motherboard |  GIGABYTEGIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳8,700 | ৳8,500 | ৳8,800 | ৳8,800 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | Asus | GIGABYTE | GIGABYTE | GIGABYTE |
| M.2 slots | 1 | 1 | — | — |
| RAM type | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*; Dual channel memory architecture; * ECC memory (ECC mode) support varies by CPU | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Dual channel memory architecture; Support for DDR3 1600/1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | micro-ATX Form Factor; 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) | Micro ATX Form Factor; 23.3cm x 19.8cm | Micro ATX Form Factor; 24.4cm x 19.5cm | Micro ATX Form Factor; 22.6cm x 17cm |
| Chipset | A520 | AMD A520 | AMD B450 | Intel H81 Express Chipset |
