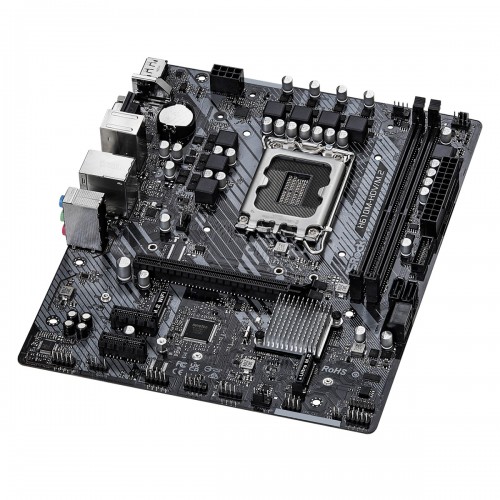

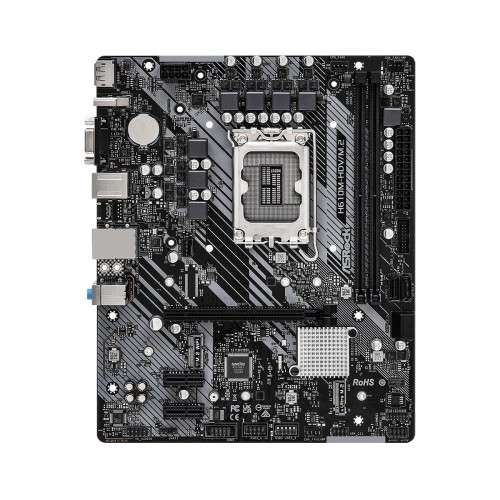

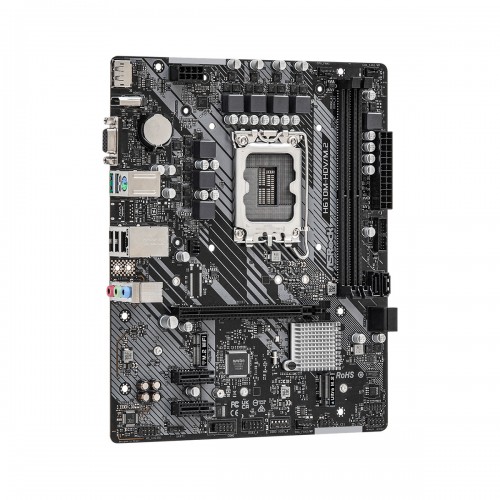

ASRock H610M-HDV/M.2 Micro ATX Motherboard
Model: H610M-HDV/M.2Item #: asrock-h610m-hdv-m-2-motherboard
৳10,200
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0 RAM type
- - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm; - Solid Capacitor design
Overview
The ASRock H610M-HDV/M.2 Motherboard supports 14th Gen, 13th Gen, and 12th Gen Intel Core Processors (LGA1700). It features a 6-phase power design and supports DDR4 at 3200 MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced.
PCIe Gen3 x4 Ultra M.2 interface
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32 GB/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections via the M.2 (Key E) slot.
3 Graphics Outputs
It comes with a D-Sub, DisplayPort, and HDMI combo. It supports HDMI 2.1 TMDS compatibility with a maximum resolution of 4K x 2K (4096 x 2160) at 60 Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz and 5K (5120x3200) at 120Hz. D-Sub with a maximum resolution of up to 1920x1200 at 60 Hz. It comes with support for HDCP 2.3, HDMI 2.1 TMDS compatibility, and DisplayPort 1.4 ports.
The ASRock H610M-HDV/M.2 Motherboard has 03 years warranty.
Specifications
- Chipset
- Intel H610
- RAM type
- - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0
- Form factor
- - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm; - Solid Capacitor design
- Memory — Type
- Dual Channel DDR4 Memory Technology
- Memory — Slots
- 2 x DDR4 DIMM Slots
- Highlights — Model
- H610M-HDV/M.2
- Graphics — Graphics
- - Intel Xe Graphics Architecture (Gen 12); - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
- Expansion Slots — PCI
- - 1 x PCIe Gen4x16 Slot; - 2 x PCIe Gen3x1 Slots; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Show all 24 specificationsShow fewer
- Memory — Maximum Memory
- 64GB
- Basic Information — BIOS
- - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
- Connector & Ports — HDMI
- 1 x HDMI Port
- Basic Information — Audio
- - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec); - Supports Surge Protection
- Connector & Ports — Audio
- - HD Audio Jacks: Line in / Front Speaker / Microphone
- Others — Special Features
- ASRock Super Alloy; - Premium Power Choke; - Sapphire Black PCB; - High Density Glass Fabric PCB; ASRock Ultra M.2 (PCIe Gen3x4 & SATA3); ASRock Full Spike Protection (for all USB, Audio, LAN Ports); ASRock Live Update & APP Shop
- Connector & Ports — USB (s)

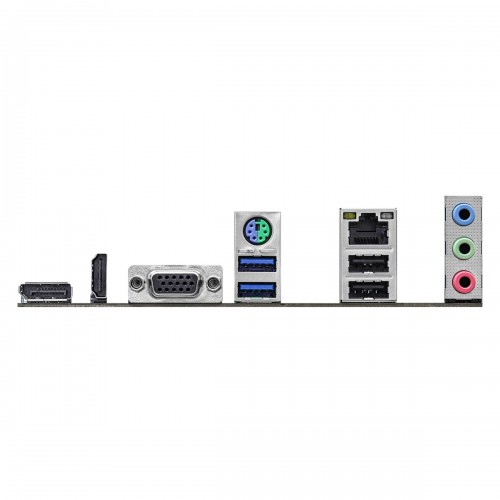

- - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- Connector & Ports — D-Sub (s)
- 1 x D-Sub Port
- Connector & Ports — LAN Port (s)
- - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports UEFI PXE
- Basic Information — Supported CPU
- - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700); - Digi Power design; - 6 Power Phase design; - Supports Intel Hybrid Technology; - Supports Intel Turbo Boost Max 3.0 Technology
- Connector & Ports — Display Port (s)
- 1 x DisplayPort 1.4
- Highlights — Graphics Output Options
- HDMI, DisplayPort, D-Sub
- Connector & Ports — Supported Storage
- - 4 x SATA3 6.0 Gb/s Connectors; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- Connector & Ports — Internal I/O Ports
- - 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Compare with similar products
 This itemASRock H610M-HDV/M.2 Micro ATX Motherboard |  ColorfulColorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard |  AsusASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard |  GIGABYTEGIGABYTE H610M H V3 DDR4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,200 | ৳10,200 | ৳10,200 | ৳10,200 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | ASRock | Colorful | Asus | GIGABYTE |
| RAM type | - Supports DDR4 non-ECC, un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0 | - DDR4-3200/2933/2666/2400MHz memory; - support dual-channel memory technology | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm; - Solid Capacitor design | M-ATX; 245mm x 245mm | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) | Micro ATX Form Factor; 22.3cm x 19.3cm |
| Chipset | Intel H610 | Intel H610 | Intel H610 Chipset | Intel H610 Express Chipset |
| M.2 slots | — | — | 1 | — |
