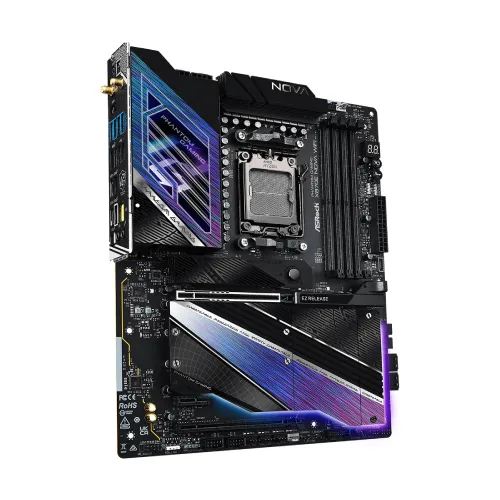

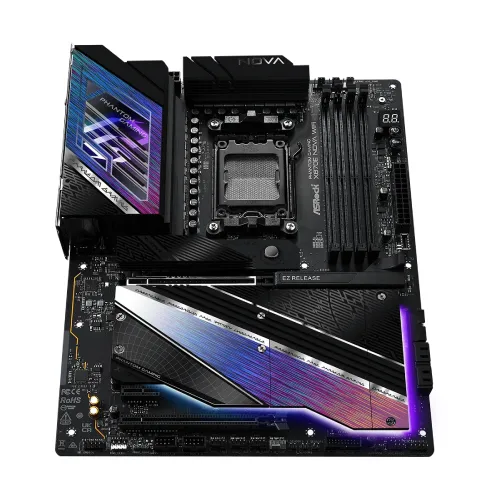

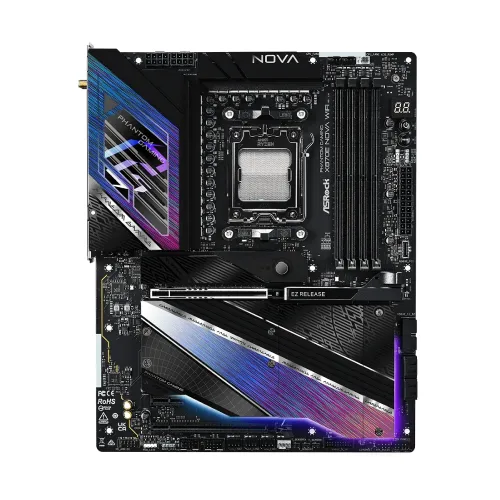

ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard
Model: X870E Nova WiFiItem #: asrock-x870e-nova-wifi-am5-ddr5-motherboard
৳55,000৳55,500Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD X870E Chipset
- 1 M.2 slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB; 2oz Copper PCB
Overview
The ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard is a next-generation platform engineered for high-performance gaming, content creation, and productivity. Designed to support AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket, this advanced ASRock X870E Nova WiFi Motherboard delivers top-tier processing power and efficiency. Built on the robust AMD X870E chipset, it features a durable 8-layer, 2oz copper PCB and a 20+2+1 power phase design with 110A SPS for VCore+SOC, complemented by an enlarged heatsink armor for superior thermal performance. The ASRock X870E Nova WiFi AM5 DDR5 Motherboard supports up to 256GB of ultra-fast DDR5 memory (8200+ MHz OC) via four DIMM slots, with full support for XMP and EXPO profiles, making it ideal for enthusiasts and overclockers. Integrated graphics via AMD RDNA are supported through HDMI 2.1 (4K @120Hz) and dual USB4 Type-C ports (up to 8K @30Hz, HDCP 2.3), delivering exceptional visual output. Storage performance is unmatched, with one PCIe Gen5x4 M.2 slot, three PCIe Gen4x4 Hyper M.2 slots, one SATA/PCIe Gen3x2 M.2 slot, and four SATA3 ports (including two via ASMedia ASM1061), along with RAID 0/1/10 support. Expansion is equally powerful, with a PCIe 5.0 x16 slot for graphics and additional PCIe 3.0 slots for peripherals. The ASRock X870E Nova WiFi also offers top-tier connectivity including 5 Gigabit LAN (Realtek RTL8126), blazing-fast Wi-Fi 7 (802.11be tri-band), Bluetooth 5.4, and MU-MIMO support for seamless online experiences. Rear I/O is loaded with 2x USB4 Type-C (40 Gb/s), 5x USB 3.2 Gen2 Type-A, 3x USB 3.2 Gen1, HDMI 2.1, SPDIF, gold-plated audio jacks, and buttons for BIOS Flashback and Clear CMOS. The Realtek ALC4082 codec ensures high-definition 7.1 channel audio. Premium features such as Lightning Gaming Ports, Ultra USB Power, 20K-hour black capacitors, and a server-grade low-loss PCB make the ASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard exceptionally durable and reliable. With bundled utilities like Polychrome SYNC, Phantom Gaming Tuning, and a Full HD UEFI BIOS, the ASRock X870E Nova WiFi AM5 DDR5 Motherboard is the perfect foundation for a high-end, future-ready PC build.
Specifications
- Chipset
- AMD X870E
- M.2 slots
- 1
- RAM type
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- Form factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB; 2oz Copper PCB
- Memory — Type
- Dual Channel DDR5 Memory Technology
- Memory — Slots
- 4 x DDR5 DIMM Slots
- Highlights — Model
- X870E Nova WiFi
- Graphics — Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*; - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Highlights — Features
- 5 Gigabit LAN, 802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 1 x HDMI 2.1
- Connector & Ports — RAID
- - Supports RAID 0 and RAID 1 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Basic Information — Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Connector & Ports — Audio
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- Others — Bundled Software
- Software; - ASRock Motherboard Utility (Phantom Gaming Tuning); - ASRock Phantom Gaming LAN Software; - ASRock Polychrome SYNC; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
- Others — Special Features
- Superb Productivity; - PCIe Gen5 (Graphics, M.2); - Dual Channel DDR5; - USB4 Type-C Ports (40 Gb/s); Rock-Solid Durability; - Server-Grade Low-Loss PCB; - 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor; - Flexible Integrated I/O Shield; - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors); Ultrafast Gaming; - 5G LAN, 802.11be Wi-Fi 7 Module; - ASRock Lightning Gaming Ports; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer
- Highlights — Supported RAM
- 4x DDR5, Up to 8200+(OC), Max 256GB
- Connector & Ports — USB (s)
- CPU:; - 2 x USB4 Type-C (Rear); - 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)); - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front); - 6 x USB 2.0 (2 Rear, 4 Front)
- Highlights — Graphics Output
- 1x HDMI 2.1, 2 x USB4, support HDCP 2.3 and max
- Connector & Ports — LAN Port (s)
- - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s; - Realtek RTL8126
- Basic Information — Supported CPU
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- Connector & Ports — Supported Storage
- CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes; - 2 x SATA3 6.0 Gb/s Connectors; ASMedia ASM1061:; - 2 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports

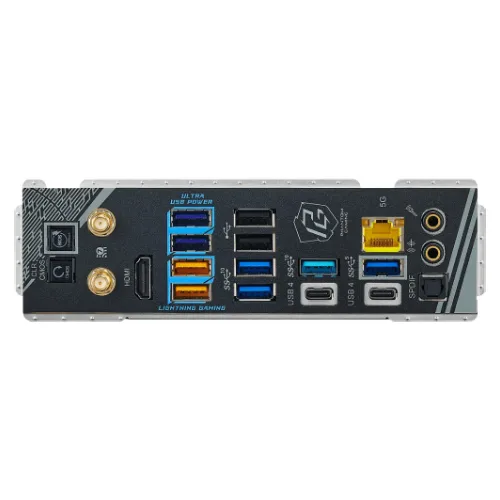

- Rear Panel I/O:; - 2 x Antenna Ports; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 2 x USB4 Type-C Ports (40 Gb/s)*; - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.); - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.); - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x Clear CMOS Button; - 1 x BIOS Flashback Button; - 1 x Line Out Jack (Gold Audio Jack); - 1 x Microphone Input Jack (Gold Audio Jack)
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- - 802.11be 2x2 Wi-Fi 7 Module; - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be; - Supports 2.4GHz/5GHz/6GHz* frequency band; - Supports 160MHz channel bandwidth with 6GHz* frequency band; - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.4; - Supports MU-MIMO
Compare with similar products
 This itemASRock X870E Nova WiFi AM5 DDR5 ATX Motherboard |  AsusASUS TUF GAMING Z890-PRO WIFI LGA 1851 ATX Gaming Motherboard |  AsusAsus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard |  MSIMSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳55,000 | ৳53,200 | ৳54,800 | ৳55,500 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | ASRock | Asus | Asus | MSI |
| M.2 slots | 1 | 4 | 4 | — |
| RAM type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Dual Channel DDR5 |
| Form factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB; 2oz Copper PCB | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX; 304.8mmx243.84mm |
| Chipset | AMD X870E | Intel Z890 Chipset | AMD X870 Chipset | AMD X670 |
