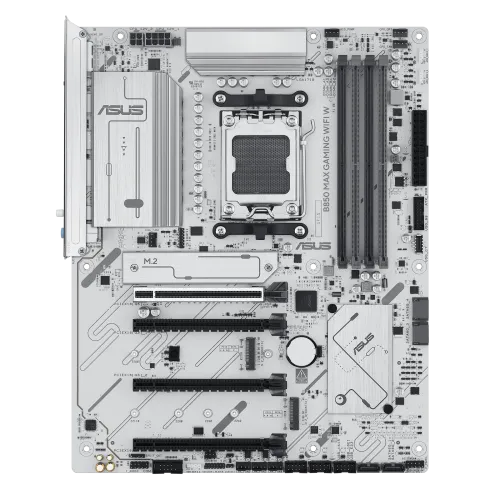

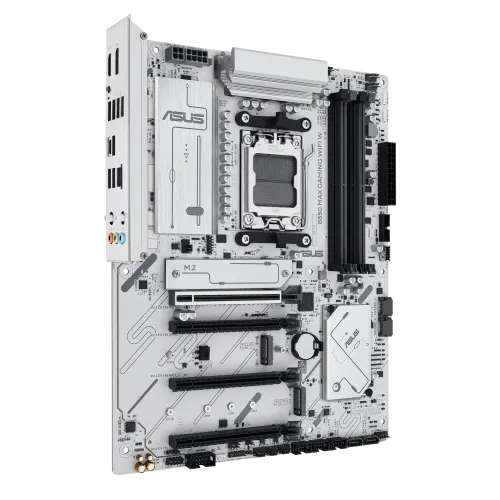

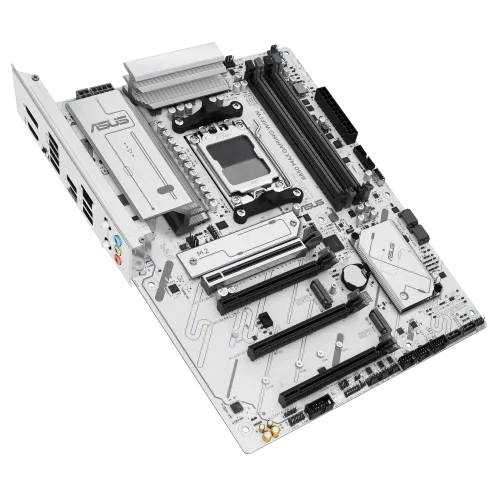

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Model: B850 MAX GAMING WIFI WItem #: asus-b850-max-gaming-wifi-w-motherboard
৳35,900৳36,000Save 0%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 9000 M.2 slots
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual-channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard is a performance-driven solution designed for gamers and power users who demand cutting-edge features and next-gen compatibility. Built on the powerful AMD B850 chipset, this ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors through the latest AM5 socket, making it a future-proof investment. The Asus B850 MAX GAMING WIFI W ATX Motherboard supports up to 256GB DDR5 RAM across four DIMM slots, delivering exceptional memory speeds up to 8000+ MT/s (OC) and full support for ECC and non-ECC unbuffered memory, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles. Designed for high-performance expansion, the Asus B850 MAX GAMING WIFI W Motherboard includes PCIe 5.0 and PCIe 4.0 slots, and three ultra-fast M.2 slots, alongside four SATA 6Gb/s ports with full RAID support. For superior graphics, it offers HDMI 2.1 and dual USB4 Type-C ports, capable of supporting 4K@60Hz output, ideal for immersive visual experiences. Connectivity is top-tier with Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2, ensuring fast and reliable networking. The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard also excels in audio with Realtek 7.1 Surround Sound High Definition Audio CODEC, jack-detection, and premium audio components for high-fidelity playback up to 24-bit/192 kHz. The rear I/O panel provides 10 USB ports, including 2 USB4 (40Gbps) and fast-charging USB Type-C options, while the internal I/O offers additional fan headers, RGB headers, USB headers, and TPM support. Designed for effortless DIY builds, it features ASUS Q-Design, pre-mounted I/O shield, BIOS FlashBack, and robust thermal solutions like VRM and M.2 heatsinks. Integrated with ASUS Armoury Crate, Aura Sync, and multiple software utilities, the Asus B850 MAX GAMING WIFI W delivers a complete package of performance, reliability, and aesthetics, making it a top choice for gamers and content creators building with the AM5 platform.
Specifications
- Chipset
- AMD B850 Chipset
- M.2 slots
- 9000
- RAM type
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual-channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- B850 MAX GAMING WIFI W
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI™ port; Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; Supports max. 8K@30Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (support x4 mode); 2 x PCIe 3.0 x16 slots (support x1 mode)
- Highlights — Features
- Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; ASUS AI Advisor; ASUS Driver Hub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers
- Connector & Ports — USB (s)
- Rear USB (Total 8 ports); 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 9 ports); 1 x USB 5Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; USB Type-C power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1 x HDMI port, 1 x DisplayPort
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode); AMD B850 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports; Specifications vary by CPU types.
- Connector & Ports — Internal I/O Ports

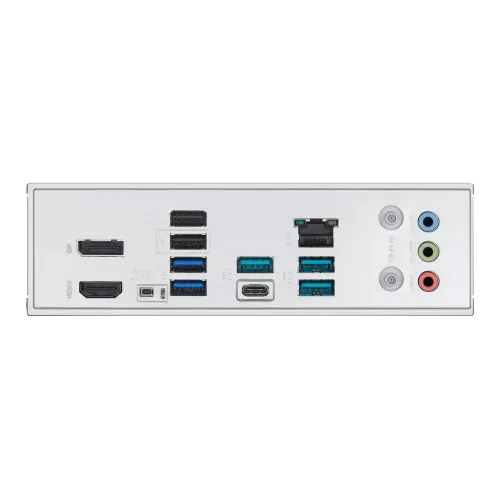

- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connectors; 1 x 4-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header; 1 x Thunderbolt™ (USB4®) header; Back Panel I/O Ports:; 1 x USB 10Gbps port (1 x USB Type-C®); 3 x USB 10Gbps ports (3 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band; Bluetooth® v5.3; WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.; The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1 pin)
Compare with similar products
 This itemAsus B850 MAX GAMING WIFI W AM5 ATX Motherboard |  GIGABYTEGigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard |  AsusAsus TUF GAMING B850M-PLUS WIFI micro-ATX Motherboard |  MSIMSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳35,900 | ৳35,800 | ৳35,900 | ৳36,000 |
| Availability | In stock | Out of stock | In stock | In stock |
| Brand | Asus | GIGABYTE | Asus | MSI |
| M.2 slots | 9000 | 1 | 3 | 4 |
| RAM type | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual-channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. | max. 256GB, DDR5; Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 30.5cm x 24.4cm | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX; 243.84mmx304.8mm |
| Chipset | AMD B850 Chipset | Intel Z890 Chipset | AMD B850 | INTEL Z790 |
