Shop all Asus products

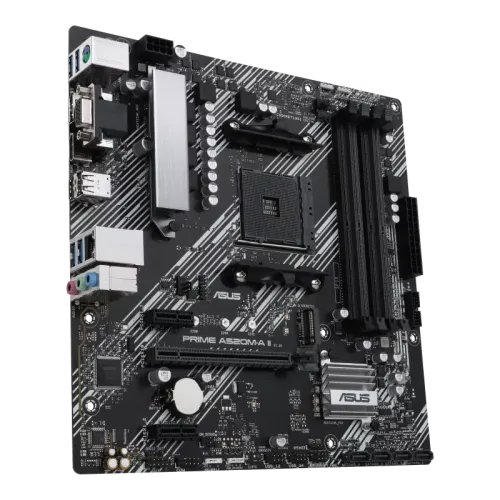

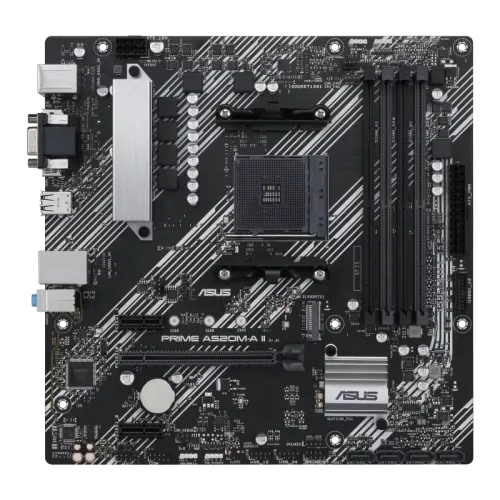

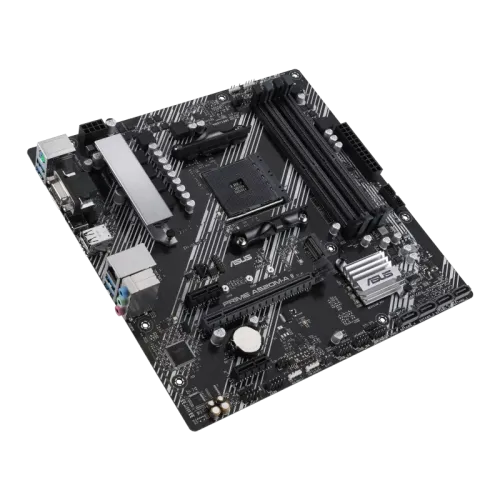

Asus PRIME A520M-A II AM4 micro ATX Motherboard
Model: PRIME A520M-A IIItem #: asus-prime-a520m-a-ii-am4-motherboard
৳11,100৳11,300Save 2%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- A520 Chipset
- 1 M.2 slots
- 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory RAM type
- microATX; 24.4cm x 24.4cm Form factor
Overview
The Asus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience.
Specifications
- Chipset
- A520
- M.2 slots
- 1
- RAM type
- 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
- Form factor
- microATX; 24.4cm x 24.4cm
- Memory — Type
- Dual Channel DDR4 Memory Technology
- Memory — Slots
- 2 x DIMM;
- Highlights — CPU
- AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
- Highlights — Model
- PRIME A520M-A II
Show all 28 specificationsShow fewer
- Graphics — Graphics
- Graphics specifications may vary between CPU types
- Highlights — Output
- 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
- Expansion Slots — PCI
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1 slots
- Highlights — Features
- 5X Protection III
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMITM port
- Basic Information — Audio
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks Back Panel; 1 x Front Panel Audio header (AAFP); ;
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; AI Suite 3; - Performance And Power Saving Utility; TurboV EVO; EPU; Digi+ VRM; Fan Xpert 2+; - EZ update; ASUS CPU-Z; AI Charger; DAEMON Tools; Norton Anti-virus software (Free Trial version); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ; ASUS Q-Design; - ASUS Q-DIMM; - ASUS Q-Slot; ; ASUS Thermal Solution; - VRM heatsink design; AURA Sync; - AURA RGB headers; - Addressable Gen 2 RGB headers
- Connector & Ports — USB (s)

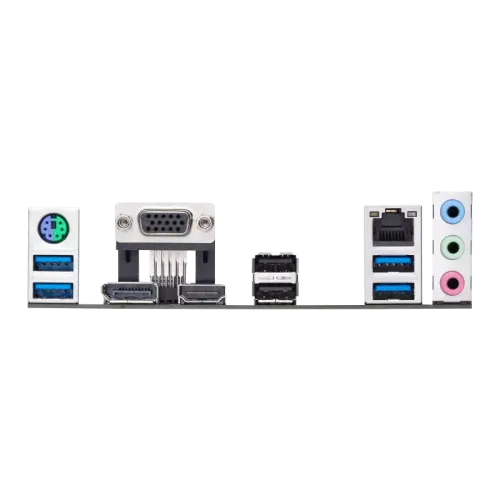

- Rear USB: Total 6 ports; 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); ; Front USB: Total 6 ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); AMD A520 Chipset; 4 x SATA 6Gb/s ports; Support Raid 0, 1, 10
- Connector & Ports — Internal I/O Ports
- Fan and cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; ; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; ; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; ; USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; ; Miscellaneous; 2 x AURA Addressable Gen 2 header; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 03-Year Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header;
Compare with similar products

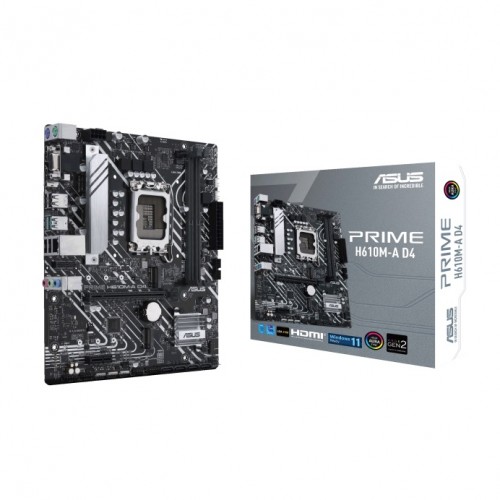

 This itemAsus PRIME A520M-A II AM4 micro ATX Motherboard |  MSIMSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard |  AsusASUS PRIME H610M-A D4 mATX Motherboard |  AsusAsus PRIME H610M-CS DDR5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳11,100 | ৳10,900 | ৳11,000 | ৳11,200 |
| Availability | In stock | In stock | Upcoming | In stock |
| Brand | Asus | MSI | Asus | Asus |
| M.2 slots | 1 | 1 | — | 1 |
| RAM type | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory | Intel Core i7/ i9; -Supports up to DDR4 2933 MHz; Intel Core i5 and below; -Supports up to DDR4 2666 MHz; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) |
| Form factor | microATX; 24.4cm x 24.4cm | Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) | mATX Form Factor; 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm ) | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Chipset | A520 | Intel H410 | Intel H610 Chipset | Intel H610 Chipset |
