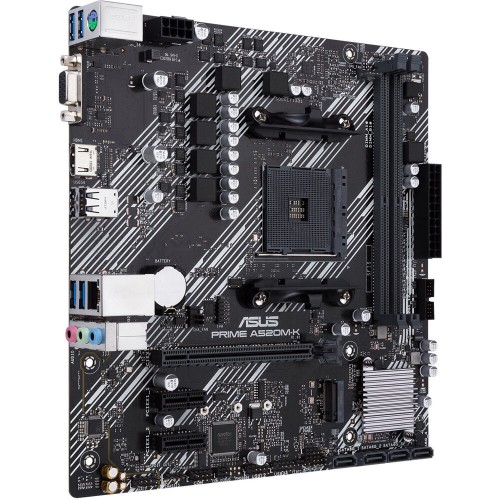

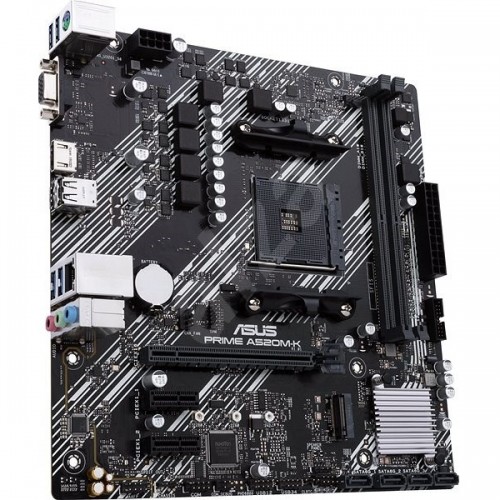

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Name: Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Brand: Asus
Price: 9000 BDT
Availability: InStock

Model: Asus Prime A520M-KItem #: asus-prime-a520m-k-amd-motherboard

৳9,000~~৳9,900~~Save 9%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A520 Chipset
4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory RAM type
mATX Form Factor; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Overview

Asus Prime A520M-K AM4 Micro ATX AMD Motherboard

Boasting a robust power design, ASUS Prime series is expertly engineered with comprehensive cooling solutions and intelligent tuning options. Prime A520M series motherboards offer daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Prime A520M motherboard packs flexible tools to tune every aspect of user's system, enabling user to tweak performance settings maximizing the productivity. It provides intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Coupled with EPU, it has flexible cooling control system that decreases chassis fan speeds below to the default minimum to keep user's system whisper-quiet when performing light tasks. And the Digi+ voltage regulator module delivers real time control over voltage droop, automatically switching frequency and power-efficiency settings. Additionally, Prime A520M-K is designed with an array of hybrid fan headers and features comprehensive cooling controls while owning multiple temperature sources and smart protection. It also provides all the fundamentals to boost daily productivity. This supports high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. Its audio system features audio shielding, separate layer for left and right tracks which offers an immersive sound. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. To mention, SafeSlot Core is the ASUS-exclusive PCIe slot which is available here. The exclusive Prime A520M-K comes with 03 years of warranty.

Specifications

Chipset: AMD A520
RAM type: 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Form factor: mATX Form Factor; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Memory — Type: Dual Channel DDR4 Memory Technology
Memory — Slots: 2 x DIMM;
Highlights — Model: Asus Prime A520M-K
Expansion Slots — PCI: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1
Memory — Maximum Memory: 64GB, DDR4

Show all 22 specifications

Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI 2.1 (4K@60Hz)
Connector & Ports — RAID: Support Raid 0, 1, 10
Connector & Ports — Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature :; - Audio Shielding; - Dedicated audio PCB layers; * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; AI Suite 3; - Performance And Power Saving Utility; TurboV EVO; EPU; Digi+ VRM; Fan Xpert 2+; - EZ update; ASUS CPU-Z; AI Charger; DAEMON Tools; Norton Anti-virus software (Free Trial for 60 days); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - ASUS DIGI+ VRM; - ASUS LANGuard; - ASUS Overvoltage Protection; - ASUS SafeSlot Core; - ASUS Stainless-Steel Back I/O; ASUS Q-Design; - ASUS Q-DIMM; - ASUS Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design
Connector & Ports — USB (s): Rear USB Port ( Total 6 ); 4 x USB 3.2 Gen 1 port(s)(4 x Type-A); 2 x USB 2.0 port(s)(2 x Type-A); ; Front USB Port ( Total 6 ); 2 x USB 3.2 Gen 1 port(s)(2 x Type-A); 4 x USB 2.0 port(s)(4 x Type-A)
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — LAN Port (s): Realtek RTL8111H 1GB Ethernet; ASUS LANGuard
Basic Information — Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Connector & Ports — Supported Storage: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports; AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors :; 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD A520 Chipset :; 4 x SATA 6Gb/s port(s),
Connector & Ports — Internal I/O Ports: Internal I/O Ports; 1 x CPU Fan connector(s); 1 x Chassis Fan connector(s); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 4 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header; 1 x Speaker connector; ; Back I/O Ports; 1 x PS/2 keyboard/mouse combo port(s); 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.2 Gen 1 (blue) Type-A; 2 x USB 2.0; 3 x Audio jack(s)
Warranty Information — Manufacturing Warranty: 03 Years Warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header

Compare with similar products

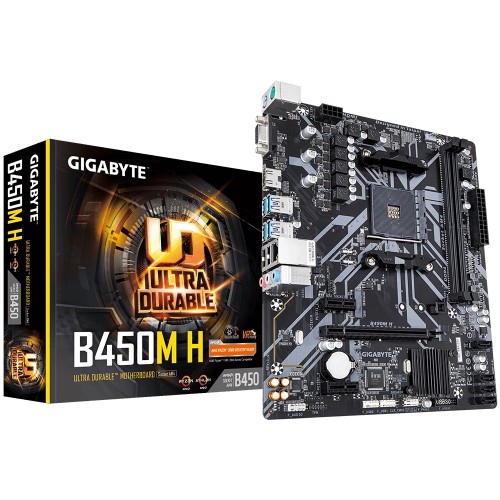

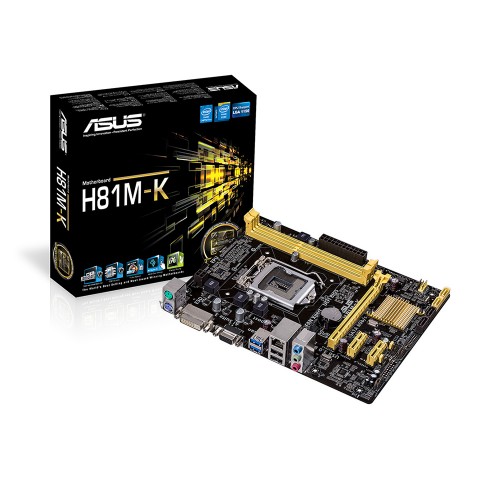

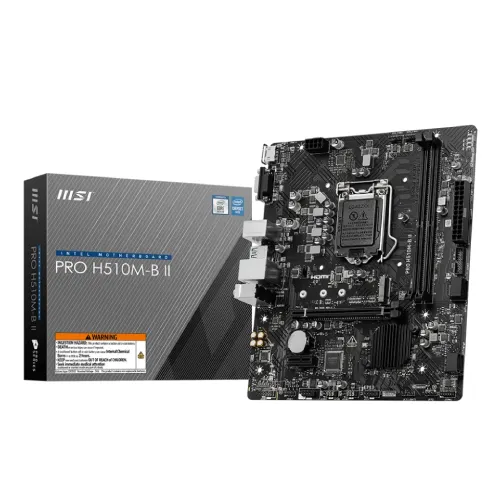

	This itemAsus Prime A520M-K AM4 Micro-ATX AMD Motherboard	AsusAsus H81M-K 4th Gen Motherboard	GIGABYTEGIGABYTE B450M H AMD AM4 Micro-ATX Motherboard	MSIMSI PRO H510M-B II 10th Gen Micro-ATX Motherboard
Price	৳9,000	৳8,900	৳9,000	৳9,000
Availability	In stock	Out of stock	Out of stock	Out of stock
Brand	Asus	Asus	GIGABYTE	MSI
RAM type	4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory	1600/1333/1066 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)	Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Memory Support 2933/ 2666/ 2400/ 2133 MHz; Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU; Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
Form factor	mATX Form Factor; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )	uATX Form Factor; 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )	Micro ATX Form Factor: 24.4cm x 20.5cm	mATX; 202mmx236mm
Chipset	AMD A520	Intel H81	AMD B450	INTEL H470
M.2 slots	—	—	1	1
