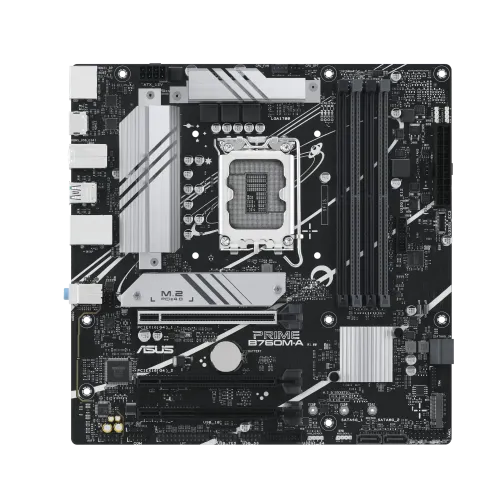

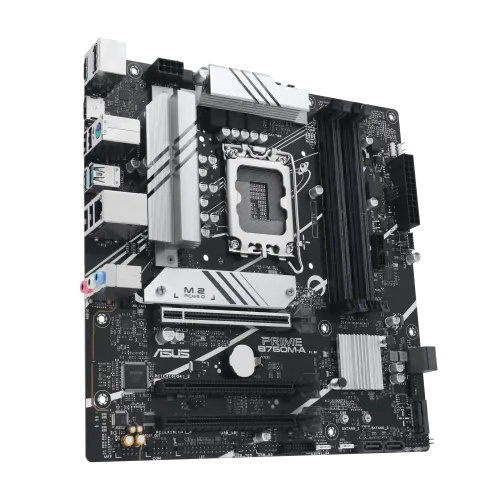

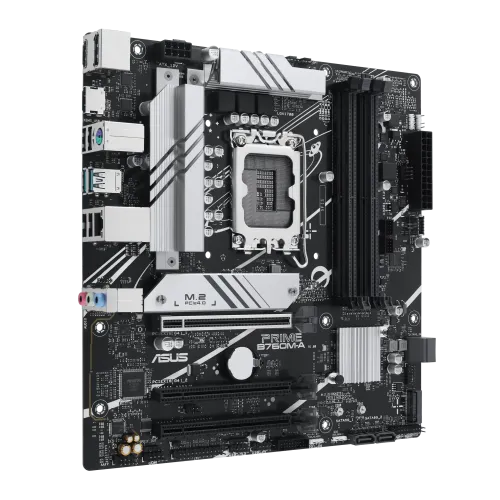

Asus PRIME B760M-A mATX Motherboard

Name: Asus PRIME B760M-A mATX Motherboard
Brand: Asus
Price: 20500 BDT
Availability: OutOfStock

Model: PRIME B760M-AItem #: asus-prime-b760m-a-motherboard

৳20,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
2 M.2 slots
4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Overview

The Asus PRIME B760M-A is a microATX motherboard for Intel's LGA 1700 socket that offers a flexible foundation for developing powerful and feature-rich computer systems. This motherboard, designed for 14th, 13th, and 12th Gen Intel processors, assures compatibility with a wide selection of CPUs, giving consumers freedom in selecting their chosen processor. The strength of this motherboard is its many connection choices. PCIe 4.0 compatibility assures speedy data transfer speeds, making it perfect for high-performance graphics cards and storage devices. Additionally, two M.2 slots are available for high-speed NVMe SSDs, providing for faster data access and shorter load times. The Realtek 2.5Gb Ethernet offers quick and stable network access, while the rear USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C connector offer simple and high-speed peripheral connectivity. The Asus PRIME B760M-A prioritizes cooling, including VRM heatsinks, an M.2 heatsink, and a PCH heatsink to maintain ideal temperatures during strenuous workloads. The integration of hybrid fan headers and Fan Xpert 2+ technology allows customers to precisely tailor and manage the cooling of their system. The motherboard has proprietary memory technologies such as ASUS Enhanced Memory Profile II and ASUS OptiMem II, which optimize memory performance and stability for improved system responsiveness. The Aura Sync RGB Lighting provides a touch of elegance to the system for consumers who value aesthetic customization. Synchronization with compatible RGB LED strips and other Aura Sync-capable gear is enabled by onboard Addressable Gen 2 headers and an Aura RGB header, allowing users to construct a coherent and visually appealing lighting system. The Asus PRIME B760M-A is a feature-rich mATX motherboard with powerful performance, extensive connections, effective cooling, and configurable aesthetics, making it a great choice for anyone wishing to construct a high-quality and visually pleasing system.

Buy Asus PRIME B760M-A mATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Chipset
M.2 slots: 2
RAM type: 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRIME B760M-A
Graphics — Graphics: 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

Show all 26 specifications

Expansion Slots — PCI: Intel 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x16 slot (supports x1 mode)
Highlights — Features: 1 x Realtek 2.5Gb Ethernet
Memory — Maximum Memory: Max. 128GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 2 x HDMI port
Connector & Ports — RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; AI Suite 3; - Digi+ VRM; - PC Cleaner; ASUS CPU-Z; Norton Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
Connector & Ports — USB (s): Rear USB (Total 6 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 10 ports); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port
Highlights — Graphics Output: 1 x DisplayPort, 2 x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet;
Basic Information — Supported CPU: Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

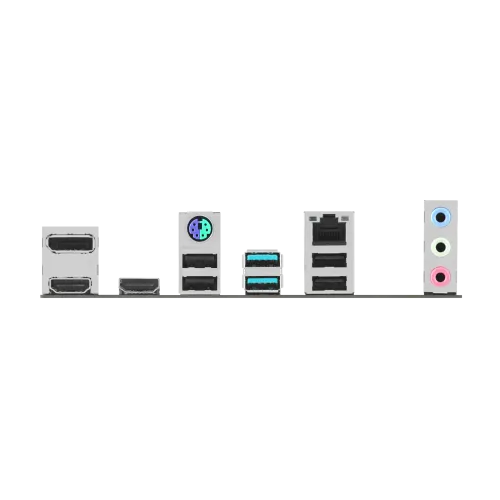

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; Fan and Cooling-related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; ; Back Panel I/O Ports; 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMITM ports; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Warranty Information — Manufacturing Warranty: 3 years warranty

Compare with similar products

	This itemAsus PRIME B760M-A mATX Motherboard	MSIMSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard	GIGABYTEGigabyte B840M DS3H WIFI6 AMD AM5 mATX Motherboard	GIGABYTEGIGABYTE B760M GAMING X mATX Motherboard
Price	৳20,500	৳20,100	৳20,300	৳20,800
Availability	Out of stock	Out of stock	Out of stock	Out of stock
Brand	Asus	MSI	GIGABYTE	GIGABYTE
M.2 slots	2	—	1	—
RAM type	4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 7200+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5400+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )	ATX; 243.84mmx304.8mm	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	Intel B760 Chipset	AMD B650	AMD B840	Intel B760 Express Chipset
