Asus PRIME N100I-D D4 Mini-ITX Motherboard
Model: PRIME N100I-D D4Item #: asus-prime-n100i-d-d4-motherboard
৳12,800৳12,900Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; * We recommend that you use 16GB or less memory module. RAM type
- Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17cm x 17cm)
Overview

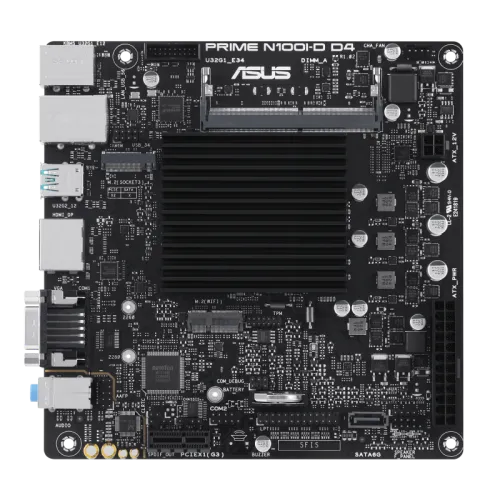

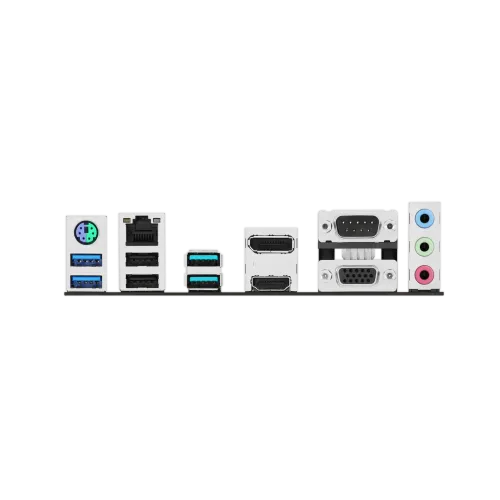

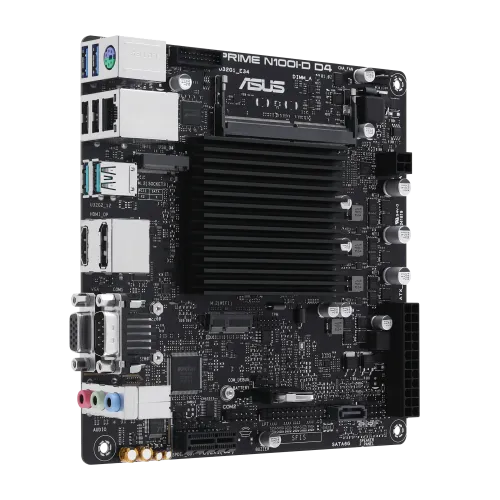

The Asus PRIME N100I-D D4 Mini-ITX motherboard is a low-power, fan-less solution designed for the Intel Processor N100, combining essential features and connectivity options to support various computing needs. It is equipped with a PCIe 3.0 x1 slot for additional expansion capabilities and offers versatile display outputs including DisplayPort, HDMI, and VGA. For connectivity, the motherboard includes a rear USB 3.2 Gen 2 port for high-speed data transfer, front USB 3.2 Gen 1 ports, and a 1Gb Ethernet port for reliable wired network connections. Storage options are comprehensive, featuring a 16Gbps M.2 slot for ultrafast storage solutions and SATA 6 Gbps ports for traditional storage devices. The motherboard supports legacy applications with its M.2 WIFI slot and LPT and COM ports, which allow for easy integration of wireless networking. These ports are designed for industrial use. A CPU heatsink built to sustain system temperature without the need for extra fans is part of the cooling system, guaranteeing silent operation. It has a COM debug header for improved serviceability, which makes troubleshooting and support easier during the building and maintenance procedures. The PRIME N100I-D D4, a member of the ASUS Prime series, has a strong power architecture, extensive cooling choices, and intelligent tuning options for user-friendly software and firmware-based performance optimization. The Intel Processor N100's performance is optimized by this painstakingly designed motherboard, giving PC builders and do-it-yourselfers a dependable and flexible platform. This motherboard provides an optimal combination of necessary features and connectivity choices for creating a small home server, high-end desktop computer, or industrial PC.
Buy Asus PRIME N100I-D D4 Mini-ITX Motherboard from the best Motherboard Shop in BD
Specifications
- RAM type
- 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; * We recommend that you use 16GB or less memory module.
- Form factor
- Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17cm x 17cm)
- Memory — Type
- DDR4
- Memory — Slots
- 1 x SO-DIMM
- Highlights — Model
- PRIME N100I-D D4
- Graphics — Graphics
- 1 x DisplayPort**; 1 x VGA port; 1 x HDMITM port*** ; **Supports max. 4K@60Hz as specified in DisplayPort 1.4.; ***Supports 4K@60Hz as specified in HDMITM 2.1.
- Expansion Slots — PCI
- 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 1 x Realtek 1Gb Ethernet
Show all 25 specificationsShow fewer
- Memory — Maximum Memory
- Max. 16GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3
- Others — Special Features
- Proven Quality; - ESD Guards; - LANGuard; - Overvoltage Protection; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-LED Core; ASUS Thermal Solution; - CPU heatsink design
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A); 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*; 2 x USB 2.0 ports (2 x Type-A）; Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
- Connector & Ports — VGA (s)
- 1 x VGA port
- Highlights — Graphics Output
- 1 x HDMI, 1 x VGA port, 1 x DisplayPort
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Onboard Intel Processor N100; Supports Intel Turbo Boost Technology 2.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port; 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode); 1 x SATA 6Gb/s port
- Connector & Ports — Internal I/O Ports
- Internal I/O Connectors; Fan and cooling related; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 1 x SATA 6Gb/s port; USB; 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x Chassis Intrude header; 1 x LPT header; 1 x S/PDIF out header; 1 x SPI TPM header (14-1pin); 1 x Speaker Header; 1 x System Panel connector
- Warranty Information — Manufacturing Warranty
- 3 years warranty
- Connector & Ports — Wireless Communication module
- M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module is sold separately.
Compare with similar products

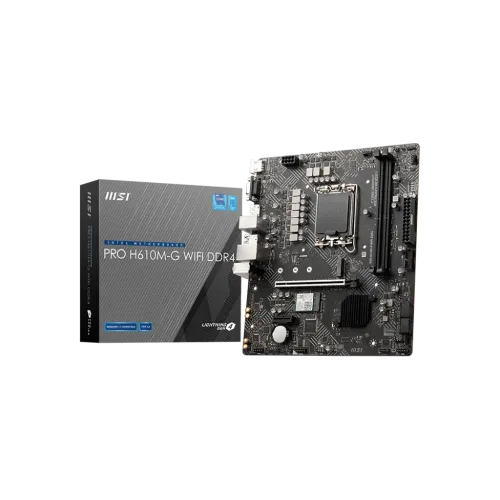

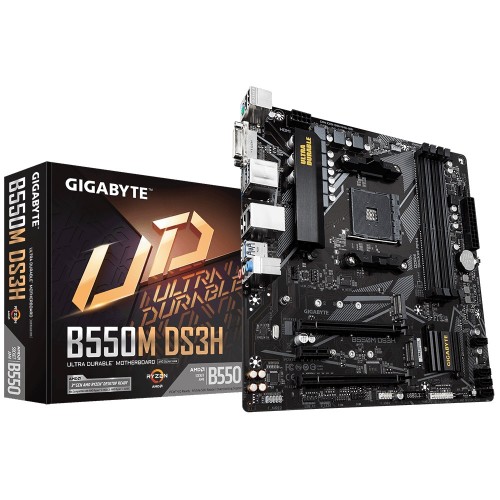

 This itemAsus PRIME N100I-D D4 Mini-ITX Motherboard |  GIGABYTEGigabyte B550M DS3H AM4 AMD Micro ATX Motherboard |  ASRockASRock B550M Pro4 DDR4 AMD Motherboard |  MSIMSI PRO H610M-G WIFI DDR4 m-ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳12,800 | ৳12,800 | ৳12,800 | ৳12,800 |
| Availability | In stock | Out of stock | Out of stock | Out of stock |
| Brand | Asus | GIGABYTE | ASRock | MSI |
| RAM type | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; * We recommend that you use 16GB or less memory module. | 3rd Gen AMD Ryzen Processors:; Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports Extreme Memory Profile (XMP) memory modules; - 15μ Gold Contact in DIMM Slots | — |
| Form factor | Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17cm x 17cm) | Micro ATX Form Factor; 24.4cm x 24.4cm | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - Solid Capacitor design; - 2oz Copper PCB | Micro-ATX |
| M.2 slots | — | 1 | 1 | 1 |
| Chipset | — | AMD B550 | AMD B550 | Intel H610 Chipset |
