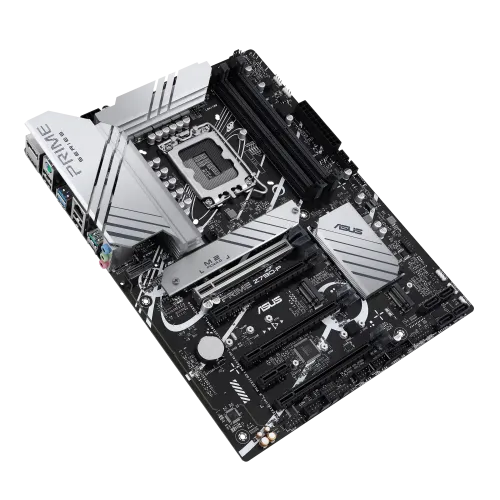

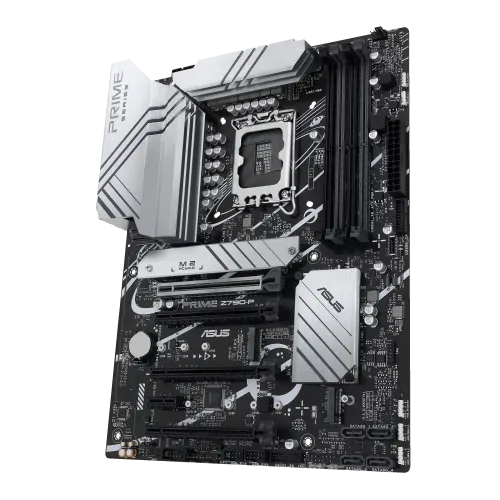

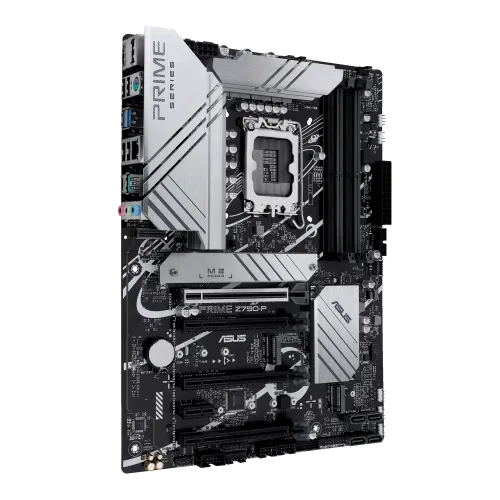

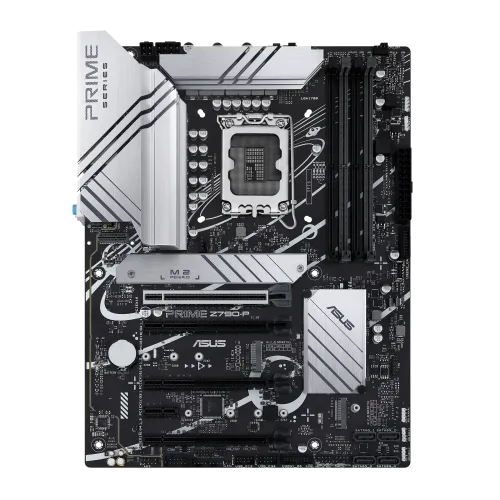

ASUS PRIME Z790-P-CSM ATX Motherboard

Name: ASUS PRIME Z790-P-CSM ATX Motherboard
Brand: Asus
Price: 34500 BDT
Availability: OutOfStock

Model: PRIME Z790-P-CSMItem #: asus-prime-z790-p-csm-motherboard

৳34,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Chipset
7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Overview

The ASUS PRIME Z790-P-CSM features LGA 1700 socket and the Z790 chipset. It supports Intel 14th Gen, 13th Gen Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The PRIME Z790-P-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It comes with four DDR5 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. This motherboard is equipped with four SATA III and three M.2 storage interfaces are available so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. ASUS PRIME Z790-P-CSM offers a range of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers that provide you with plenty of support for peripherals from low-powered equipment like mice, keyboards, and controllers to resource-demanding devices like external drives and storage arrays. The ASUS PRIME Z790-P-CSM 13th Gen ATX Motherboard comes with 3 years of warranty.

Specifications

Chipset: Intel Z790 Chipset
RAM type: 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRIME Z790-P-CSM
Graphics — Graphics: 1 x DisplayPort**; 1 x HDMI® port*** ; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots — PCI: Intel 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot

Show all 28 specifications

Highlights — Features: Realtek 2.5Gb Ethernet
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; AI Suite 3; -TurboV EVO; -PC Cleaner; -DIGI+ VRM; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Aura RGB headers; - Addressable Gen 2 headers
Highlights — Supported RAM: 4 x DIMM, Max. 128GB, DDR5 7200+(OC)

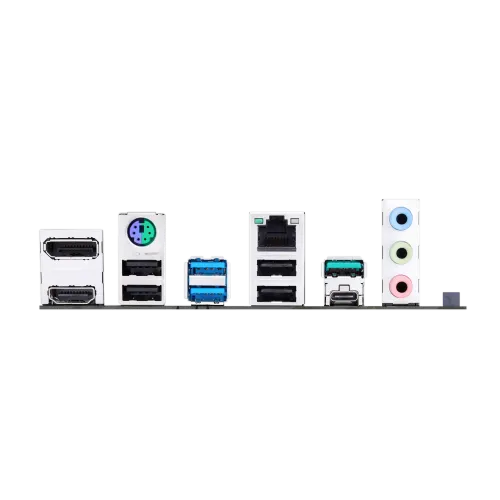

Connector & Ports — USB (s): Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Highlights — Graphics Output: 1 x DisplayPort, 1 x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 2 x Aura RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x 20-5pin System Panel header; 1 x Thunderbolt (USB4) Header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Vertical M.2 slot only (Key E, CNVi & PCIe)*; *Wi-Fi module is sold separately.
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)

Compare with similar products

	This itemASUS PRIME Z790-P-CSM ATX Motherboard	MSIMSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard	ASRockASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard	GIGABYTEGIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard
Price	৳34,500	৳34,500	৳34,500	৳34,800
Availability	Out of stock	In stock	Out of stock	In stock
Brand	Asus	MSI	ASRock	GIGABYTE
RAM type	7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II	Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM	Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC); Supports Clocked Unbuffered DIMM (CUDIMM); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0x; ; 1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.; 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.; 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.; 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor	ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )	ATX; 243.84mmx304.8mm	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 2oz Copper PCB	ATX Form Factor; 30.5cm x 24.4cm;
Chipset	Intel Z790 Chipset	INTEL Z890	Intel Z890	AMD X870
M.2 slots	—	4	1	—
