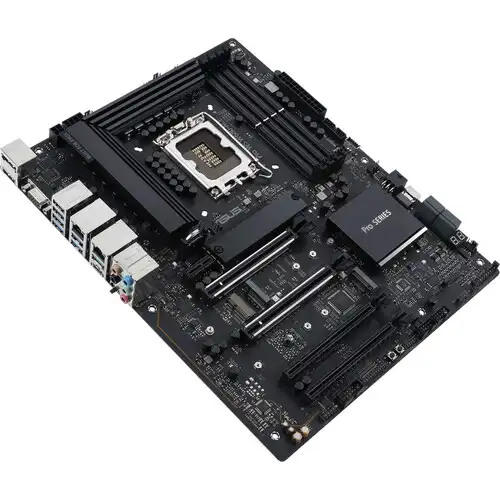

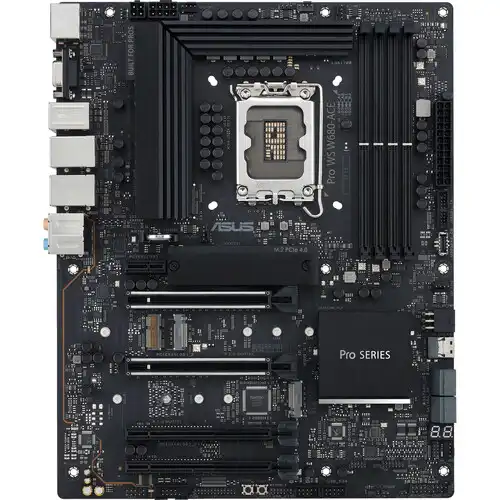

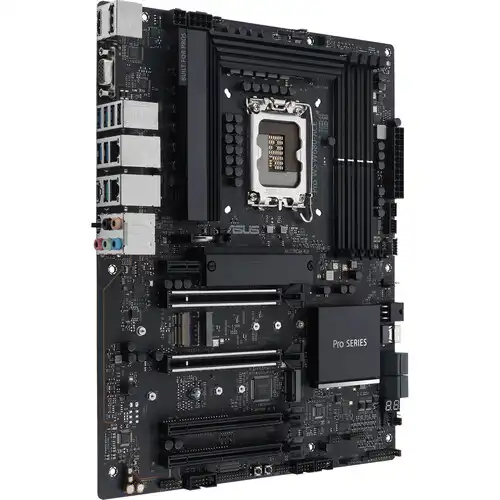

Asus Pro WS W680-ACE ATX Motherboard

Name: Asus Pro WS W680-ACE ATX Motherboard
Brand: Asus
Price: 48500 BDT
Availability: OutOfStock

Model: Pro WS W680-ACEItem #: asus-pro-ws-w680-ace-motherboard

৳48,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel W680 Chipset
3 M.2 slots
DDR5 ECC and Non-ECC Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

The ASUS Pro WS W680-ACE LGA 1700 ATX Motherboard's powerful performance will boost your productivity and editing skills. With a wide range of connectivity options and different ports, this motherboard provides a solid platform for your production. The Pro WS motherboard is built around Intel's LGA 1700 socket, which allows you to install a range of 12th and 13th Generation Core CPUs. Four DDR5 RAM slots allow you to install up to 192GB of memory, which improves multitasking and rendering speeds. Four SATA III, three M.2 PCIe SSD, and one SlimSAS slot interface can accommodate a wide range of storage devices, allowing for faster data transmission speeds. USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 compatibility is available via back-panel connectors and internal headers, making it suitable for both low-powered devices like keyboards and mice and resource-demanding devices like audio interfaces, external storage arrays, and so on. Dual 2.5 Gigabit Ethernet ports provide teaming capabilities, resulting in faster video uploads to shared NAS folders, cloud storage systems, and other destinations. ASUS Pro WS W680-ACE is intended for professionals in AI training, deep learning, animation, 3D rendering, and media creation. Pro Workstation motherboards are the best alternative for creative workers, since they offer expanded graphics, large storage, amazing connections, and exceptional overall performance and dependability. The Pro WS W680-ACE has centralized administration software, making it an efficient and cost-effective solution for IT managers.

Buy Asus Pro WS W680-ACE ATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel W680 Chipset
M.2 slots: 3
RAM type: DDR5 ECC and Non-ECC Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: Pro WS W680-ACE
Graphics — Graphics: supports max. 8K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.

Show all 29 specifications

Expansion Slots — PCI: Intel® 13th & 12th Gen Processors; - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode); Intel® W680 Chipset; - 2 x PCIe 3.0 x16 slots (supports x4 mode); - 1 x PCIe 3.0 x1 slot
Highlights — Features: 2 x Intel 2.5Gb Ethernet, ASUS LANGuard
Memory — Maximum Memory: Max. 192GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 2 x HDMI port
Connector & Ports — RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Unique de-pop circuit
Connector & Ports — Audio: 5 x Audio jacks
Others — Bundled Software: Intel® vPro support; ASUS Exclusive Software; Armoury Crate; - Fan Xpert 4; - Power Saving; ASUS CPU-Z; Adobe Creative Cloud (Free Trial); Norton 360 Deluxe (60 Days Free Trial); WinRAR; IT Management software supported; - ASUS Control Center Express(ACCE); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; FlexKey; Intel® vPro support; ASUS Exclusive Software; Armoury Crate; - Fan Xpert 4; - Power Saving; ASUS CPU-Z; Adobe Creative Cloud (Free Trial); Norton 360 Deluxe (60 Days Free Trial); WinRAR; IT Management software supported; - ASUS Control Center Express(ACCE); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; FlexKey
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-Code; - M.2 Q-Latch; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - SafeDIMM; - SafeSlot; - BIOS FlashBack button; - BIOS FlashBack LED; Bespoke Motherboard Design & Business Focused Features; - 24/7 Reliability
Connector & Ports — USB (s): Rear USB (Total 8 ports); - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®); - 4 x USB 3.2 Gen 1 ports (4 x Type-A); - 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®); - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connector & Ports — VGA (s): 1 x VGA port
Highlights — Graphics Output: 1 x DisplayPort, 2 x HDMI, 1 x VGA port
Connector & Ports — LAN Port (s): 2 x Intel 2.5Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel W680 Chipset; - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); - 4 x SATA 6Gb/s ports; - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; ; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin W_PUMP+ header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 1 x 6-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x SlimSAS port; USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x LPT header; 1 x T-sensor; 1 x Clear CMOS header; 1 x COM Port header; 1 x BMC Header; 1 x Front Panel Audio header (AAFP); 1 x Start button; 1 x Flexkey button; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x M.2 slot (Key E); 1 x LPT_P80 Switch; 1 x Thunderbolt header
Warranty Information — Manufacturing Warranty: 3 years warranty
Connector & Ports — Wireless Communication module: M.2 slot only (Key E, CNVi & PCIe)*; *Wi-Fi module is sold separately.
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)
