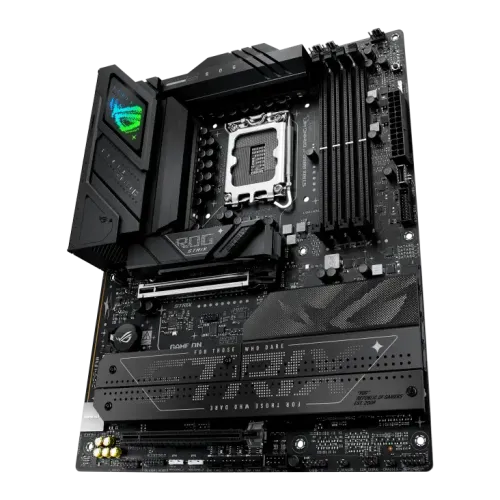

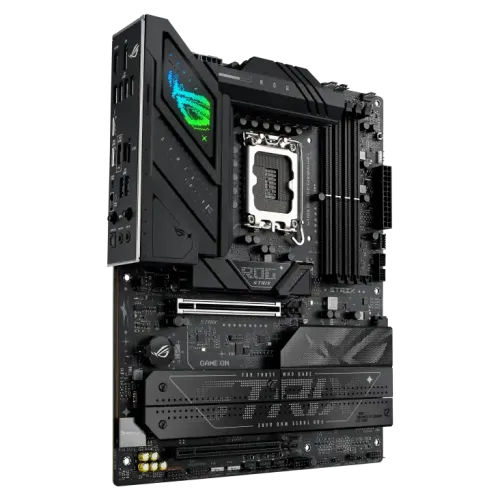

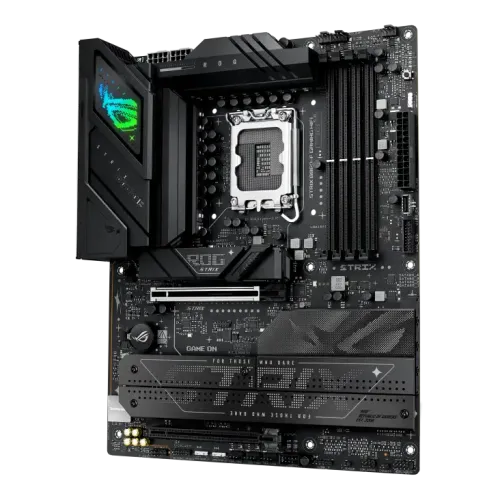

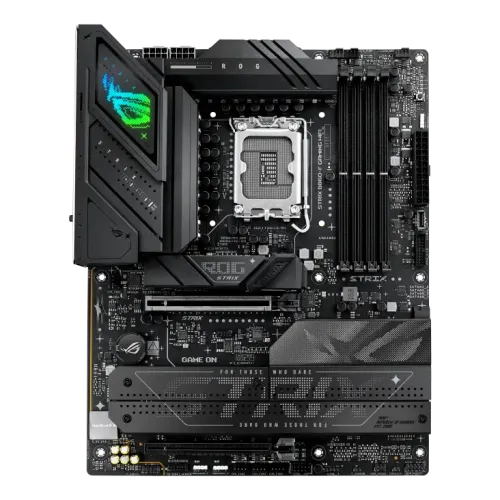

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard
Model: ROG STRIX B860-F GAMING WIFIItem #: asus-rog-strix-b860-f-gaming-wifi-motherboard
৳43,200
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B860 Chipset
- 4 M.2 slots
- 4 x DIMM slots, max. 256GB, DDR5; Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) RAM type
- ATX Form Factor ; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard is a powerhouse designed for gamers and PC enthusiasts, combining solid performance with sleek ROG aesthetics. Built on the Intel B860 chipset, it supports Intel Core Ultra Processors (Series 2) with the latest LGA1851 socket, delivering enhanced performance through Intel Turbo Boost Technology 2.0 and 3.0. The Asus ROG STRIX B860-F GAMING WIFI Motherboard boasts four DDR5 DIMM slots, accommodating up to 256GB of memory, with speeds reaching 9066MT/s (OC), supported by AEMP III for optimized compatibility and performance. Graphics output is future-proofed with DisplayPort 1.4 and HDMI 2.1 ports, supporting up to 8K@60Hz resolution, alongside a Thunderbolt 4 port for high-speed data transfers and additional display output. Expansion is seamless with a PCIe 5.0 x16 slot for next-gen GPUs and three PCIe 4.0 M.2 slots for lightning-fast storage, complemented by four SATA 6Gb/s ports. Connectivity is top-notch with Wi-Fi 7 for ultra-fast wireless speeds, 2.5Gb Ethernet for lag-free gaming, and Bluetooth 5.4. The ROG SupremeFX ALC4080 audio codec delivers pristine sound quality, enhanced by Savitech SV3H712 AMP and premium audio components. The rear I/O panel includes nine USB ports, with two USB Type-C ports offering 20Gbps and Thunderbolt 4 speeds. DIY-friendly features like M.2 Q-Latch, PCIe Slot Q-Release, and a pre-mounted I/O shield make installation a breeze. Enhanced cooling solutions, including VRM heatsinks and multiple fan headers, ensure optimal thermal performance. Customization options abound with Aura Sync RGB headers and Armoury Crate software for comprehensive control. With robust power delivery, advanced BIOS options, and a host of gamer-centric tools, the Asus ROG STRIX B860-F GAMING WIFI Motherboard sets the stage for high-performance gaming and beyond. If you're looking for the ultimate Asus Motherboard for your gaming rig, the Asus ROG STRIX B860-F GAMING WIFI is the perfect choice.
Specifications
- Chipset
- INTEL B860
- M.2 slots
- 4
- RAM type
- 4 x DIMM slots, max. 256GB, DDR5; Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III)
- Form factor
- ATX Form Factor ; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4
- Highlights — Model
- ROG STRIX B860-F GAMING WIFI
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI port ; 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs; Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.; Supports 8K@60Hz with DSC as specified in HDMI 2.1. ; In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.; VGA resolution support depends on the processors' or graphic cards' resolution.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors(Series 2); 1 x PCIe 5.0 x16 slot (supports x16 mode); Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Highlights — Features
- 4x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- Maximum Memory Capacity 256GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- SATA RAID 0/1/5/10
- Basic Information — Audio
- ROG SupremeFX 7.1 Surround Sound; High Definition Audio CODEC ALC4080; Supports up to 32-bit/384 kHz playback
- Connector & Ports — Audio
- 2 x Audio jacks
- Others — Bundled Software
- ROG Exclusive Software; - ROG CPU-Z; - Dolby Atmos; ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 ; - GameFirst; - Power Saving; ASUS Driver Hub; AIDA64 Extreme (60 days free trial) ; HWiNFO; ASUS GlideX; TurboV Core ; Adobe Creative Cloud (Days Free Trial); Norton 360 for Gamers (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; NPU Boost; ASUS EZ DIY ; - ASUS CrashFree BIOS 3 ; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- Extreme Engine Digi+; - 5K Black metallic capacitors; ASUS Q-Design; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - PCIe Slot Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Clear CMOS button; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Addressable Gen2 headers
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, 9066MT/s (OC)
- Connector & Ports — USB (s)

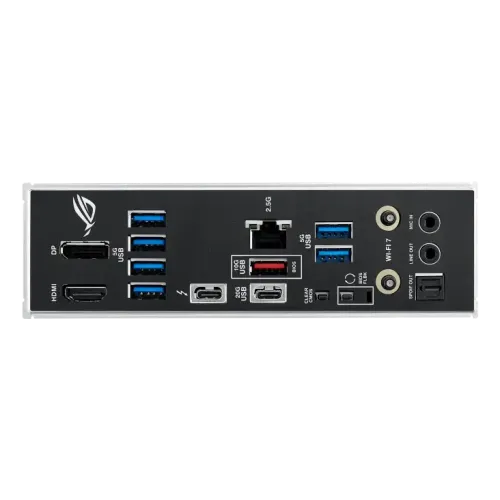

- Rear USB (Total 9 ports); 1 x Thunderbolt 4 port (1 x USB Type-C); 1 x USB 20Gbps port (1 x USB Type-C); 1 x USB 10Gbps port (1 x Type-A); 6 x USB 5Gbps ports (6 x Type-A); Front USB (Total 6 ports); 1 x USB 10Gbps (1 x USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort, 1x USB Type-C (Thunderbolt)
- Connector & Ports — LAN Port (s)
- 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4a
- Connector & Ports — Supported Storage
- Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors(Series 2); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.; Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related ; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®) ; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen2 headers; 1 x Chassis Intrusion header; 1 x Front Panel Audio header (F_AUDIO); 1 x Start button; 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header; ; Back Panel I/O Ports: ; 1 x Thunderbolt™ 4 (1 x USB Type-C®) ; 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 6 x USB 5Gbps ports (6 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 2.5Gb Ethernet port; 2 x audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button ; 1 x Clear CMOS button
- Warranty Information — Manufacturing Warranty
- 3 Year warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth® v5.4; Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Compare with similar products
 This itemAsus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard |  ASRockASRock X870 RIPTIDE WIFI AM5 ATX Motherboard |  AsusAsus ROG STRIX B650-A GAMING WIFI DDR5 AM5 ATX Motherboard |  GIGABYTEGIGABYTE Z790 AORUS ELITE X WIFI7 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳43,200 | ৳42,900 | ৳42,900 | ৳43,000 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | ASRock | Asus | GIGABYTE |
| M.2 slots | 4 | 1 | — | — |
| RAM type | 4 x DIMM slots, max. 256GB, DDR5; Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory; Dual Channel Memory Architecture ; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in; non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | ATX Form Factor ; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | INTEL B860 | AMD X870 | AMD B650 | Intel Z790 Express Chipset |
