ASUS TUF GAMING B760M-BTF WIFI micro-ATX Motherboard

Name: ASUS TUF GAMING B760M-BTF WIFI micro-ATX Motherboard
Brand: Asus
Price: 37600 BDT
Availability: OutOfStock

Model: TUF GAMING B760M-BTF WIFIItem #: asus-tuf-gaming-b760m-btf-wifi-motherboard

৳37,600

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
3 M.2 slots
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Overview

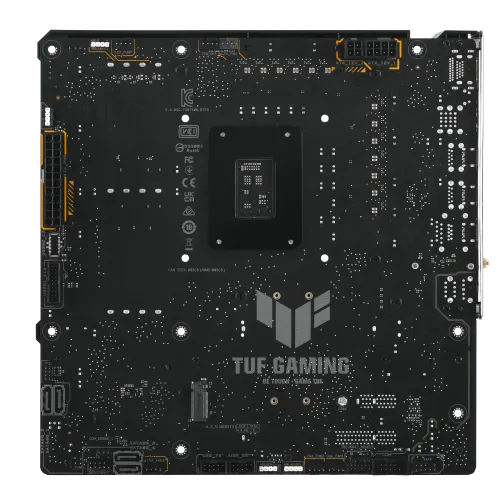

The ASUS TUF GAMING B760M-BTF WIFI Motherboard is a performance and durability powerhouse ideal for PC DIY gamers. This motherboard supports 14th, 13th, and 12th Generation Intel processors with an LGA1700 socket, assuring support for the most recent and powerful CPUs. Memory is a standout feature, with four DIMM slots supporting up to 192GB DDR5 memory rated at 7200MHz (OC). This enables quick multitasking and excellent performance, especially when overclocking to the limit. In terms of graphics output, the motherboard has 1 x DisplayPort and 1 x HDMI, allowing you to connect high-quality screens with ease. Realtek 2.5Gb Ethernet and Wi-Fi 6 guarantee dependable and fast network access for both wired and wireless installations. The "BTF" designation for the TUF GAMING B760M-BTF WIFI means "Back To (the) Future." As the motherboard conceals its connectors on the underside, this is a forward-thinking design approach, supporting clean cable management and contributing to a streamlined and minimalist construction look. This motherboard was designed with longevity in mind, featuring military-grade components, an innovative power solution, and a complete cooling system. These characteristics work together to provide rock-solid performance, guaranteeing that the motherboard can withstand the demands of long gaming sessions without sacrificing stability. The ASUS TUF GAMING B760M-BTF WIFI Motherboard is a cutting-edge option for gamers who value performance as well as looks. It is a solid basis for a high-performance gaming system, with support for the newest Intel CPUs, outstanding memory capacity, and a slew of gaming-centric features.

Specifications

Chipset: Intel B760 Chipset
M.2 slots: 3
RAM type: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: TUF GAMING B760M-BTF WIFI
Graphics — Graphics: x DisplayPort**; 1 x HDMI® port*** ; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI® 2.1.

Show all 28 specifications

Expansion Slots — PCI: Intel 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot
Highlights — Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
Memory — Maximum Memory: Max. 192GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS;
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - FAN Xpert 2+; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - Clear CMOS button; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
Connector & Ports — USB (s): Rear USB (Total 10 ports); 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C); 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C); 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
Highlights — Graphics Output: 1 x DisplayPort, 1 x HDMI
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

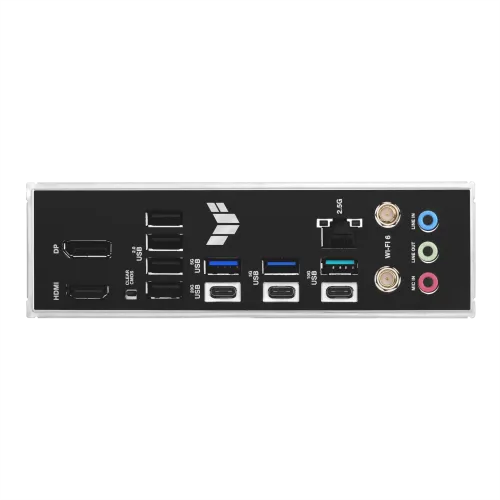

Connector & Ports — Internal I/O Ports: Back Panel I/O Ports; 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C); 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C); 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x Clear CMOS button; ; Internal I/O Connectors; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 10-1 pin System Panel header; 1 x Thunderbolt (USB4) header
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1pin)
