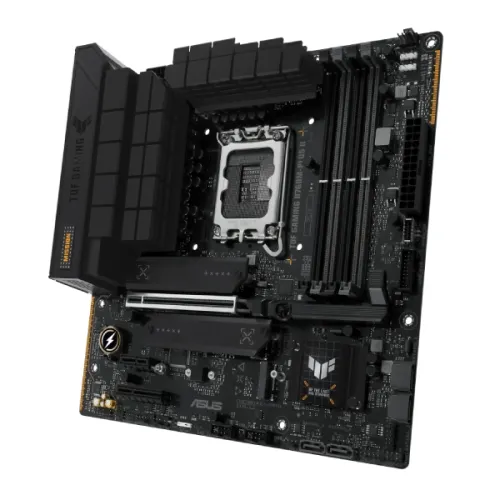

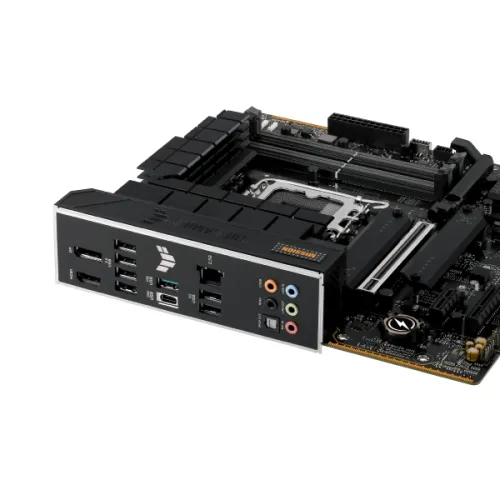

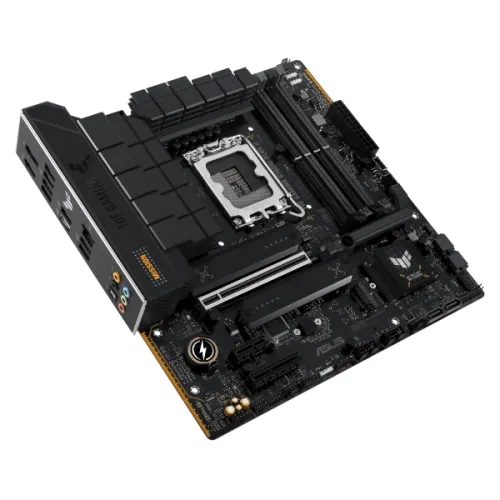

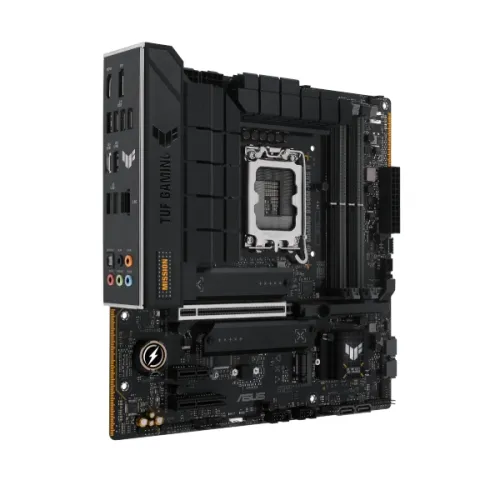

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard
Model: TUF GAMING B760M-PLUS IIItem #: asus-tuf-gaming-b760m-plus-ii-motherboard
৳22,400
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- 3 M.2 slots
- 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II) RAM type
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Overview
The ASUS TUF GAMING B760M-PLUS II is a powerful micro-ATX motherboard based on the Intel B760 chipset. It supports Intel Core 14th, 13th, and 12th Generation processors, including Pentium Gold and Celeron, using the LGA1700 socket. It supports Intel Turbo Boost Technology 2.0 and 3.0, which provides high-performance computing. This ASUS TUF GAMING B760M-PLUS II Motherboard has four DDR5 DIMM slots that can accommodate up to 192GB of memory at speeds up to 7800+MT/s (OC) in dual-channel architecture. It supports Intel XMP and ASUS Enhanced Memory Profile II (AEMP II) for better tweaking. The graphics output features one DisplayPort 1.4 and one HDMI 2.1 connector, both of which enable 4K at 60Hz. Expansion slots include a PCIe 5.0 x16 slot from the CPU, one PCIe 4.0 x4, and one PCIe 3.0 x1. The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard has three M.2 slots and four SATA 6Gb/s connections for storage. It also supports RAID 0/1/5/10 with Intel Rapid Storage Technology. The network is powered by a Realtek 2.5Gb Ethernet with TUF LANGuard for increased stability and protection. A USB 20Gbps Type-C port, one USB 10Gbps Type-A, two USB 5Gbps Type-A, and four USB 2.0 connectors make up the rear I/O. The ASUS TUF GAMING B760M-PLUS II LGA1700 Motherboard front panel can accommodate up to eight USB ports, including USB Type-C and USB 5Gbps/2.0 headers. Realtek 7.1 surround sound, premium capacitors, audio shielding, optical S/PDIF out, and 24-bit/192kHz playback are all included in the audio specifications. The CPU, chassis, and AIO pump are all cooled via headers, as are the VRM and M.2 heatsinks. ASUS Q-Design features including M.2 Q-Latch, PCIe Q-Release, Q-DIMM, and Q-LED make assembly easier. The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard also has Aura Sync with Gen 2 RGB headers, a pre-mounted I/O shield, ProCool connections, SafeSlot Core+, AI Noise Cancelation, and software like as Armoury Crate and Fan Xpert 2+. It supports Windows 11 and 10, making it suitable for long-lasting, efficient, and performance-driven PC setups.
Specifications
- Chipset
- Intel B760 Chipset
- M.2 slots
- 3
- RAM type
- 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II)
- Form factor
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING B760M-PLUS II
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI port; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; VGA resolution support depends on processors' or graphic cards' resolution.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Processors (14th& 13th& 12th Gen); 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 3x M.2 Slot, 1x Realtek 2.5Gb Ethernet
- Memory — Maximum Memory
- 192GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 5 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - AURA Creator; - AURA Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancelation; AI Suite 3; - DIGI+ VRM; - PC CleanerTUF GAMING CPU-Z; DTS Audio Processing; Norton 360 for Gamers (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 4x DDR5, Max 192GB, Support up to 7800+(OC)
- Connector & Ports — USB (s)
- Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 8 ports); 1 x USB 10Gbps connector (supports USB Type-C®)*; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 5 additional USB 2.0 ports
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI port
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; TUF LANGuard;
- Basic Information — Supported CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0; Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel®Core™Processors (14th& 13th& 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode); Intel®B760 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; Internal I/O Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 5 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Front Panel Audio header (F-AUDIO); 1 x20-3 pin System Panel header with chassis intrusion function; 1 x Thunderbolt™ (USB4®) header
- Warranty Information — Manufacturing Warranty
- 3 years warranty
Compare with similar products
 This itemASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard |  MSIMSI B760 GAMING PLUS WIFI ATX Motherboard |  GIGABYTEGigabyte B550 AORUS ELITE Gaming AMD Motherboard |  MSIMSI PRO B760-P WIFI DDR4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳22,400 | ৳22,500 | ৳22,500 | ৳22,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | MSI | GIGABYTE | MSI |
| M.2 slots | 3 | — | 1 | — |
| RAM type | 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II) | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | 3rd Gen AMD Ryzen Processors:; Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) |
| Form factor | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX; 243.84mmx304.8mm | ATX Form Factor; 30.5cm x 24.4cm | ATX; 243.84mmx304.8mm |
| Chipset | Intel B760 Chipset | INTEL B760 | AMD B550 | INTEL B760 |
