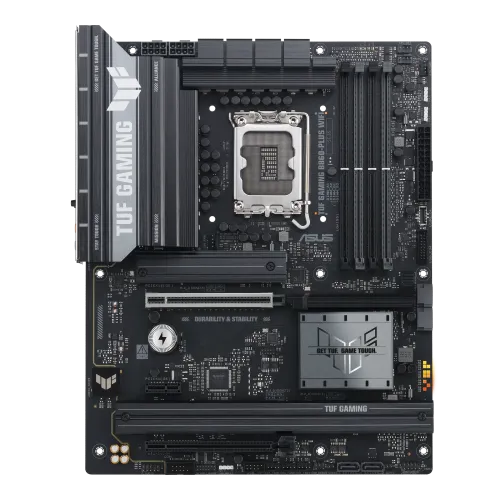

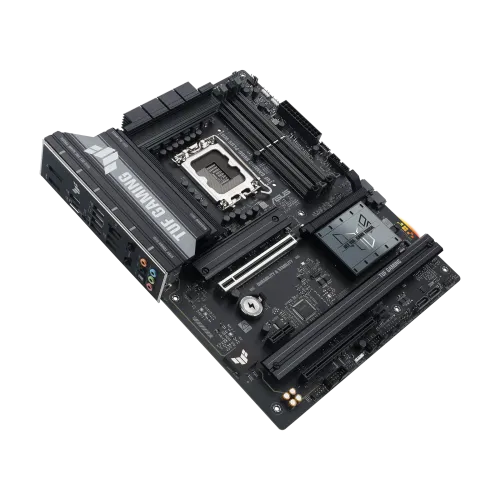

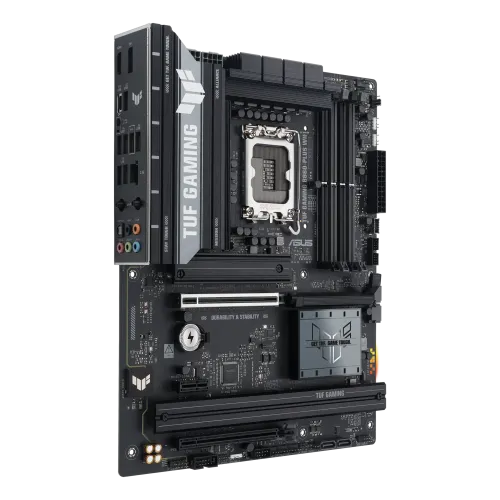

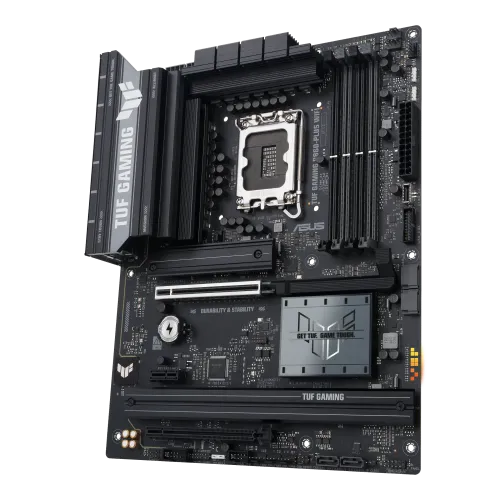

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

Name: Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard
Brand: Asus
Price: 35400 BDT
Availability: InStock

Model: TUF GAMING B860-PLUS WIFIItem #: asus-tuf-gaming-b860-plus-wifi-motherboard

৳35,400~~৳35,500~~Save 0%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B860 Chipset
3 M.2 slots
4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*"; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard has the Intel B860 chipset and is compatible with Intel Core Ultra Processors (Series 2) with the LGA 1851 socket. This Asus TUF GAMING B860-PLUS WIFI Motherboard has Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 for increased processing power. The Asus TUF GAMING B860-PLUS WIFI has 4 DIMM slots that can handle up to 256GB of DDR5 memory and speeds of up to 8666+ MT/s (OC), providing an excellent memory performance experience. The motherboard also supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMPIII) for further versatility. For graphical performance, the Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard includes DisplayPort and HDMI 2.1 ports, each supporting 4K resolution at 60Hz. A USB 20Gbps port (USB Type-C) with DisplayPort video output further enhances visual capabilities. The motherboard features 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode), and 1 x PCIe 4.0 x1 slot, providing a wide range of expansion options. The storage configuration includes 3 x M.2 slots (supporting PCIe 5.0 x4 and PCIe 4.0 x4) and 4 x SATA 6Gb/s ports, ensuring fast data access and storage options. For connectivity, the Asus TUF GAMING B860-PLUS WIFI Motherboard supports Wi-Fi 7 with 2x2 (802.11be) up to 2.9Gbps, Bluetooth v5.4, and Realtek 2.5Gb Ethernet with TUF LANGuard for enhanced stability. On the audio front, it features Realtek 7.1 Surround Sound High Definition Audio CODEC with premium components like shielding, capacitors, and a dedicated PCB layer for superior sound quality. The ASUS TUF GAMING B860-PLUS WIFI provides long-lasting durability with ASUS TUF Protection, which includes SafeSlot, overvoltage protection, and ESD Guards. ASUS Thermal Solutions enhances thermal efficiency with their M.2 and VRM heatsink designs. Convenient features like the BIOS FlashBack button, Q-DIMM, Q-LED indications, and Aura Sync with addressable Gen 2 headers improve the user experience. The Asus Motherboard has an ATX form size (12 x 9.6) and is compatible with a variety of PC setups. It also fully supports Windows 11. The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard offers all the features and performance you want, whether you are constructing a gaming setup or a productive workstation.

Specifications

Chipset: INTEL B860
M.2 slots: 3
RAM type: 4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*"; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: TUF GAMING B860-PLUS WIFI
Graphics — Graphics: 1 x DisplayPort; 1 x HDMI port ; 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output; Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Show all 28 specifications

Expansion Slots — PCI: Intel Core Ultra Processors(Series 2); 1 x PCIe 5.0 x16 slot; Intel® B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
Highlights — Features: 3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: Maximum Memory Capacity 256GB
Basic Information — BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: SATA RAID 0/1/5/10
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback
Connector & Ports — Audio: 5 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4; - Power Saving; ASUS DriverHub; ASUS GlideX; TUF GAMING CPU-Z; Adobe Creative Cloud (Free Trial); DTS Audio Processing; Norton 360 for Gamers (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Addressable Gen 2 headers
Highlights — Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)
Connector & Ports — USB (s): Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C®); 2 x USB 10Gbps ports (2 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 5 ports); 1 x USB USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; USB Type-C® power delivery output: max. 5V/3A
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Connector & Ports — Display Port (s): 1x DisplayPort 1.4a
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors(Series 2); M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

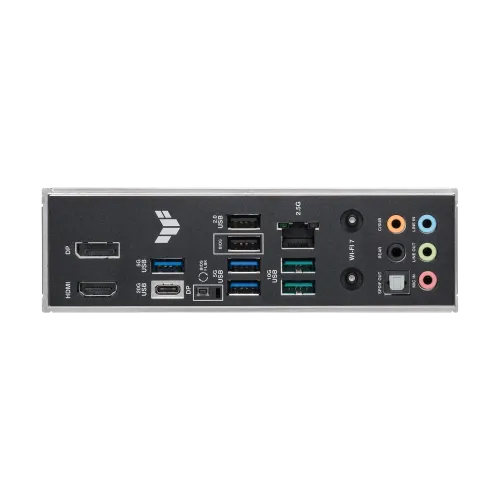

Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front System Panel header; 1 x Thunderbolt™ (USB4®) header; ; Back Panel I/O Ports: ; ; 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode); 2 x USB 10Gbps ports (2 x USB Type-A); 3 x USB 5Gbps ports (3 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button; 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode); 2 x USB 10Gbps ports (2 x USB Type-A); 3 x USB 5Gbps ports (3 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button
Warranty Information — Manufacturing Warranty: 3 Year warranty
Connector & Ports — Wireless Communication module: Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth® v5.4; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

Compare with similar products

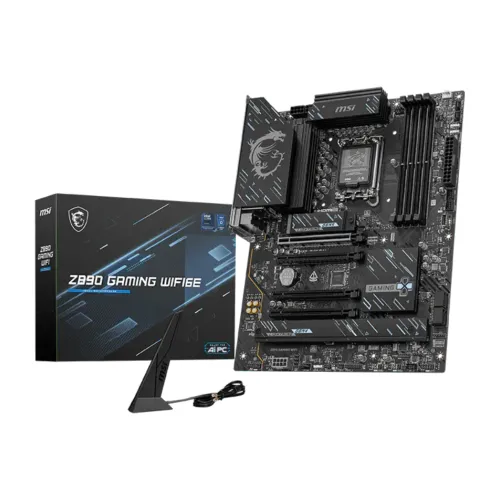

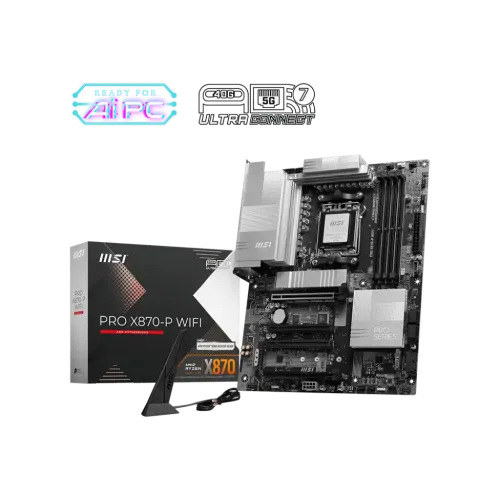

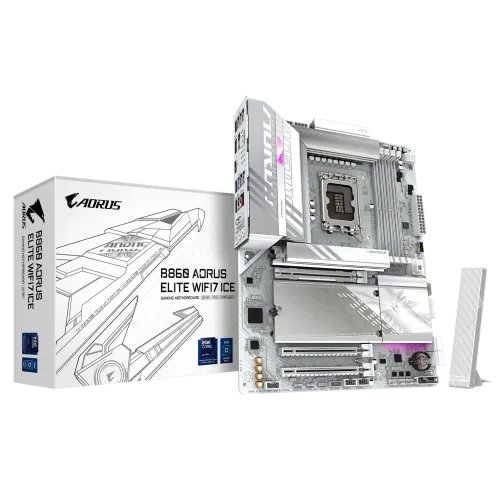

	This itemAsus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard	MSIMSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard	GIGABYTEGigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard	MSIMSI PRO X870-P WIFI AM5 ATX Motherboard
