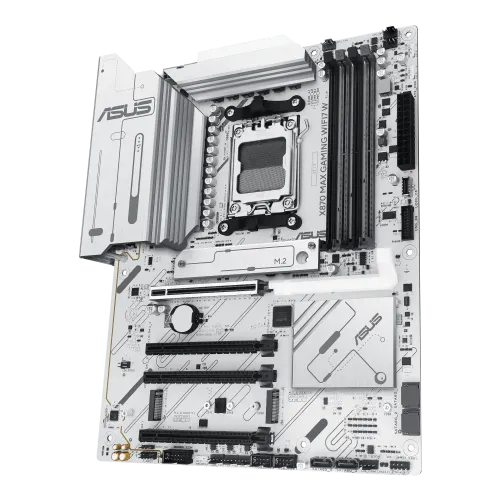

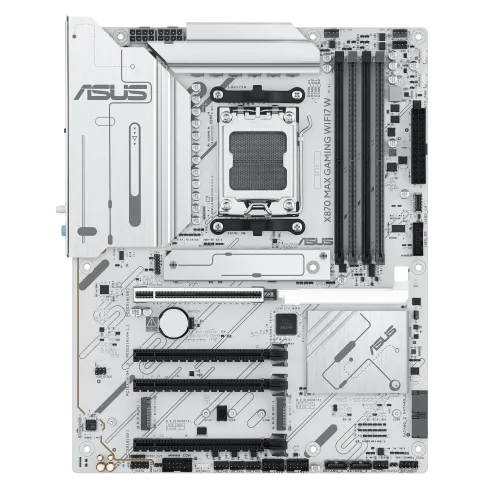

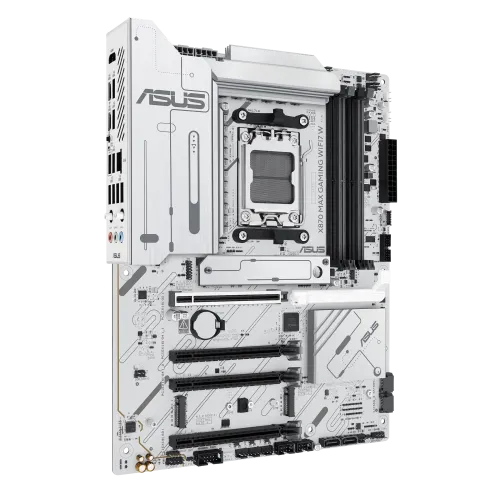

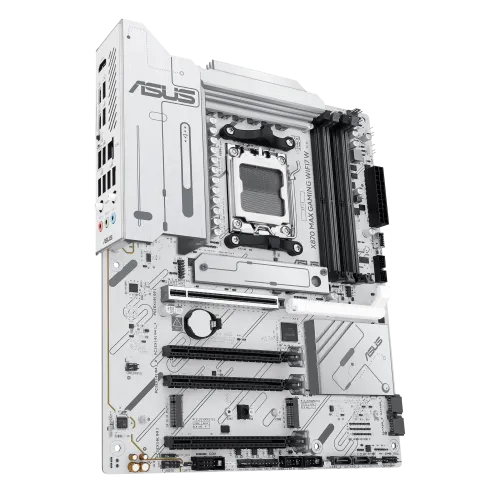

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

Name: Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard
Brand: Asus
Price: 43900 BDT
Availability: InStock

Model: X870 MAX GAMING WIFI7 WItem #: asus-x870-max-gaming-wifi7-w-motherboard

৳43,900~~৳44,500~~Save 1%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
9000 M.2 slots
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

The Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard is a powerhouse platform designed for elite gamers and creators, supporting AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket. Built on the cutting-edge AMD X870 chipset, the Asus X870 MAX GAMING WIFI7 W delivers next-gen performance with support for up to 256GB of DDR5 RAM across 4 DIMM slots, overclockable to 8000+ MT/s. It features dual-channel architecture, ECC/Non-ECC support, and memory tuning through AMD EXPO and ASUS AEMP. For graphics, it includes one HDMI 2.1 port and two USB4 Type-C ports with DisplayPort 1.4a, enabling up to 4K@60Hz video output depending on the processor. This Asus X870 MAX GAMING WIFI7 W ATX Motherboard provides extensive expandability with one PCIe 5.0 x16 slot (for Ryzen 9000/7000), additional PCIe 4.0 and 3.0 slots, and three M.2 slots with PCIe 5.0 and 4.0 interface, plus four SATA 6Gb/s ports supporting RAID 0/1/5/10 (on Ryzen 9000). Note: certain ports share bandwidth and can be managed via BIOS settings. For connectivity, the Asus X870 MAX GAMING WIFI7 W includes 2 x USB4 (40Gbps) ports, 10 rear USB ports, 7 front USB ports (including USB 20Gbps Type-C with 30W fast-charging), and Realtek 2.5Gb Ethernet. Wireless features include Wi-Fi 6 (802.11ax) and Bluetooth 5.2. Audio is driven by Realtek 7.1 Surround Sound High Definition Audio, offering jack detection, multi-streaming, and 24-bit/192kHz quality with premium components. The Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard also features extensive internal I/O including multiple fan headers, RGB Gen 2 headers, TPM, S/PDIF, and COM ports. DIY-friendly features like Q-LED, M.2 Q-Latch, PCIe Slot Q-Release, and a pre-mounted I/O shield make setup easy, while ASUS 5X Protection III ensures system durability. Enhanced thermal solutions, Aura Sync RGB, and bundled software like Armoury Crate and Fan Xpert 4 make the Asus X870 MAX GAMING WIFI7 W Motherboard a top-tier choice for performance and reliability.

Specifications

Chipset: AMD X870 Chipset
M.2 slots: 9000
RAM type: Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: X870 MAX GAMING WIFI7 W
Graphics — Graphics: 1 x HDMI port; 2 x USB4 (40Gbps) ports support USB Type-C display outputs; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; *** VGA resolution support depends on processors' or graphic cards' resolution.

Show all 27 specifications

Expansion Slots — PCI: AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); 1 x PCIe 3.0 x16 slot (supports x1 mode)
Highlights — Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Memory — Maximum Memory: 256GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOSc
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10; * Specifications vary by CPU types.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 with AI Cooling II; ASUS AI Advisor; ASUS DriverHub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers

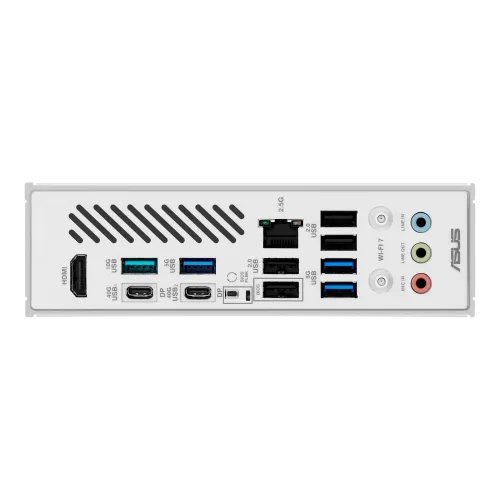

Connector & Ports — USB (s): Rear USB (Total 10 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A
Highlights — Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD X870 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4® (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.; * The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.; ** Specifications vary by CPU types.
Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth v5.4; * Wi-Fi features may vary depending on the operating system.; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1 pin)
