Colorful BATTLE-AX B650M-PLUS WIFI V15 AM5 mATX Motherboard

Name: Colorful BATTLE-AX B650M-PLUS WIFI V15 AM5 mATX Motherboard
Brand: Colorful
Price: 16900 BDT
Availability: OutOfStock

Model: BATTLE-AX B650M-PLUS WIFI V15Item #: colorful-battle-ax-b650m-plus-wifi-v15-motherboard

৳16,900

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
2 M.2 slots
Support DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; Support Extreme Memory Profile (XMP) memory technology; Support EXtended Profiles for Overclocking (EXPO) memory technology; Supports dual channel memory technology RAM type
M-ATX; 245mm x 245 mm Form factor

Overview

The colorful BATTLE-AX B650M-PLUS WIFI V15 AM5 mATX motherboard is designed for power users, gamers, and producers that require a modern, feature-rich platform with cutting-edge technologies. It supports AMD Ryzen 7000, 8000, and 9000 series CPUs on the AM5 socket, providing future-ready performance for demanding workloads. Memory performance is impressive, with four DDR5 slots enabling up to 192GB total capacity, or 48GB per slot, and speeds of up to DDR5-6800 (OC). The Colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard features dual-channel RAM architecture and support for XMP and EXPO profiles, ensuring stable and optimum overclocking for quicker multitasking and gaming. Two M.2 slots and four SATA 6Gb/s connectors provide exceptional storage versatility, with support for RAID 0, RAID 1, and RAID 10 across SATA or NVMe SSDs. Both M.2 slots enable PCIe 5.0/4.0 x4, depending on the CPU, resulting in lightning-fast read and write speeds. The colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard includes rear I/O and provides users with comprehensive connectivity: four USB 2.0 ports, two USB 3.2 Gen 1 Type-A, one USB 3.2 Gen 2 Type-A, and one USB 3.2 Gen 1 Type-C connector, as well as HDMI 1.4 and DP 1.2 outputs for 4K monitors. A 2.5G LAN port, Wi-Fi 6 via the AX200 wireless card, and Bluetooth 5.2 provide easy device connection. Expansion features one PCIe 5.0 x16 slot for graphics cards, one PCIe 4.0 x16 slot that runs at x4, and one PCIe 4.0 x1 slot for additional gear. The colorful BATTLE-AX B650M-PLUS WIFI V15 Motherboard also has several fan headers, a pump header for water cooling, and RGB compatibility via 5V ARGB and 12V RGB headers. The UEFI BIOS supports 128M with multi-language compatibility, and hardware monitoring includes fans, temps, and voltages for complete system control. The audio is driven by the Realtek ALC897 codec, which supports 5.1-channel immersive sound. This mATX board, measuring 245mm x 245mm, is ideal for tiny setups while providing high performance.

Specifications

Chipset: AMD B650
M.2 slots: 2
RAM type: Support DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; Support Extreme Memory Profile (XMP) memory technology; Support EXtended Profiles for Overclocking (EXPO) memory technology; Supports dual channel memory technology
Form factor: M-ATX; 245mm x 245 mm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM;
Highlights — Model: BATTLE-AX B650M-PLUS WIFI V15
Expansion Slots — PCI: 1×PCIe 5.0 x16 slot; 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications); 1×PCIe 4.0 x1 slot

Show all 26 specifications

Highlights — Features: 2x M.2 slot, RTL8125BG 2.5Gbit LAN, AX200 WiFi 6, Bluetooth 5.2
Memory — Maximum Memory: up to 192 GB of memory (a single socket can support up to 48 GB of memory)
Basic Information — BIOS: 128M UEFI, support multiple languages
Connector & Ports — HDMI: 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
Connector & Ports — RAID: supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
Basic Information — Audio: Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Connector & Ports — Audio: Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Others — Special Features: Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot; Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Highlights — Supported RAM: 4x DDR5 Up to 6800(OC) Max. 192GB
Connector & Ports — USB (s): -4×USB 2.0 interfaces; -2×USB 3.2 Gen 1 Type-A interfaces; -1×USB 3.2 Gen 2 Type-A interface; -1×USB 3.2 Gen 1 Type-C interface
Highlights — Graphics Output: 1x HDMI 1.4, 1x DisplayPort 1.2
Connector & Ports — LAN Port (s): 1×2.5G network interface; RTL8125BG 2.5Gbit LAN
Basic Information — Supported CPU: Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Connector & Ports — Display Port (s): 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
Connector & Ports — Supported Storage: 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices; - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel); - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)

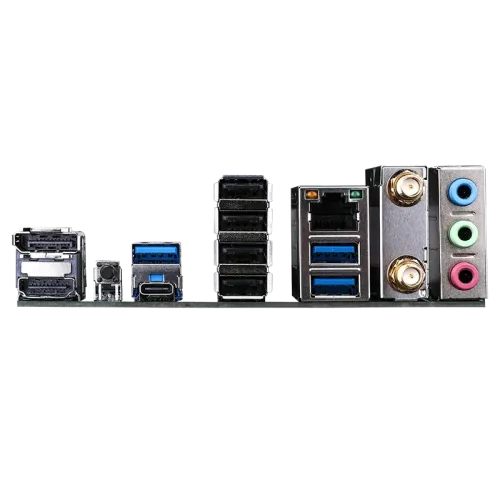

Connector & Ports — Internal I/O Ports: Rear I/O :; -4×USB 2.0 interfaces; -2×USB 3.2 Gen 1 Type-A interfaces; -1×USB 3.2 Gen 2 Type-A interface; -1×USB 3.2 Gen 1 Type-C interface; -1×DP 1.2 interface, supporting up to 4K 60Hz resolution; -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution; -1×2.5G network interface; -2×Wi-Fi 6 antenna interfaces; -3×Audio interfaces (audio input/audio output/microphone); -1×BIOS update button; On board:; -1×CPU fan pin; -3×System fan pins; -1×water cooling pump pin; -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces; -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces; -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface; -2×5V 3-pin ARGB pins; -2×12V 4-pin RGB pins; -1×Front audio pin; -1×Front panel pin; -1×Speaker pin; -1×Clear CMOS jumper; -1×COM port pin; -1×BIOS burner pin; -1×POST card pin
Warranty Information — Manufacturing Warranty: 03 years
Connector & Ports — Wireless Communication module: AX200 WiFi 6 wireless network card, Bluetooth 5.2
