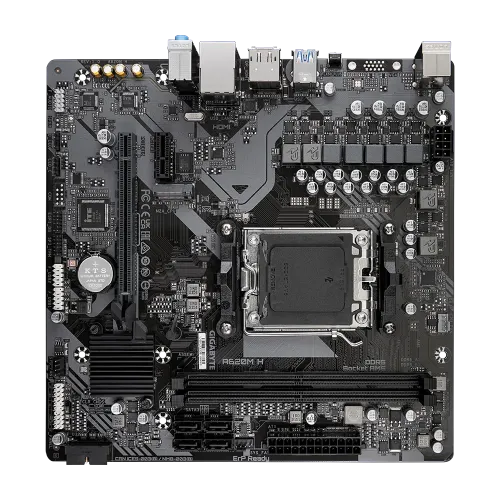

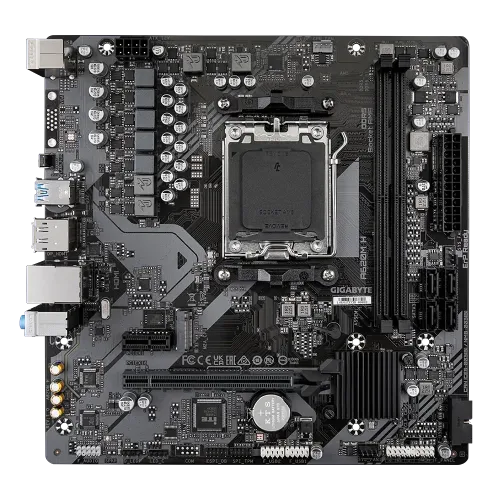

GIGABYTE A620M H AM5 Micro-ATX Motherboard

Name: GIGABYTE A620M H AM5 Micro-ATX Motherboard
Brand: GIGABYTE
Price: 10900 BDT
Availability: InStock

Model: A620M HItem #: gigabyte-a620m-h-motherboard

৳10,900~~৳11,500~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A620 Chipset
6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 23.0cm x 22.5cm

Overview

The GIGABYTE A620M H is a versatile Micro-ATX motherboard designed for AMD Socket AM5, making it compatible with the latest AMD Ryzen 7000, 8000, and 9000 series processors. It offers unparalleled performance with a 5+2+2 phase digital VRM solution, ensuring stable power delivery and enhanced overclocking capabilities. The motherboard supports dual-channel DDR5 memory, accommodating up to two SMD DIMMs and providing support for AMD EXPO and Intel XMP memory modules for optimized performance. For storage, it includes a PCIe 4.0 x4 M.2 connector, enabling rapid data access and quick boot times with the latest NVMe SSDs. The GIGABYTE A620M H also features an EZ-Latch PCIe x16 slot, making it easy to install and remove graphics cards without tools. It offers reliable network connectivity through a Gigabit Ethernet (GbE) LAN port and extended display options with both DisplayPort and HDMI outputs, supporting multiple monitor setups. The Smart Fan 6 technology includes advanced fan controls with multiple temperature sensors and hybrid fan headers, supporting both PWM and DC fans. The FAN STOP feature further enhances energy efficiency and reduces noise by stopping the fans when the system is cool enough. The Q-Flash Plus feature allows for BIOS updates without the need for a CPU, memory, or graphics card, simplifying maintenance and upgrades. Overall, this motherboard provides a robust platform for building a modern PC, offering a blend of advanced features and future-proofing capabilities.

Specifications

Chipset: AMD A620
RAM type: 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 23.0cm x 22.5cm
Memory — Type: DDR5
Memory — Slots: 2 x DIMM
Highlights — Model: A620M H
Graphics — Graphics: supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: 1 x PCI Express x16 slot, integrated in the CPU:; AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset:; 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Show all 26 specifications

Highlights — Features: 1 x DisplayPort, 1 x HDMI
Memory — Maximum Memory: supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus;
Connector & Ports — USB (s): CPU:; 2 x USB 3.2 Gen 1 ports on the back panel; 1 x USB 2.0/1.1 port on the back panel; Chipset:; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2 x DisplayPort, 1 x HDMI port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:; AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors

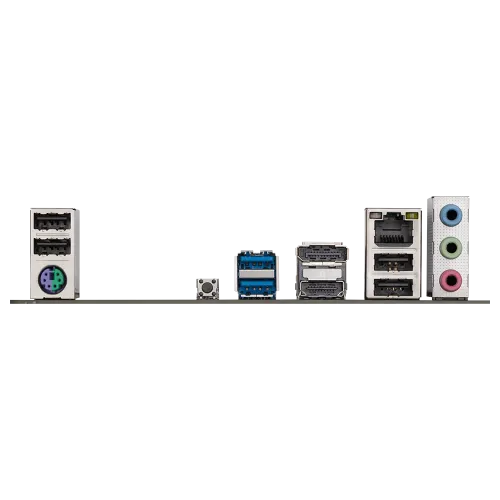

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Clear CMOS jumper; ; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
