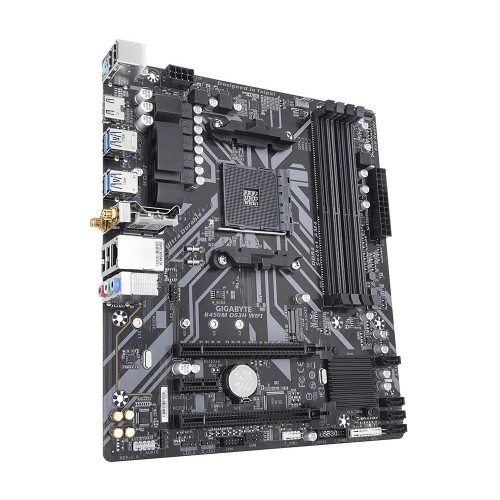

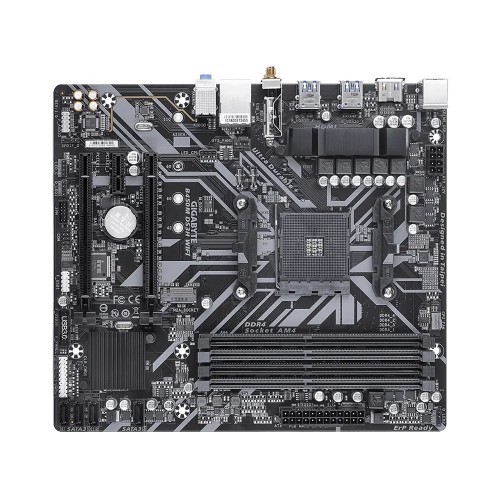

GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

Name: GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard
Brand: GIGABYTE
Price: 12000 BDT
Availability: OutOfStock

Model: B450M DS3H WIFIItem #: gigabyte-b450m-ds3h-wifi-amd-motherboard

৳12,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B450 Chipset
1 M.2 slots
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.) RAM type
Micro ATX Form Factor; 24.4cm x 21.5cm

Overview

GIGABYTE B450M DS3H WIFI Supports with AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard featured with Intel Dual Band 802.11ac WIFI & BT 4.2. The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed which is faster than 802.11n and also support BLUETOOTH 4.2. The GIGABYTE B450M DS3H WIFI comes with Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, High Quality Audio Capacitors and Audio Noise Guard Design, RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support, Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune and Cloud Station Utilities and also has CEC 2019 Ready, Save Power with a Simple Click. Here, GIGABYTE M.2 solution offers considerably faster storage performance and also support for PCIe and SATA interfaces for M.2 SSD devices. With the Smart Fan 5, Gamers can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different space on the motherboard. By equipping resistors with an Anti-Sulfur Design GIGABYTE B450M DS3H WIFI gives Ultra Durable Motherboards a whole new meaning. This latest GIGABYTE B450M DS3H WIFI offeres 03 years warranty.

Specifications

Chipset: AMD B450
M.2 slots: 1
RAM type: Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.)
Form factor: Micro ATX Form Factor; 24.4cm x 21.5cm
Memory — Type: Dual channel memory architecture
Memory — Slots: 4 x DDR4 DIMM sockets
Highlights — Model: B450M DS3H WIFI
Graphics — Graphics: Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon

Show all 24 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note); For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 1 x PCI Express x16 slot, running at x1 (PCIEX1_2); 1 x PCI Express x1 slot; (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
Memory — Maximum Memory: 128 GB
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port;
Connector & Ports — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.; Support for S/PDIF Out
Others — Bundled Software: Norton Internet Security (OEM version); cFosSpeed
Others — Special Features: Support for APP Center; Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; EasyTune; Fast Boot; Game Boost; ON/OFF Charge; RGB Fusion; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install

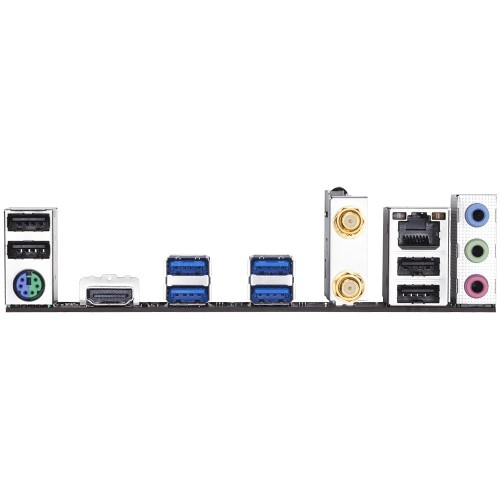

Connector & Ports — USB (s): CPU:; 4 x USB 3.1 Gen 1 ports on the back panel; Chipset:; 2 x USB 3.1 Gen 1 ports available through the internal USB header; 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (10/100/1000 Mbit);
Highlights — Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
Basic Information — Supported CPU: AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; (Please refer "CPU Support List" for more information.)
Connector & Ports — Supported Storage: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support); Actual support may vary by CPU.; Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.; 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10; Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x CPU cooler LED strip/RGB LED strip header; 1 x RGB LED strip header; 2 x addressable LED strip headers; 1 x USB 3.1 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x serial port header; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 03 years
Connector & Ports — Wireless Communication module: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 4.2; Support for 11ac wireless standard and up to 433 Mbps data rate; Actual data rate may vary depending on environment and equipment.
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Compare with similar products

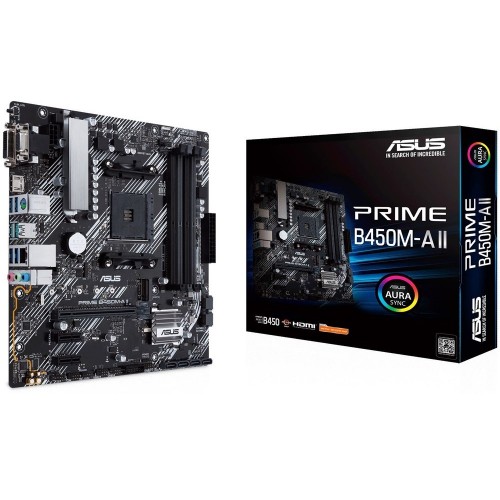

	This itemGIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard	AsusAsus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard	GIGABYTEGIGABYTE H610M S2H DDR5 mATX Motherboard	AsusAsus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
Price	৳12,000	৳11,900	৳11,900	৳12,000
Availability	Out of stock	Out of stock	Out of stock	Out of stock
Brand	GIGABYTE	Asus	GIGABYTE	Asus
M.2 slots	1	1	—	1
RAM type	Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.)	3rd Gen AMD Ryzen Processors; 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory; 3rd Gen AMD Ryzen with Radeon Graphics Processors; 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU	13th Generation Intel Core i9/i7 processors:; Support for DDR5 5600/5200/4800/4400 MT/s memory modules; 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:; Support for DDR5 4800/4400 MT/s memory modules; 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; support for Extreme Memory Profile (XMP) memory modules	4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory ;
Form factor	Micro ATX Form Factor; 24.4cm x 21.5cm	mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )	Micro ATX Form Factor; 23.0cm x 21.5cm	9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
Chipset	AMD B450	AMD A520	Intel H610 Express Chipset	AMD B450
