GIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard
Brand: GIGABYTE
Price: 33000 BDT
Availability: OutOfStock

Model: B650 AORUS ELITE AX V2Item #: gigabyte-b650-aorus-elite-ax-v2-motherboard

৳33,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
3 M.2 slots
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

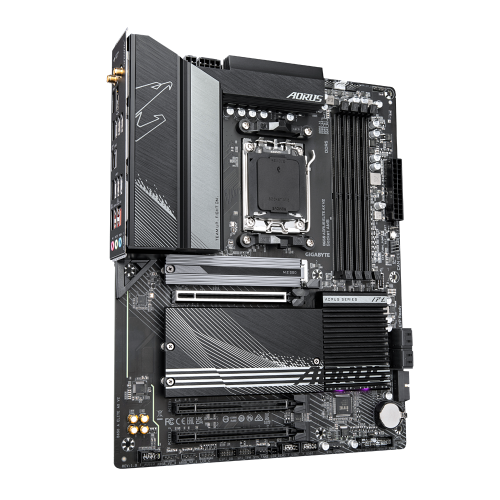

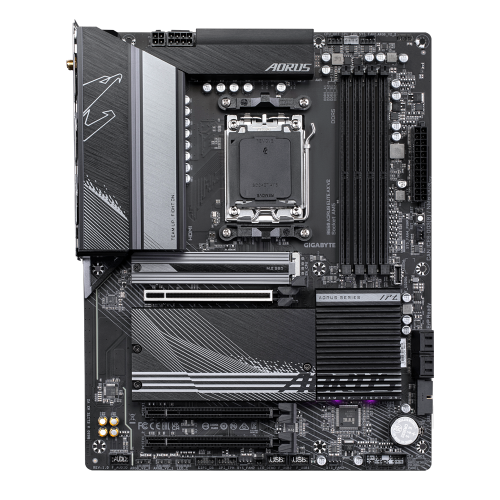

The GIGABYTE B650 AORUS ELITE AX V2 Motherboard supports AMD Ryzen 8000 and 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with a direct Twin 12+2+2 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. The motherboard provides a 4x DDR5 slot that supports up to 192GB memory, It comes with 1x PCIe 5.0 x4 M.2 and 2x PCIe 4.0 x4 M.2 Connectors. The PCIe 5 (M2A) and PCIe 4 (M2B) both are integrated with the CPU for better and faster speed and connectivity. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCB's design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650 AORUS ELITE AX V2 Motherboard comes with 2.5G LAN and Wi-Fi 6E which provides up to 2.5 Gbps in LAN connection and almost 2 times faster connectivity in each case both LAN and wireless network connectivity, It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation,3 x addressable RGB Gen2 LED strip headers in this Gigabyte Motherboard helps to connect RGB components to the board.

Specifications

Chipset: AMD B650
M.2 slots: 3
RAM type: Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: B650 AORUS ELITE AX V2
Graphics — Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version and HDR.; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; ; ; (Graphics specifications may vary depending on CPU support.)

Show all 29 specifications

Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Highlights — Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, up to 192GB, 8000(OC)

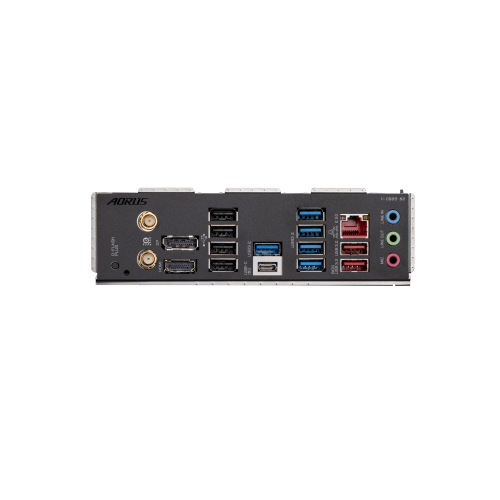

Connector & Ports — USB (s): CPU:; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; CPU + USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header; - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel
Highlights — Graphics Output: 1x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPorts
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU); * Actual support may vary by CPU.; 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Compare with similar products

	This itemGIGABYTE B650 AORUS ELITE AX V2 DDR5 AMD AM5 ATX Motherboard	MSIMSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard	GIGABYTEGIGABYTE Z790 GAMING X AX ATX Motherboard	AsusAsus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard
Price	৳33,000	৳33,000	৳33,000	৳33,000
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	GIGABYTE	MSI	GIGABYTE	Asus
M.2 slots	3	3	—	—
RAM type	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor	ATX Form Factor; 30.5cm x 24.4cm	ATX; 243.84mmx304.8mm	ATX Form Factor; 30.5cm x 24.4cm	Mini-ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Chipset	AMD B650	AMD B850	Intel Z790 Express Chipset	Intel B760 Chipset
