GIGABYTE B650 UD AC AM5 ATX Motherboard

Name: GIGABYTE B650 UD AC AM5 ATX Motherboard
Brand: GIGABYTE
Price: 24800 BDT
Availability: OutOfStock

Model: B650 UD ACItem #: gigabyte-b650-ud-ac-motherboard

৳24,800

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

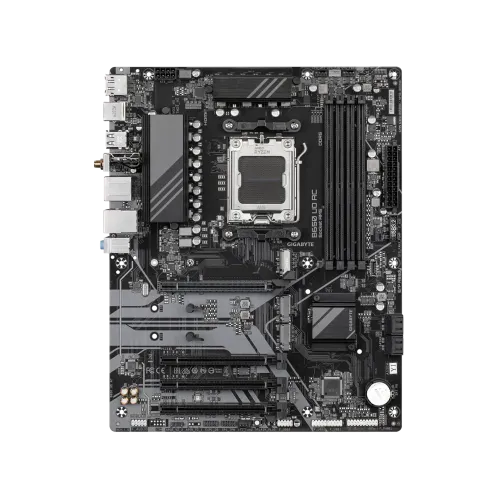

The GIGABYTE B650 UD AC is a high-performance ATX motherboard designed for AMD's latest processors, utilizing the AM5 socket to support AMD Ryzen 7000, 8000, and 9000 series processors. It offers robust performance and advanced features suitable for gaming and professional applications. The motherboard features a 6+2+2 phases digital VRM solution, ensuring stable and efficient power delivery, even under heavy loads, which supports overclocking and maintains system stability. It supports dual-channel DDR5 memory with four SMD DIMM slots, accommodating high-speed RAM modules and offering AMD EXPO and Intel XMP profiles for easy overclocking. The B650 UD AC includes one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, providing ultra-fast data transfer rates and improved system responsiveness. The EZ-Latch PCIe x16 slot simplifies the installation and removal of graphics cards with a quick-release design. Network connectivity is ensured through built-in Wi-Fi 802.11ac and a Gigabit Ethernet LAN port, offering fast and reliable options for online gaming and streaming. The motherboard also includes DisplayPort and HDMI outputs, supporting high-resolution displays and multiple monitor setups. The rear I/O features high-speed USB 10Gb/s ports for quick data transfers and peripheral connectivity. The Smart Fan 6 technology provides comprehensive cooling management with multiple temperature sensors and hybrid fan headers, including a FAN STOP function for quieter operation. The Q-Flash Plus feature allows users to update the BIOS without needing to install a CPU, memory, or graphics card, simplifying firmware updates. Overall, the GIGABYTE B650 UD AC is a well-rounded motherboard offering high-end features and connectivity for building a powerful and future-proof PC, making it an excellent choice for gamers, content creators, and enthusiasts alike.

Specifications

Chipset: AMD B650
RAM type: 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B650 UD AC
Graphics — Graphics: supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1; * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.; 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

Show all 27 specifications

Highlights — Features: 1 x DisplayPort, 1 x HDMI
Memory — Maximum Memory: supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus;
Connector & Ports — USB (s): CPU:; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support; CPU+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel; Chipset:; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header); Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 2 x DisplayPort, 1 x HDMI port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; ; 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs; - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; ; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors;

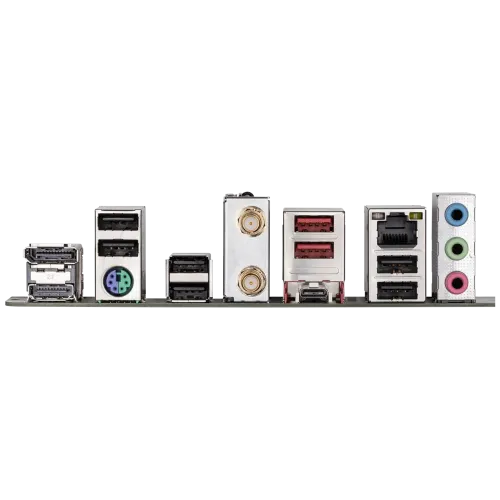

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 3 x USB 2.0/1.1 headers; 1 x Q-Flash Plus button; 1 x serial port header j; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x DisplayPort; 1 x HDMI port; 1 x PS/2 keyboard/mouse port; 2 x SMA antenna connectors (2T2R); 1 x USB Type-C port, with USB 3.2 Gen 1 support
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE); - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band; - BLUETOOTH 5.0; - Support for 11ac wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
