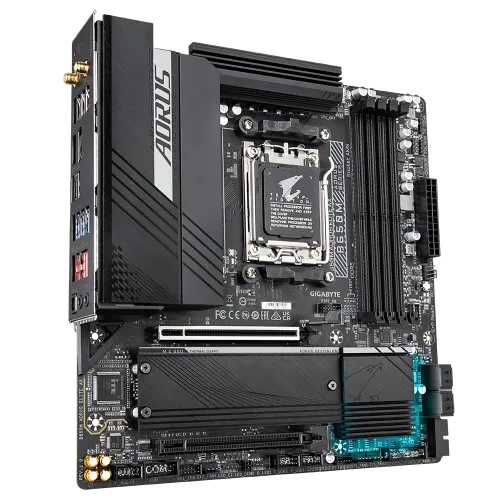

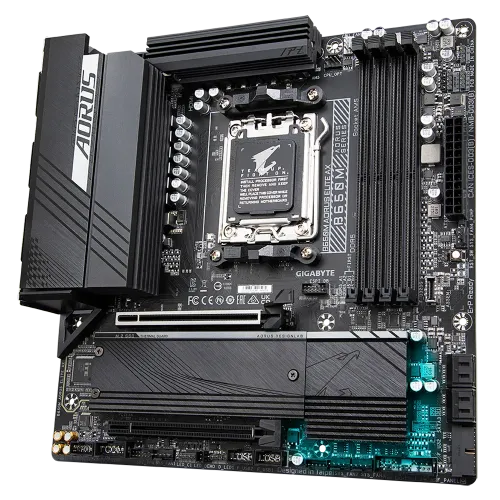

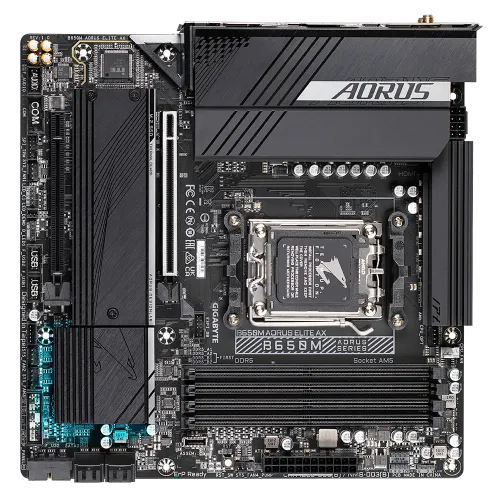

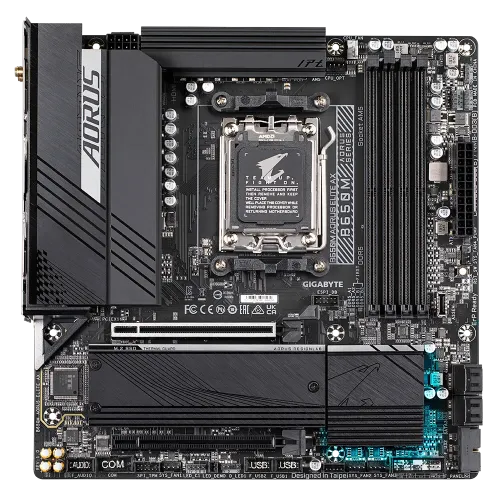

GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard

Name: GIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard
Brand: GIGABYTE
Price: 27900 BDT
Availability: InStock

Model: B650M AORUS ELITE AXItem #: gigabyte-b650m-aorus-elite-ax-motherboard

৳27,900~~৳29,000~~Save 4%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B650M AORUS ELITE AX Motherboard supports AMD Ryzen 8000 & 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with direct 12+2+1 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. It comes with 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCBs design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650M AORUS ELITE AX Motherboard comes with 2.5G LAN which provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking. It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation, The GIGABYTE B650M AORUS ELITE AX Motherboard comes with 3 years of warranty.

Specifications

Chipset: AMD B650
RAM type: 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: B650M AORUS ELITE AX
Graphics — Graphics: Integrated Graphics Processor:; 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version and HDR.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Show all 28 specifications

Highlights — Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 2 x Audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, up to 128GB, 6666(OC)

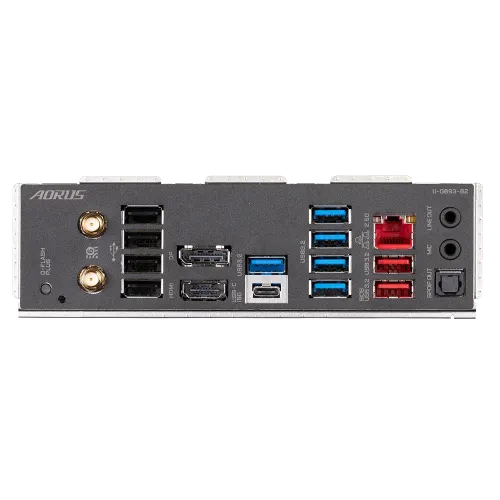

Connector & Ports — USB (s): CPU:; 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; CPU + USB 2.0 Hub:; 4 x USB 2.0/1.1 ports on the back panel; Chipset:; 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header; 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header); 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 3.2 Gen 1 Hub:; 4 x USB 3.2 Gen 1 ports on the back pane
Highlights — Graphics Output: 1x Display Port, 1 x HDMI
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPorts
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU); * Actual support may vary by CPU.; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x THB_U4 add-in card connector; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; Intel Wi-Fi 6E AX210 (For PCB rev. 1.1); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Compare with similar products

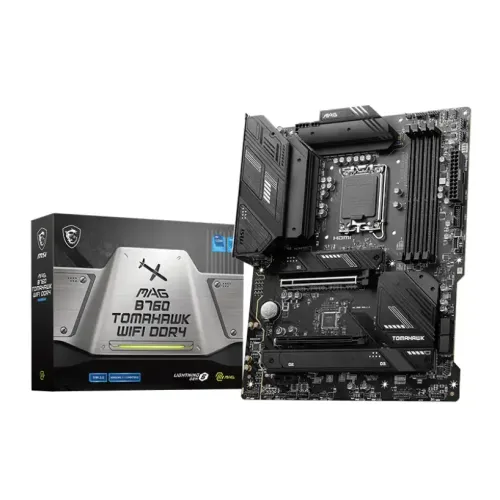

	This itemGIGABYTE B650M AORUS ELITE AX DDR5 AMD AM5 Micro-ATX Motherboard	MSIMSI PRO B860-P WIFI LGA 1851 ATX Motherboard	GIGABYTEGIGABYTE B850 EAGLE WIFI6E AMD AM5 DDR5 ATX Motherboard	MSIMSI MAG B760 TOMAHAWK WIFI DDR4 ATX Motherboard
