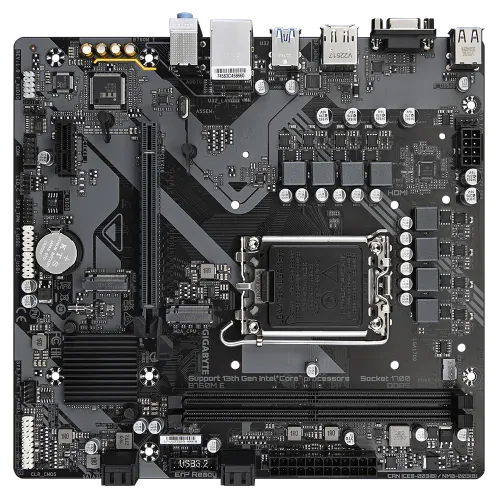

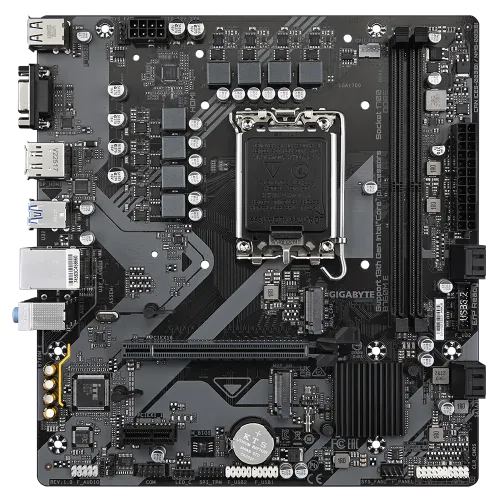

GIGABYTE B760M E DDR5 Micro ATX Motherboard

Name: GIGABYTE B760M E DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 15200 BDT
Availability: OutOfStock

Model: B760M EItem #: gigabyte-b760m-e-motherboard

৳15,200

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory module RAM type
Micro ATX Form Factor; 23.0cm x 21.5cm

Overview

The GIGABYTE B760M E DDR5 Micro ATX motherboard is crafted for users looking to push the limits of their system's performance and stay ahead in the ever-evolving world of computing. Supporting Intel’s 12th, 13th, and latest 14th-generation Core processors, this motherboard ensures maximum compatibility and enables smooth handling of demanding tasks, making it ideal for both gaming enthusiasts and professionals. At its core, the B760M E features a hybrid 6+1+1 phase digital VRM solution, providing a stable and efficient power delivery system that enhances CPU performance and ensures reliability under high workloads. This motherboard also excels in memory performance with its support for dual-channel DDR5. Equipped with two DIMM slots and XMP memory module support, it enables faster data transfers and more responsive applications. The leap to DDR5 memory, combined with the ease of upgrade options, makes it a future-proof choice for high-performance needs. The GIGABYTE B760M E is ready for next-generation speeds with two PCIe 4.0 x4 M.2 connectors. These slots facilitate ultra-fast data transfers, essential for gamers and content creators looking to reduce load times and boost productivity. Furthermore, the motherboard’s EZ-Latch design simplifies the installation of GPUs with its PCIe 4.0x16 slot, offering a quick-release mechanism that eliminates the need for tools. Connectivity is comprehensive, with DisplayPort, HDMI, and D-Sub options, allowing for flexible display configurations and multi-monitor setups. Coupled with GbE LAN, users benefit from fast and stable network connectivity, making it easy to stream, game, and transfer files without interruption. Efficient cooling is a priority with Smart Fan 6 technology, which includes multiple temperature sensors and hybrid fan headers. The fan stop feature further enhances the cooling efficiency and reduces noise by halting fans when the system is idle or under low load. This ensures quieter, energy-efficient operation while protecting the hardware during intensive tasks. The GIGABYTE B760M E DDR5 Micro ATX motherboard combines advanced features, future-ready compatibility, and a user-friendly design, making it an ideal choice for users seeking performance and convenience in their systems. Whether for gaming, productivity, or high-intensity computing, this motherboard provides a balanced, high-performance platform.

Buy GIGABYTE B760M E DDR5 Micro ATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory module
Form factor: Micro ATX Form Factor; 23.0cm x 21.5cm
Memory — Type: DDR5
Memory — Slots: 2
Highlights — Model: B760M E
Graphics — Graphics: Onboard Graphics; Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; ; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; ; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Show all 28 specifications

Highlights — Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Memory — Maximum Memory: Supporting up to 128 GB (64 GB single DIMM capacity) of system memory;
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Highlights — Supported RAM: 2x DDR5, Max 128GB 7200(OC)
Connector & Ports — USB (s): Chipset:; - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Connector & Ports — D-Sub (s): 1 x D-Sub port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB); - 4 x SATA 6Gb/s connectors;
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; ; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; ; 2 x USB 2.0/1.1 ports; 1 x D-Sub port; 1 x DisplayPort; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years Warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Compare with similar products

	This itemGIGABYTE B760M E DDR5 Micro ATX Motherboard	MSIMSI PRO B760M-P DDR5 mATX Motherboard	GIGABYTEGIGABYTE B650M K AMD AM5 Micro-ATX Motherboard	MSIMSI PRO B840M-B AMD AM5 mATX Motherboard
Price	৳15,200	৳15,000	৳15,200	৳15,300
Availability	Out of stock	In stock	In stock	In stock
Brand	GIGABYTE	MSI	GIGABYTE	MSI
RAM type	Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory module	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules	Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8000+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only
Form factor	Micro ATX Form Factor; 23.0cm x 21.5cm	mATX; 243.84mmx243.84mm	Micro ATX Form Factor; 24.4cm x 24.4cm	mATX; 226mmx243.84mm
Chipset	Intel B760 Express Chipset	INTEL B760	AMD B650	AMD B840
M.2 slots	—	—	—	2
