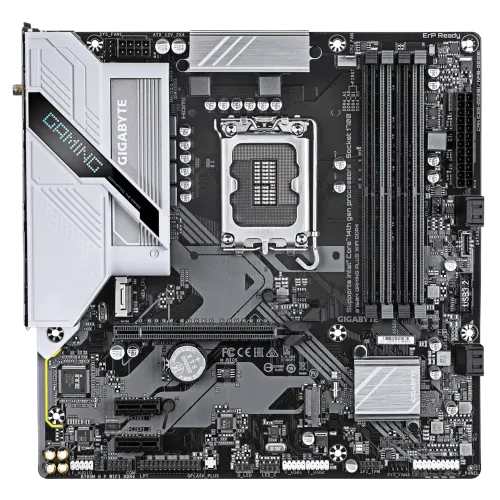

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

Name: GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard
Brand: GIGABYTE
Price: 19500 BDT
Availability: OutOfStock

Model: B760M GAMING PLUS WIFI DDR4Item #: gigabyte-b760m-gaming-plus-wifi-ddr4-motherboard

৳19,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard is a high-performance motherboard, perfect for gaming enthusiasts and multitaskers. Designed to support the latest Intel Core 14th, 13th, and 12th generation processors, this motherboard integrates advanced power management and robust connectivity to deliver reliable and efficient performance. With its sleek, compact micro-ATX form factor, it fits well in various gaming and workstation builds without compromising on capabilities. Built with a Hybrid 4+1+1 Phases Digital VRM Solution, this motherboard ensures stable power delivery even during intense workloads and gaming sessions, providing consistency and efficiency. This digital VRM setup enhances performance and system stability, making it an ideal choice for anyone needing both reliability and power in demanding scenarios. The B760M GAMING PLUS WIFI DDR4 is designed for high-speed memory and rapid storage capabilities. With Dual Channel DDR4 support and 4 DIMM slots, users can easily upgrade to a larger memory capacity, especially with XMP support for enhanced performance. For storage, it includes two PCIe 4.0 x4 M.2 connectors, which deliver faster data access speeds, reducing loading times and creating a smooth gaming experience. This motherboard is equipped with Wi-Fi 6 (802.11ax) and Gigabit Ethernet LAN, providing both fast wireless and wired networking options. This ensures lower latency and consistent internet speeds, which is essential for smooth gaming and streaming. The motherboard also includes versatile connection options, such as a Front USB-C 5Gb/s for high-speed data transfers, as well as DisplayPort and HDMI for flexible display setups. The Smart Fan 6 technology embedded in this board ensures efficient cooling with multiple temperature sensors and hybrid fan headers that include FAN STOP functionality. This intelligent cooling system helps optimize airflow, reducing noise while keeping the system cool during prolonged use. The B760M GAMING PLUS WIFI also features Q-Flash Plus, allowing users to update the BIOS without needing to install the CPU, memory, or graphics card. This user-friendly option simplifies system maintenance, ensuring easy updates to keep your setup running smoothly. This motherboard’s combination of high-speed networking, ample memory capacity, advanced cooling, and easy-to-use BIOS updates makes it an outstanding choice for anyone building a powerful, future-ready gaming or workstation PC.

Buy GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard from the best Motherboard Shop in BD

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: B760M GAMING PLUS WIFI DDR4
Graphics — Graphics: Onboard Graphics; Integrated Graphics Processor-Intel HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; ; ; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; ;
Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; ; ; Chipset:; - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Show all 28 specifications

Highlights — Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Memory — Maximum Memory: Supporting up to 128 GB (32 GB single DIMM capacity) of system memory;
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Connector & Ports — USB (s): Chipset:; - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); - 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x parallel port header; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 2 x SMA antenna connectors (2T2R); 1 x DisplayPort; 1 x HDMI port; 3 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years Warranty
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
