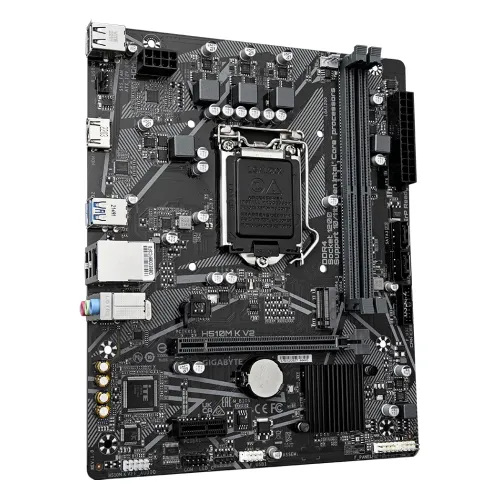

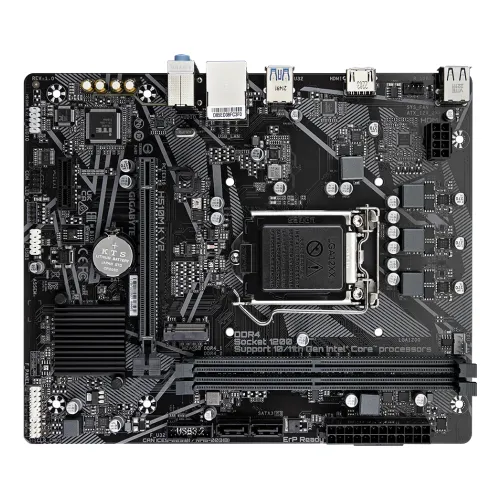

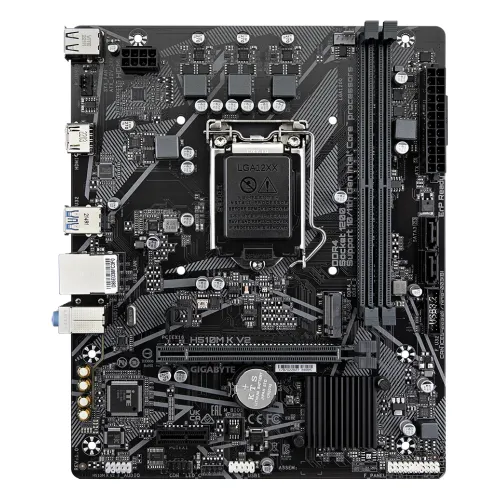

GIGABYTE H510M K V2 11th/10th Gen mATX Motherboard
Model: H510M K V2Item #: gigabyte-h510m-k-v2-motherboard
৳10,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H470 Express Chipset
- 1 M.2 slots
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.) RAM type
- Micro ATX Form Factor; 22.6cm x 18.5cm
Overview
The GIGABYTE H510M K V2 Motherboard is a dependable and affordable choice for building a mainstream PC, offering support for both 11th Gen and 10th Gen Intel Core processors. As part of the trusted GIGABYTE Motherboard lineup, it incorporates Ultra Durable technology with high-quality components, advanced thermal design, and anti-sulfur resistors to ensure long-lasting stability. This compact GIGABYTE 510 Motherboard comes in a micro-ATX form factor, making it suitable for smaller cases while still delivering essential features. It supports dual-channel DDR4 memory with two DIMM slots for up to 64GB RAM, and provides fast storage options through NVMe PCIe Gen3 x4 M.2 slots alongside SATA 6Gb/s connectors. Connectivity is enhanced with GbE LAN featuring bandwidth management, multiple USB 3.2 Gen 1 ports, and HDMI output for modern display setups. Cooling is managed by Smart Fan 5 technology, which uses multiple sensors and hybrid fan headers for efficient airflow control, while audio performance is boosted with 8-channel HD sound and high-quality capacitors. Compact, durable, and feature-rich, the GIGABYTE H510M K V2 Motherboard is an excellent balance of performance, reliability, and affordability, making it a versatile GIGABYTE 11th/10th Gen Motherboard for everyday computing and entry-level gaming builds.
Specifications
- Chipset
- Intel H470 Express Chipset
- M.2 slots
- 1
- RAM type
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MT/s memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (Please refer "Memory Support List" for more information.)
- Form factor
- Micro ATX Form Factor; 22.6cm x 18.5cm
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- H510M K V2
- Graphics — Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.; (Graphics specifications may vary depending on CPU support.)
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset:; 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Highlights — Features
- Intel GbE LAN, NVMe PCIe Gen3 M.2 Support
- Memory — Maximum Memory
- Supporting up to 64 GB
- Basic Information — BIOS
- 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices; * Supported with an additional PCIe to M.2 NVMe SSD adapter card; RAID 0, RAID 1, and RAID5 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for APP Center; * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; Ambient LED; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Highlights — Supported RAM
- DDR4 2933Mhz, 2 DIMMs, up to 64 GB
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- Highlights — Graphics Output
- 1 x HDMI
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Basic Information — Supported CPU
- LGA1200 package:; 11th/10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors; L3 cache varies with CPU
- Connector & Ports — Supported Storage
- Chipset:; 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support); 2 x SATA 6Gb/s connectors;
- Connector & Ports — Internal I/O Ports
- Internal I/O Connectors; ; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x serial port header; 1 x Clear CMOS jumper; ; Back Panel Connectors; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 03 Years Warranty
