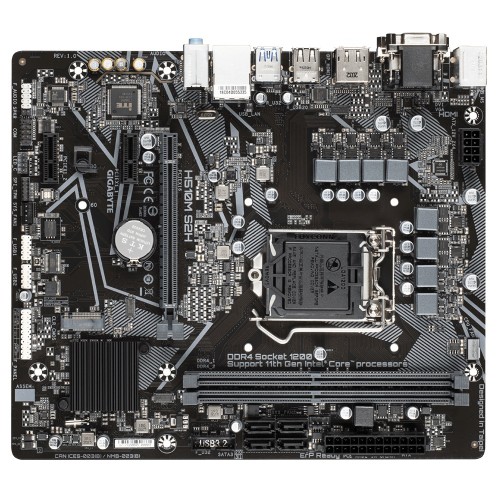

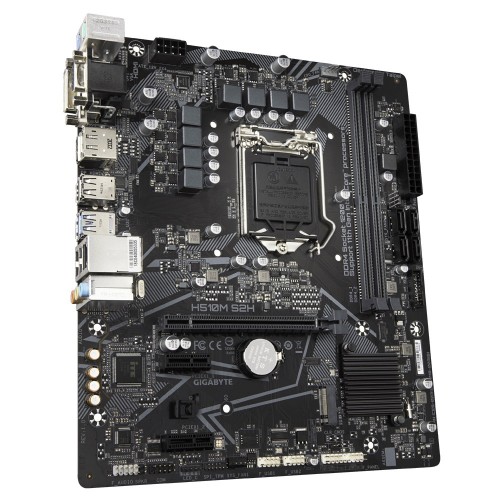

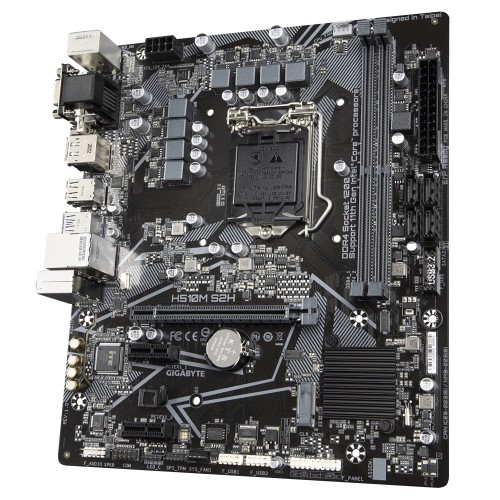

GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
Model: H510M S2HItem #: gigabyte-h510m-s2h-motherboard
৳10,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H510 Express Chipset;
- 1 M.2 slots
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 24.4cm x 21.0cm;
Overview
GIGABYTE H510M S2H Motherboard supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs and Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It comes with GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It comes with 4 Display Interfaces Support. It comes with high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users' specified temperature point. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very Simple and Easy Use. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. It has 3 Years Warranty
Specifications
- Chipset
- Intel H510 Express Chipset;
- M.2 slots
- 1
- RAM type
- 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 24.4cm x 21.0cm;
- Memory — Type
- Dual channel memory architecture;
- Memory — Slots
- 2 x DDR4 DIMM
- Highlights — Model
- H510M S2H
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter.; 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.; Support for up to 2 displays at the same time
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCI Express x16 slot, running at x16; (The PCI Express x16 slot conforms to PCI Express 4.0 standard.); * Supported by 11th Generation processors only.; 2 x PCI Express x1 slots; (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
- Memory — Maximum Memory
- 64 GB (32 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz;
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks;
- Others — Bundled Software
- Norton Internet Security (OEM version); Realtek 8118 Gaming LAN Bandwidth Control Utility
- Others — Special Features
- Support for APP Center; @BIOS; Ambient LED; EasyTune; Fast Boot; Game Boost; ON/OFF Charge; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); Chipset+USB 2.0 Hub:; 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
- Connector & Ports — D-Sub (s)
- 1 x D-Sub port;
- Connector & Ports — DVI-D (s)
- 1 x DVI-D port;
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbit/100 Mbit);
- Basic Information — Supported CPU
- 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors; 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors; * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
- Connector & Ports — Display Port (s)
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;
- Connector & Ports — Supported Storage
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support); * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.; 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 2 x system fan headers; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only);
Compare with similar products
 This itemGIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard |  GIGABYTEGigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard |  MSIMSI PRO A620M-E AMD AM5 mATX Motherboard |  ColorfulColorful BATTLE-AX B550M-D PRO V14 DDR4 AM4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,000 | ৳10,000 | ৳10,000 | ৳10,000 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | GIGABYTE | GIGABYTE | MSI | Colorful |
| M.2 slots | 1 | 1 | — | — |
| RAM type | 11th Generation Intel Core i9/i7/i5 processors:; Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i9/i7 processors:; Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel Core i5/i3/Pentium/Celeron processors:; Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Dual channel memory architecture; Support for DDR4 2933/2667/2400/2133 MT/s memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology |
| Form factor | Micro ATX Form Factor; 24.4cm x 21.0cm; | Micro ATX Form Factor; 24.4cm x 21.5cm; | mATX; 211mmx243.84mm | M-ATX; 197mm x 240mm |
| Chipset | Intel H510 Express Chipset; | AMD B450 | AMD A620 | AMD B550M |
