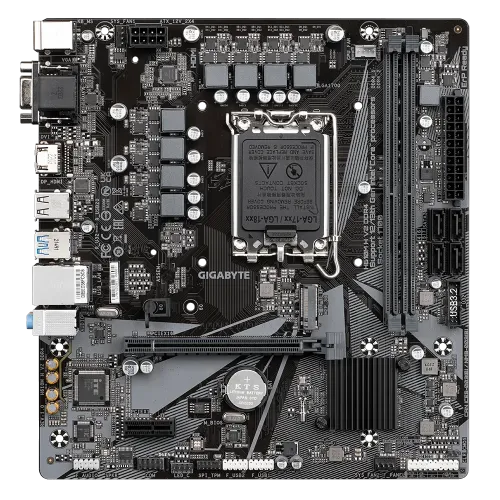

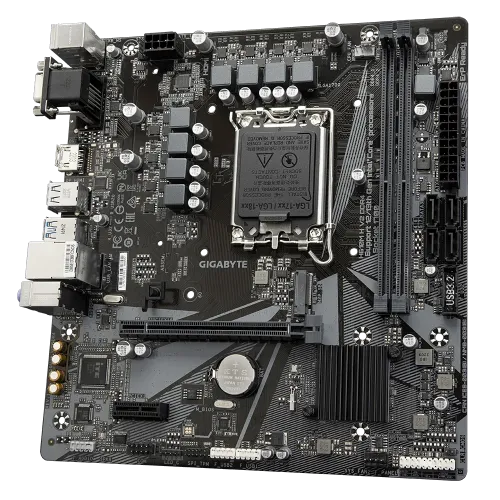

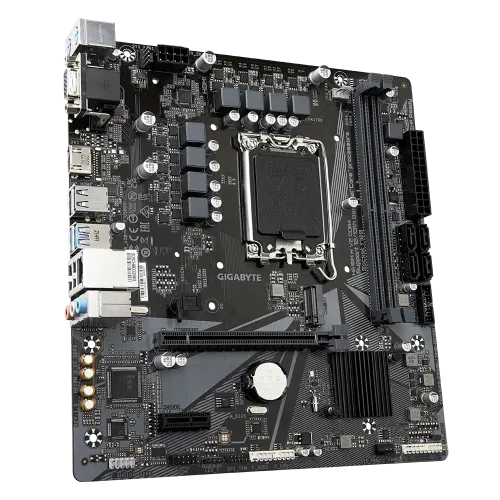

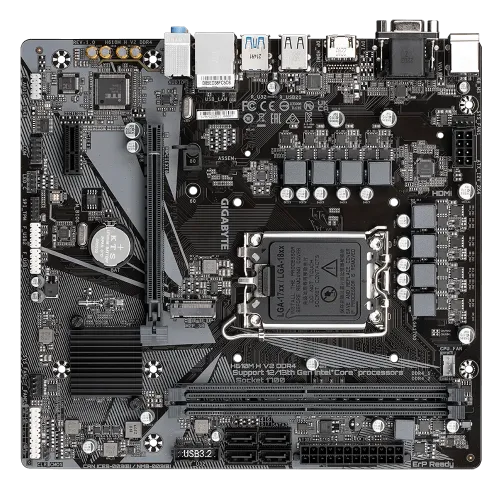

GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
Model: H610M H V2 DDR4Item #: gigabyte-h610m-h-v2-ddr4-motherboard
৳10,600
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Express Chipset
- 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 23.0cm x 21.5cm
Overview
The GIGABYTE H610M H V2 DDR4 features LGA1700 socket Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. GIGABYTE H610M H V2 DDR4 13th Gen Motherboard features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays.
Specifications
- Chipset
- Intel H610 Express Chipset
- RAM type
- 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 23.0cm x 21.5cm
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DDR DIMM sockets
- Highlights — Model
- H610M H V2 DDR4
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports
- Expansion Slots — PCI
- CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Show all 26 specificationsShow fewer
- Highlights — Features
- Realtek GbE LAN
- Memory — Maximum Memory
- Up to 64 GB (32 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI 2.0 port
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for APP Center; * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; Ambient LED; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install
- Highlights — Supported RAM
- 2 x DDR4 up to 64 GB 3200MHz
- Connector & Ports — USB (s)
- Chipset:; 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; 4 x USB 2.0/1.1 ports available through the internal USB headers
- Highlights — Graphics Output

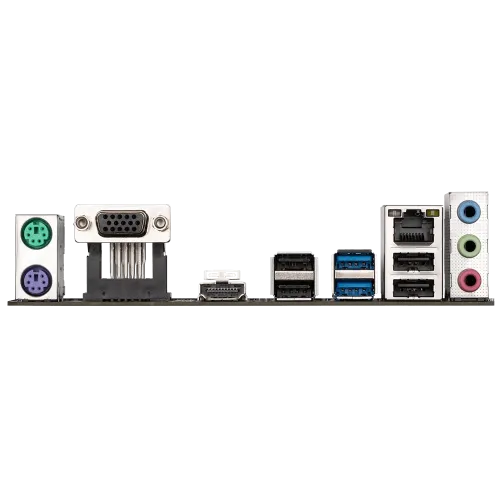

- 1 x D-Sub, 1 x HDMI
- Connector & Ports — D-Sub (s)
- 1 x D-Sub port
- Connector & Ports — LAN Port (s)
- Intel GbE LAN chip (1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
- Connector & Ports — Supported Storage
- Chipset:; 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Compare with similar products
 This itemGIGABYTE H610M H V2 DDR4 Micro ATX Motherboard |  GIGABYTEGIGABYTE H610M K DDR4 Micro ATX Motherboard |  GIGABYTEGIGABYTE H610M H DDR4 Micro ATX Motherboard |  MSIMSI PRO H610M-G DDR4 Micro-ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,600 | ৳10,500 | ৳10,600 | ৳10,600 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | MSI |
| RAM type | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | Micro ATX Form Factor; 23.0cm x 21.5cm | Micro ATX Form Factor; 22.6cm x 18.5cm | Micro ATX Form Factor; 23.0cm x 21.5cm | mATX Form Factor; 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Chipset | Intel H610 Express Chipset | Intel H610 Express Chipset | Intel H610 Express Chipset | Intel H610 Chipset |
