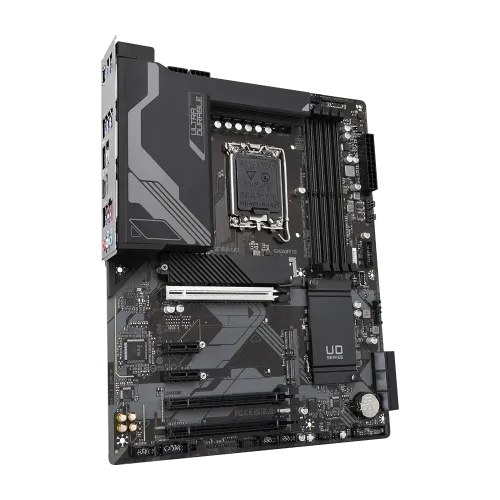

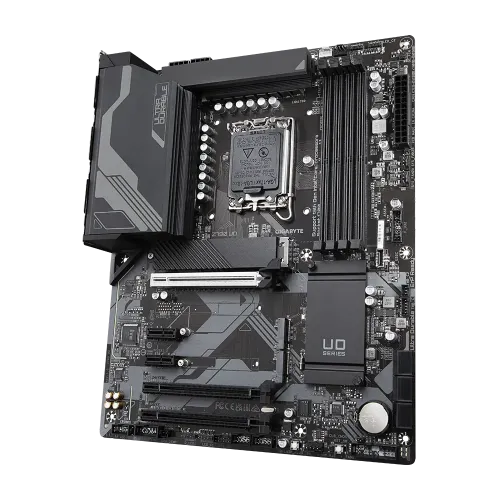

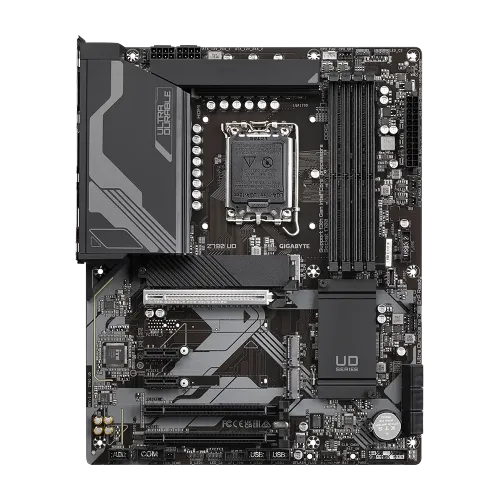

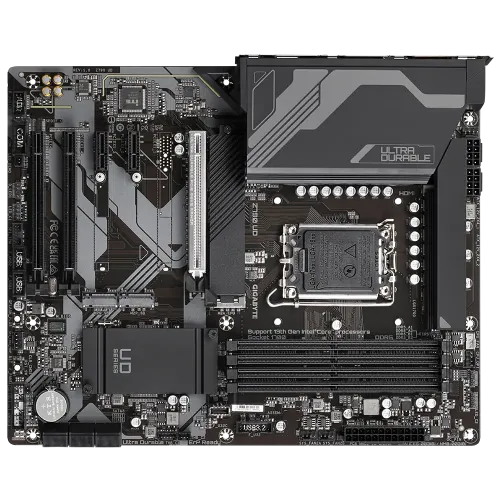

GIGABYTE Z790 UD ATX Motherboard

Name: GIGABYTE Z790 UD ATX Motherboard
Brand: GIGABYTE
Price: 29500 BDT
Availability: OutOfStock

Model: Z790 UDItem #: gigabyte-z790-ud-motherboard

৳29,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Express Chipset
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
ATX Form Factor; 30.5cm x 24.4cm

Overview

The GIGABYTE Z790 UD ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+1 Phases Digital VRM Solution. The 14th Gen motherboard comes with 4x SMD DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. The motherboard is equipped with 3x PCIe 4.0 x4 M.2 Connectors. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. It has PCIe 5.0 x16 Slot with Quick Release & Screwless Design. The GIGABYTE Z790 UD is equipped with a 2.5GbE LAN that provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 UD 14th Gen Motherboard comes with 3 years of warranty.

Specifications

Chipset: Intel Z790 Express Chipset
RAM type: 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: ATX Form Factor; 30.5cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM sockets
Highlights — Model: Z790 UD
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4); 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4); 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3); Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Show all 27 specifications

Highlights — Features: 2.5GbE LAN
Memory — Maximum Memory: 128GB (32 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)

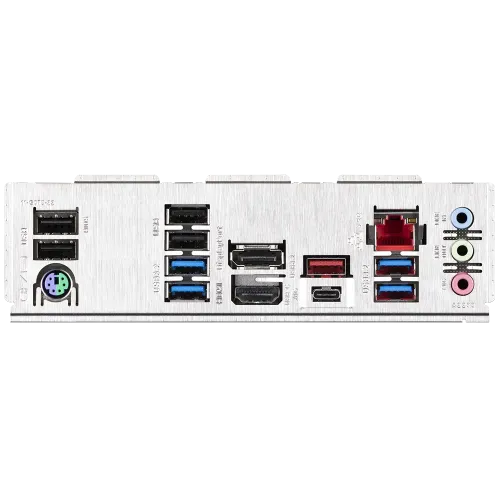

Connector & Ports — USB (s): Chipset:; 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support; 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel; 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 1 x HDMI, 1 x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB); 6 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 3 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 2 x Thunderbolt add-in card connectors; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
