Shop all MSI products

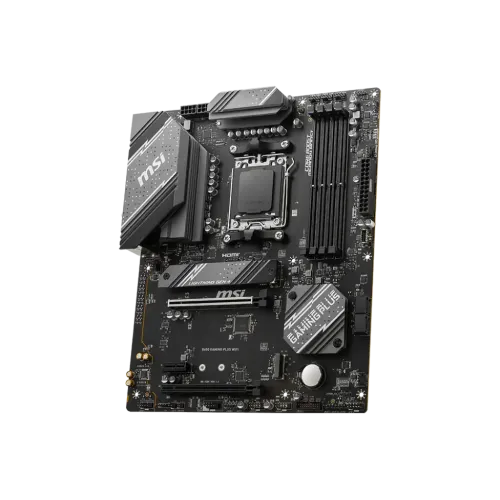

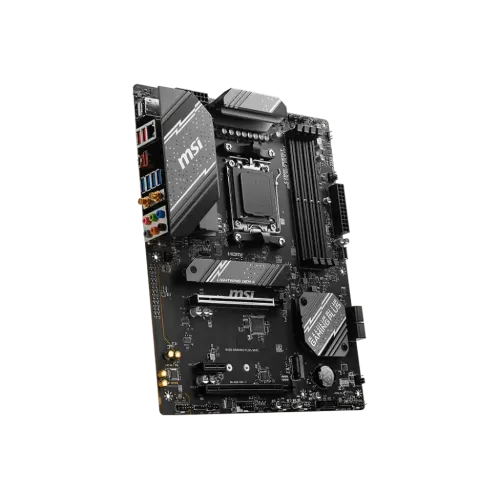

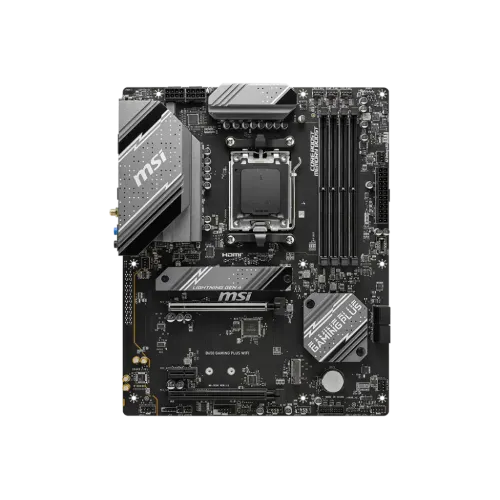

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
Model: B650 GAMING PLUS WIFIItem #: msi-b650-gaming-plus-wifi-motherboard
৳22,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO RAM type
- ATX; 243.84mmx304.8mm Form factor
Overview
The MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard supports AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 memory, allowing for dual-channel DDR5 operation at speeds of 6000+MHz (OC). The motherboard features an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. It also incorporates a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems. The MSI B650 GAMING PLUS WIFI Motherboard provides lightning-fast gaming experiences with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. It also includes a 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities, delivering a secure, stable, and fast network connection. The MSI B650 GAMING PLUS WIFI motherboard is built with a high-quality PCB, featuring a 6-layer design made with 2oz thickened copper for durability and reliability. It supports Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience.
Specifications
- Chipset
- AMD B650
- RAM type
- Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
- Form factor
- ATX; 243.84mmx304.8mm
- Memory — Type
- DDR5
- Memory — Slots
- 4 DIMMs
- Highlights — Model
- B650 GAMING PLUS WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Supports DP1.4, maximum resolution of 4K 60Hz; AMD MULTI-GPU Support
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Show all 25 specificationsShow fewer
- Highlights — Features
- 2.5G LAN with Wi-Fi 6E Solution
- Memory — Maximum Memory
- 192GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5 6000+(OC) MHz
- Connector & Ports — USB (s)

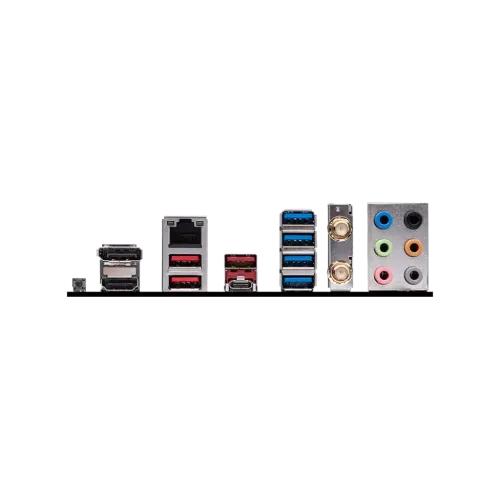

- 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI, 1x Display Port
- Connector & Ports — LAN Port (s)
- Realtek 8125BG 2.5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI B650 GAMING PLUS WIFI AMD AM5 Motherboard |  MSIMSI B760 GAMING PLUS WIFI ATX Motherboard |  GIGABYTEGigabyte B550 AORUS ELITE Gaming AMD Motherboard |  MSIMSI PRO B760-P WIFI DDR4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳22,500 | ৳22,500 | ৳22,500 | ৳22,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | MSI | GIGABYTE | MSI |
| RAM type | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6000+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | 3rd Gen AMD Ryzen Processors:; Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile (XMP) |
| Form factor | ATX; 243.84mmx304.8mm | ATX; 243.84mmx304.8mm | ATX Form Factor; 30.5cm x 24.4cm | ATX; 243.84mmx304.8mm |
| Chipset | AMD B650 | INTEL B760 | AMD B550 | INTEL B760 |
| M.2 slots | — | — | 1 | — |
