MSI H310M Pro-M2 Intel 9th Gen Motherboard
Model: MSI H310M Pro-M2Item #: msi-h310m-pro-m2-motherboard
৳10,300
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H310 Chipset
- 1 M.2 slots
- Supports DDR4 2666/ 2400/ 2133 MHz RAM type
- m-ATX Form Factor; 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
Overview

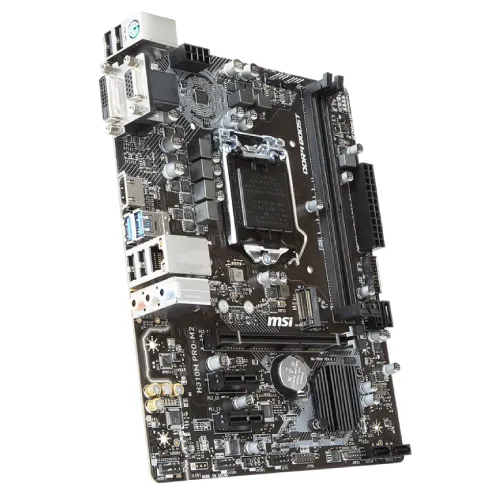

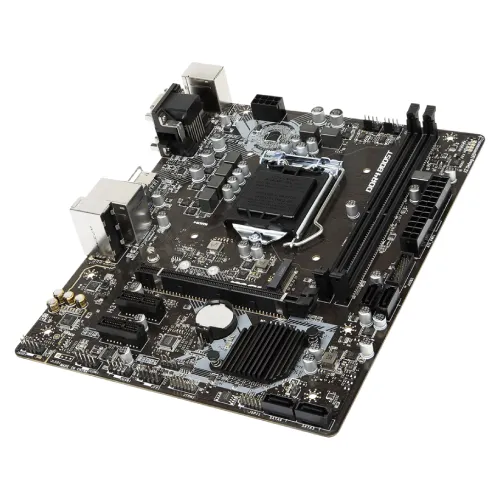

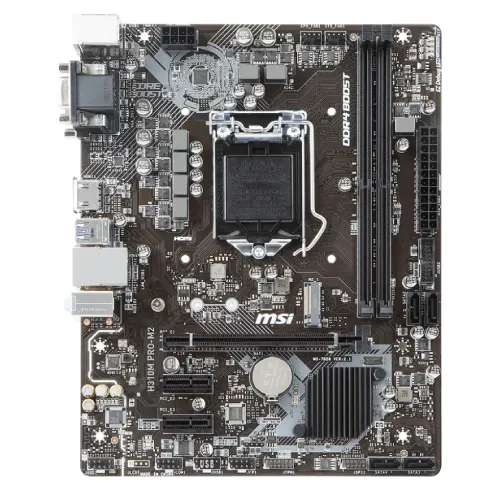

The MSI H310M Pro-M2 Intel 9th Gen Motherboard is a versatile and reliable choice to build a budget-range PC. This MSI motherboard is compatible with 9th and 8th generation Intel Core, Pentium Gold, and Celeron processors via an LGA 1151 socket. The MSI 9 gen motherboard has dual-channel DDR4 memory slots that can accommodate up to 32GB of RAM at speeds of up to 2666MHz, resulting in seamless multitasking and performance. This MSI H310 Motherboard has VGA, DVI-D, and HDMI graphics interfaces, and it can support up to 4K resolution at 30Hz. The storage options include an M.2 slot for high-speed SSDs and four SATA 6Gb/s connections for extra storage devices. The MSI H310M Pro-M2 also has Realtek ALC887 Codec for immersive 7.1-channel high-definition audio and Intel I219-V Gigabit LAN for fast and reliable internet connectivity. With its micro-ATX form factor, this motherboard is compatible with a wide range of PC cases, making it an affordable yet powerful alternative for both home and office use.
Specifications
- Chipset
- Intel H310 Chipset
- M.2 slots
- 1
- RAM type
- Supports DDR4 2666/ 2400/ 2133 MHz
- Form factor
- m-ATX Form Factor; 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
- Memory — Type
- Dual channel memory architecture; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
- Memory — Slots
- 2 x DDR4 memory slots
- Highlights — Model
- MSI H310M Pro-M2
- Graphics — Graphics

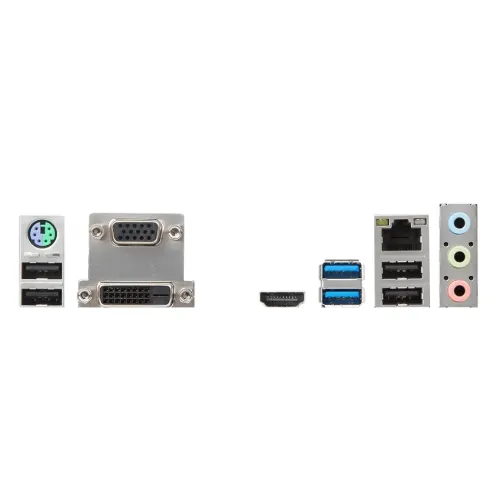

- 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz; 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
Show all 24 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCIe 3.0 x16 slot; 2 x PCIe 2.0 x1 slots
- Highlights — Features
- Realtek ALC887 Codec, 1 x M.2 slot (Key M)
- Memory — Maximum Memory
- 32GB
- Connector & Ports — HDMI
- 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
- Basic Information — Audio
- 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- Realtek ALC887 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — USB (s)
- Intel H310 Chipset; 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors); 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
- Connector & Ports — VGA (s)
- 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
- Highlights — Graphics Output
- 1x HDMI, 1x DVI, 1x VGA
- Connector & Ports — DVI-D (s)
- 1x DVI-D port, supports a maximum resolution of 1920x1200@60H
- Connector & Ports — LAN Port (s)
- 1 x Intel I219-V Gigabit LAN controller
- Basic Information — Supported CPU
- Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Connector & Ports — Supported Storage
- 4 x SATA 6Gb/s ports; 1 x M.2 slot (Key M); Support up to PCIe 2.0 x4 and SATA 6Gb/s; Supports 2242/ 2260 /2280 storage devices
- Connector & Ports — Internal I/O Ports
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin system fan connector; 1 x Front panel audio connector; 1 x Serial port connector; 2 x Front panel connectors; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Clear CMOS jumper
- Warranty Information — Manufacturing Warranty
- 03 years Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x TPM module connector;
Compare with similar products
 This itemMSI H310M Pro-M2 Intel 9th Gen Motherboard |  AsusASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard |  MSIMSI PRO H610M-B DDR4 Micro-ATX Motherboard |  AsusAsus PRIME H610M-CS D4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,300 | ৳10,300 | ৳10,300 | ৳10,300 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | Asus | MSI | Asus |
| M.2 slots | 1 | 1 | — | 1 |
| RAM type | Supports DDR4 2666/ 2400/ 2133 MHz | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.; * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II |
| Form factor | m-ATX Form Factor; 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) | mATX Form Factor; 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) | M-ATX Form Factor; 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Chipset | Intel H310 Chipset | Intel H470 Chipset | Intel H610 Chipset | Intel H610 Chipset |
