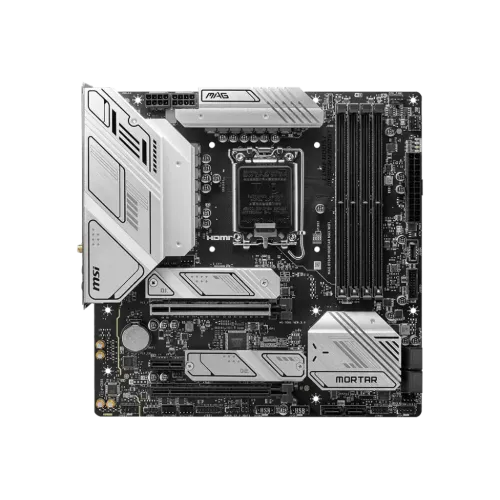

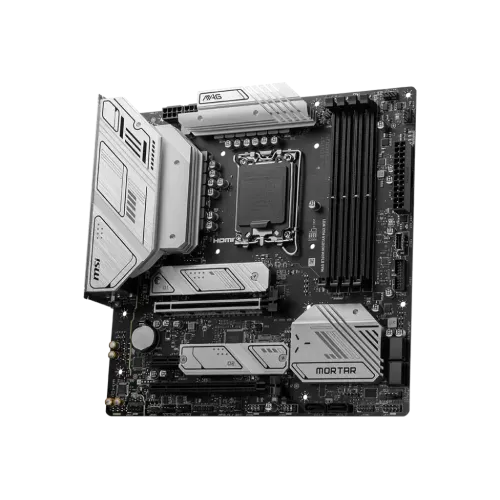

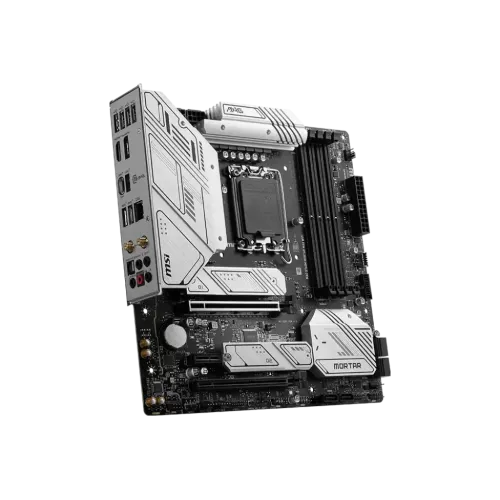

MSI MAG B760M MORTAR MAX WIFI mATX Motherboard

Name: MSI MAG B760M MORTAR MAX WIFI mATX Motherboard
Brand: MSI
Price: 25500 BDT
Availability: OutOfStock

Model: MAG B760M MORTAR MAX WIFIItem #: msi-mag-b760m-mortar-max-wifi-motherboard

৳25,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

INTEL B760 Chipset
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile RAM type
mATX; 220mmx243.84mm Form factor

Overview

The MSI MAG B760M MORTAR MAX WIFI motherboard is designed to deliver exceptional performance and reliability for gaming and professional use. It supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket. The motherboard also supports DDR5 memory with speeds up to 7000+(OC) MHz, providing fast and efficient data processing. With its enhanced power design featuring a 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost, the 14th Gen Motherboard ensures stable power delivery and optimal performance. The OC Engine technology maximizes the CPU's power potential. The MSI MAG B760M MORTAR MAX WIFI Motherboard offers lightning-fast gaming experiences with a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectivity. It incorporates a premium thermal solution with an extended heatsink design and M.2 Shield Frozr to keep temperatures in check during intensive workloads. The motherboard's high-quality 6-layer PCB, made with 2oz thickened copper and server-grade materials, ensures durability and reliability.

Specifications

Chipset: INTEL B760
RAM type: Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile
Form factor: mATX; 220mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: MAG B760M MORTAR MAX WIFI
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz
Expansion Slots — PCI: 2x PCI-E x16 slot; Supports x16/x4; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Show all 25 specifications

Highlights — Features: 2x M.2 slot, 2.5G LAN with Intel Wi-Fi 6E
Memory — Maximum Memory: 192GB
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Others — Special Features: 4x EZ Debug LED
Highlights — Supported RAM: 4x DDR5, Max 192GB 7000+(OC) MHz

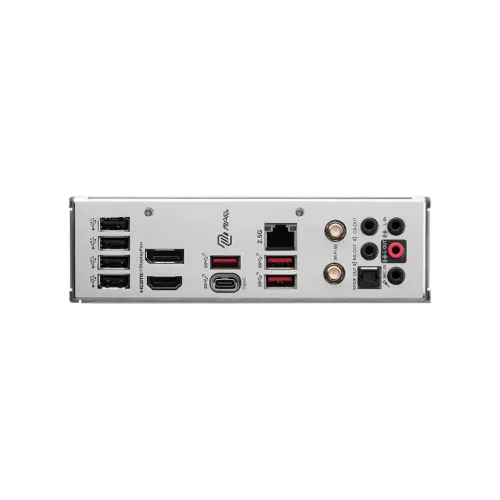

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 3.2 Gen1 Type A (Front); 3x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front); 1x USB 3.2 Gen2x2 Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5Gbps LAN
Basic Information — Supported CPU: Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1700
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 6x SATA 6G
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen2 Type C ports
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth 5.3, FIPS, FISMA
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

	This itemMSI MAG B760M MORTAR MAX WIFI mATX Motherboard	ASRockASRock B850M Pro RS WiFi AM5 mATX Motherboard	MSIMSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard	GIGABYTEGIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
Price	৳25,500	৳25,500	৳25,500	৳25,500
Availability	Out of stock	In stock	In stock	In stock
Brand	MSI	ASRock	MSI	GIGABYTE
RAM type	Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7000+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Form factor	mATX; 220mmx243.84mm	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm	mATX; 243.84mmx243.84mm	ATX Form Factor; 30.5cm x 24.4cm
Chipset	INTEL B760	AMD B850	INTEL B760	AMD B650
M.2 slots	—	1	3	—
