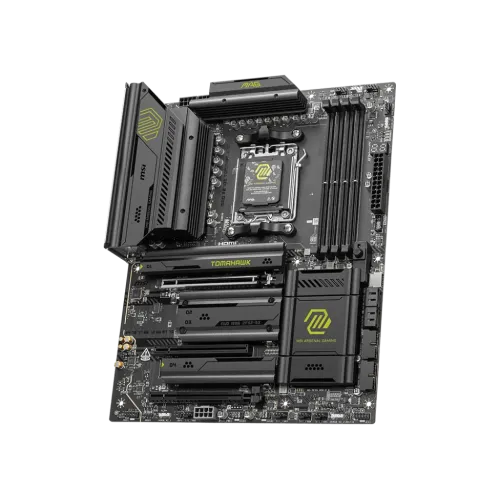

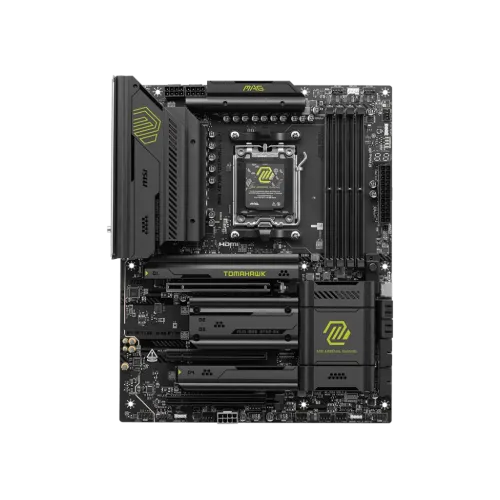

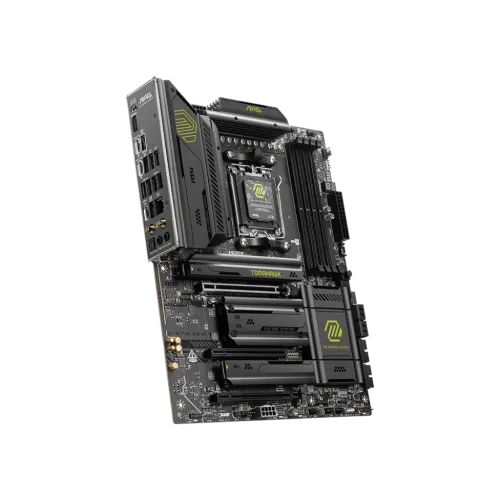

MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard

Name: MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard
Brand: MSI
Price: 53100 BDT
Availability: InStock

Model: MAG X870E TOMAHAWK WIFIItem #: msi-mag-x870e-tomahawk-wifi-motherboard

৳53,100~~৳58,300~~Save 9%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870E Chipset
4 M.2 slots
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only* RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard is a powerful, ready for the future platform designed specifically for gamers and power users that want unparalleled stability, thermal performance, and cutting-edge connectivity. This MSI MAG X870E TOMAHAWK WIFI Motherboard is based on the sophisticated AMD X870E chipset and is compatible with the newest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, as well as the sturdy AM5 socket. It supports up to 256GB of DDR5 UDIMM across four DIMM slots, giving speeds ranging from DDR5 4800 MT/s JEDEC to an overclocked DDR5 8400+ MT/s, and has AMD EXPO profiles, dual-channel mode, and CUDIMM compatibility. Optimized memory routing on an 8-layer PCB made with 2oz thickened copper ensures signal integrity and consistent performance, while double-latch DIMM slots boost installation reliability. This MSI MAG X870E TOMAHAWK WIFI motherboard features triple PCIe x16 slots, with the primary slot offering full PCIe 5.0 x16 bandwidth, perfect for next-gen GPUs, while other slots support PCIe 4.0 and 3.0, enabling wide expansion options. For storage, the MSI MAG X870E TOMAHAWK WIFI ATX Motherboard includes four ultra-fast M.2 slots—two PCIe 5.0 x4 CPU sourced and two PCIe 4.0 x4 chipset sourced—supporting RAID 0/1/5/10 configurations depending on CPU, plus four SATA 6Gb/s ports for traditional drives. High-speed networking is delivered via a Realtek 8126 5G LAN and Wi-Fi 7 module, which includes Bluetooth 5.4, MLO, and up to 5.8Gbps wireless throughput. Rear I/O connectivity is extensive, including USB 40Gbps Type-C, USB 20Gbps Type-C, and multiple USB 10Gbps and 5Gbps ports, alongside USB4 with DisplayPort 1.4 and HDMI 2.1, supporting up to 8K at 60Hz resolution with compatible processors. Audio is powered by Realtek ALC4080, offering 7.1-channel high-resolution output with Audio Boost 5, ensuring a rich and immersive sound experience. With a 14+2+1 Duet Rail Power System, dual 8-pin CPU connectors, and additional PCIe power input, the MSI Motherboard ensures stable power delivery even under heavy loads. Advanced thermal features like Frozr Guard, thermal pads, extended heatsinks, and EZ M.2 Shield Frozr II guarantee optimal cooling. Designed with user convenience in mind, it includes EZ Debug LEDs, EZ M.2 Clip II, and EZ PCIe Release for simplified DIY building. With TPM 2.0 support, ARGB headers, and full compatibility with modern gaming and productivity setups, the MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard stands out as a top-tier choice for next-gen PC builds.

Specifications

Chipset: AMD X870E
M.2 slots: 4
RAM type: Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4x DIMMs
Highlights — Model: MAG X870E TOMAHAWK WIFI
Graphics — Graphics: 1x HDMI; Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz; 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Show all 27 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); ; PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Highlights — Features: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; ; *RAID 5 configuration is only supported by Ryzen 9000 series processors.; *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-bit/384kHz playback on front panel; Supports S/PDIF output
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Special Features: 4x EZ Debug LED; 1x EZ Digit Debug LED
Highlights — Supported RAM: 4x DDR5, up to 8400 (OC) MT/s

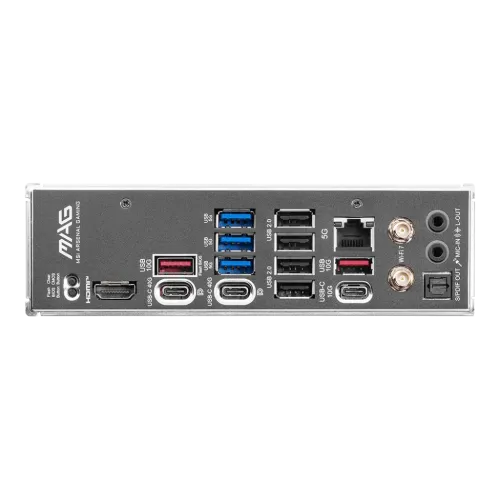

Connector & Ports — USB (s): 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 2x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Connector & Ports — LAN Port (s): 1x Realtek 8126 5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 2x Type-C DisplayPort
Connector & Ports — Supported Storage: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; ; M.2_1 slot (From CPU); • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors); ; M.2_2 slot (From CPU); • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; ; Supports Bluetooth® 5.4, MLO, 4KQAM
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0)

Compare with similar products

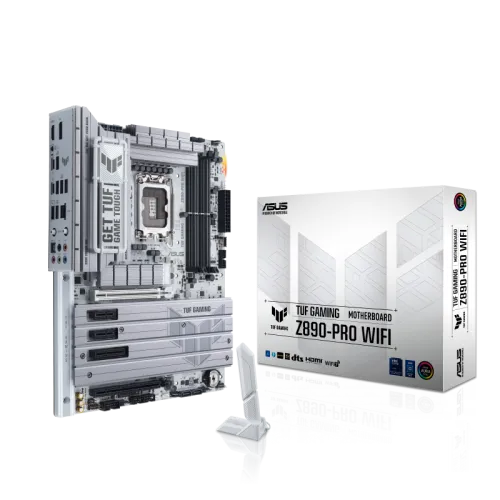

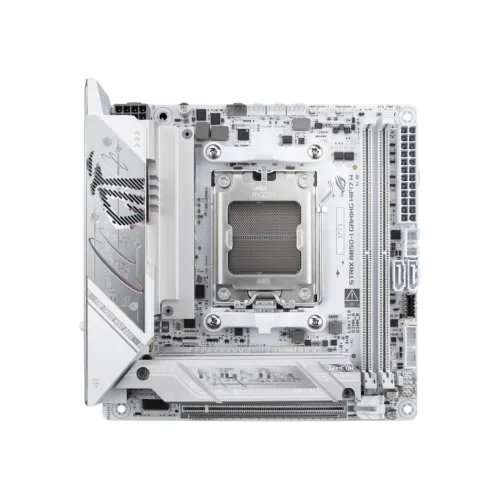

	This itemMSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard	AsusAsus ROG Strix B850-I Gaming WiFi7 W AM5 Mini-ITX Motherboard	GIGABYTEGIGABYTE X870E AORUS PRO ICE DDR5 AM5 ATX Motherboard	AsusASUS TUF GAMING Z890-PRO WIFI LGA 1851 ATX Gaming Motherboard
Price	৳53,100	৳52,500	৳52,500	৳53,200
Availability	In stock	In stock	Out of stock	In stock
Brand	MSI	Asus	GIGABYTE	Asus
M.2 slots	4	2	—	4
RAM type	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*	Supports up to ; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 9600+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ; ECC and Non-ECC Un-buffered DIMM	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme; Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)	Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
Form factor	ATX; 243.84mmx304.8mm	Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17 cm x 17 cm)	ATX Form Factor; 30.5cm x 24.4cm	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Chipset	AMD X870E	AMD B850	AMD X870	Intel Z890 Chipset
