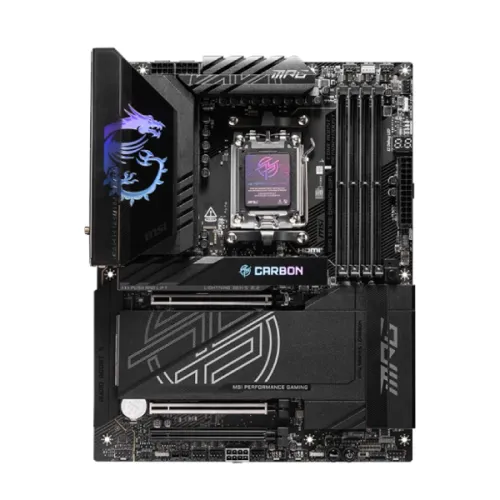

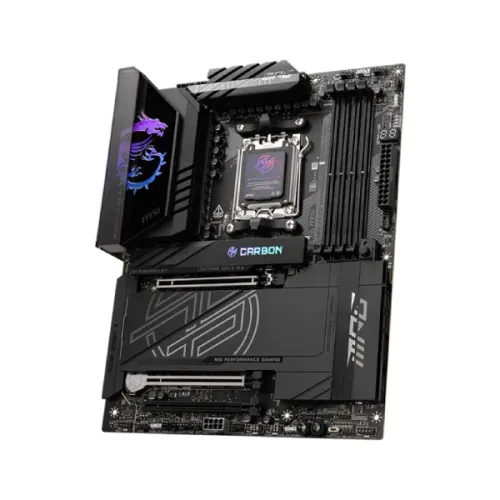

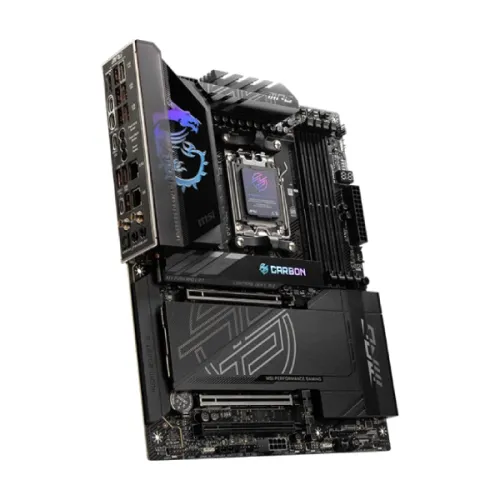

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard

Name: MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard
Brand: MSI
Price: 64100 BDT
Availability: OutOfStock

Model: MPG X870E CARBON WIFIItem #: msi-mpg-x870e-carbon-wifi-motherboard

৳64,100

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870E Chipset
4 M.2 slots
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s RAM type
ATX; 243.84mmx304.8mm Form factor

Overview

The MSI MPG X870E CARBON WIFI Motherboard is designed to compatible with the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors, providing a stable platform for high-performance computing. It has an AM5 socket and supports up to 256GB of DDR5 memory with amazing overclocking rates of up to 8400 MT/s. This MSI DDR5 motherboard includes three PCI-E x16 slots that support PCIe 5.0 and 4.0 configurations for modern graphics cards. The MSI MPG X870E CARBON WIFI Motherboard includes onboard graphics options such as HDMI 2.1 and two Type-C DisplayPort outputs, which support high-resolution video up to 8K at 60Hz. The Realtek ALC4080 Codec provides high-fidelity audio with 7.1-channel capability and S/PDIF output to ensure immersive sound quality. The MSI MPG X870E CARBON WIFI DDR5 Motherboard has four M.2 slots and four SATA 6G connections, as well as RAID compatibility for SATA and M.2 NVMe for users that require a lot of storage space. MSI MPG X870E CARBON WIFI ATX Motherboard features many USB ports, including USB 2.0, USB 5Gbps, USB 10Gbps, and USB 40Gbps Type-C interfaces for quick data transfer and networking. The network is powered by Realtek 5G and 2.5G LAN, and the onboard Wi-Fi 7 solution supports MU-MIMO and Bluetooth 5.4 for seamless wireless connectivity. The cooling system has numerous fan headers and compatibility for advanced cooling solutions, assuring peak thermal performance. In addition, MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard features RGB lighting with EZ Debug LED and EZ Digit Debug LED for a visually beautiful appearance.

Specifications

Chipset: AMD X870E
M.2 slots: 4
RAM type: Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8400+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 4800+ MT/s
Form factor: ATX; 243.84mmx304.8mm
Memory — Type: DDR5
Memory — Slots: 4 DIMMs
Highlights — Model: MPG X870E CARBON WIFI
Graphics — Graphics: 1x HDMI; Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz; 2x Type-C DisplayPort; USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Show all 24 specifications

Expansion Slots — PCI: 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 & PCI_E2 slots; • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor); PCI_E3 slot; • Supports up to PCIe 4.0 x4; * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Highlights — Features: 1x 2.5G LAN, 1x 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 256GB
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices; Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Supports S/PDIF output
Highlights — Supported RAM: 4x DDR5, Up to 8400-5600 (OC) MT/s

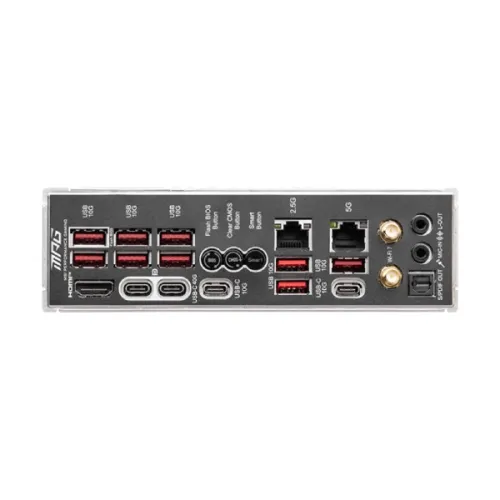

Connector & Ports — USB (s): 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 9x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear)
Highlights — Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Connector & Ports — LAN Port (s): 1x Realtek 8126 5G LAN; 1x Realtek 8125 2.5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 2x Type-C DisplayPort
Connector & Ports — Supported Storage: 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M.2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors); M.2_2 slot*; • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); • The M2_2 slot will be unavailable when using Ryzen 8000 Series processors
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Thermal Sensor connectors(T_SEN); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM
