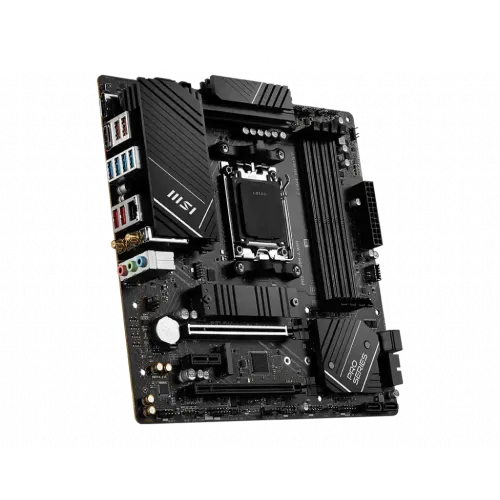

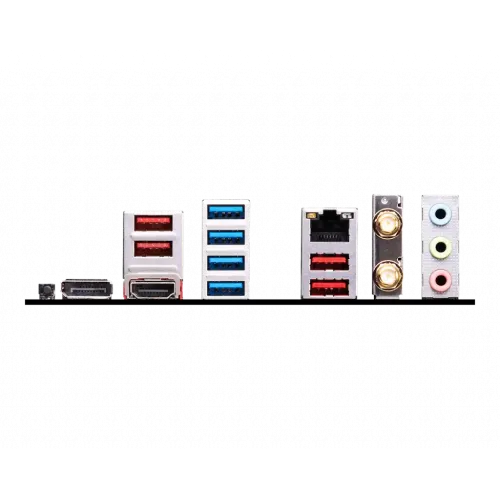

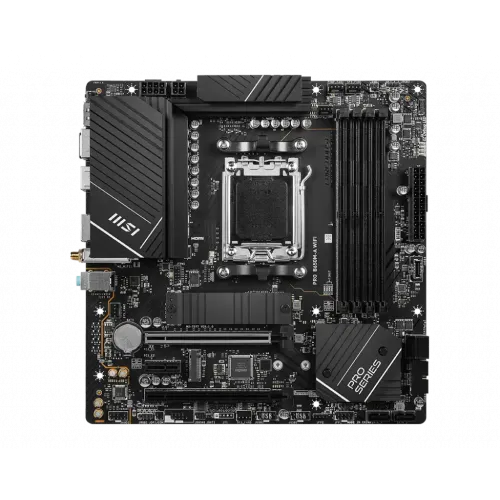

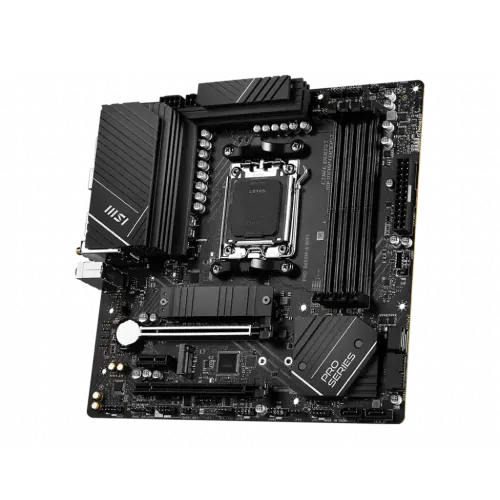

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard
Model: PRO B650M-A WIFIItem #: msi-pro-b650m-a-wifi-motherboard
৳17,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5800+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO RAM type
- mATX; 243.84mmx243.84mm Form factor
Overview
The MSI PRO B650M-A WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI PRO B650M-A WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI PRO B650M-A WIFI comes with 3 years of warranty.
Specifications
- Chipset
- AMD B650
- RAM type
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5800+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
- Form factor
- mATX; 243.84mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 4 DIMMs
- Highlights — Model
- PRO B650M-A WIFI
- Graphics — Graphics
- 1x HDMI; 1x DisplayPort; Support HDMI 2.1, maximum resolution of 4K 60Hz; Supports DP1.4, maximum resolution of 4K 60Hz
- Expansion Slots — PCI
- 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Show all 26 specificationsShow fewer
- Highlights — Features
- 2.5G LAN with Wi-Fi 6E Solution
- Memory — Maximum Memory
- 128GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- Audio Connectors
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 4x DDR5, up to 6400+(OC) MHz
- Connector & Ports — USB (s)
- 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front); 4x USB 3.2 Gen2 Type A (Rear); 1x USB 3.2 Gen2 Type C (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x Display Port
- Connector & Ports — LAN Port (s)
- Realtek 8125BG 2.5G LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G port
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 4x USB 2.0; 2x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard |  ColorfulColorful BATTLE-AX B850M-E WIFI V14 AM5 mATX Motherboard |  ColorfulColorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard |  MSIMSI MPG B550 Gaming Plus AM4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳17,000 | ৳17,000 | ৳17,000 | ৳17,000 |
| Availability | Out of stock | In stock | Upcoming | Out of stock |
| Brand | MSI | Colorful | Colorful | MSI |
| RAM type | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5800+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Support Extreme Memory Profile (XMP) memory technology; - Support EXtended Profiles for Overclocking (EXPO) memory technology; - Supports dual channel memory technolog | DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHz; 1DPC 2R max speed 3866 MHz; 2DPC 1R max speed 4000 MHz; 2DPC 2R max speed 3600 MHz; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory |
| Form factor | mATX; 243.84mmx243.84mm | M-ATX; 244mm x 235 mm | M-ATX; 245mm x 245mm | ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Chipset | AMD B650 | AMD B850 | Intel B760 | AMD B550 Chipset |
| M.2 slots | — | 2 | — | 2 |
