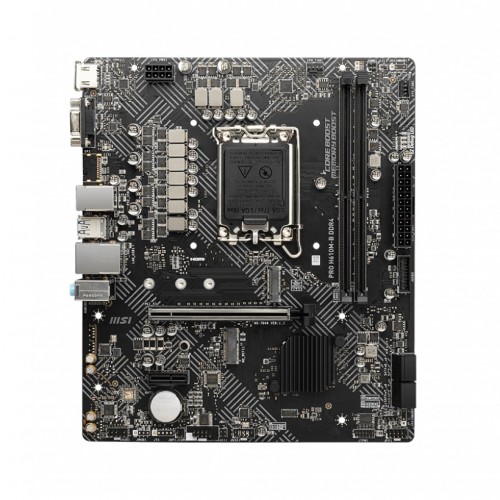

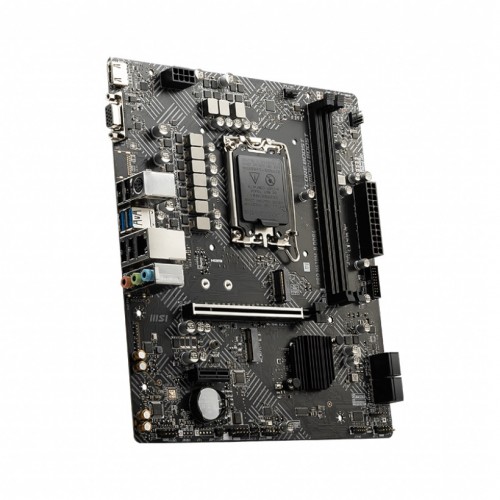

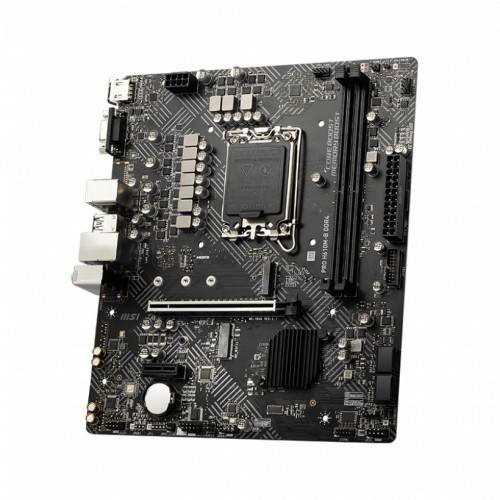

MSI PRO H610M-B DDR4 Micro-ATX Motherboard
Model: PRO H610M-B DDR4Item #: msi-pro-h610m-b-ddr4-motherboard
৳10,300
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- M-ATX Form Factor; 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Overview
The MSI PRO H610M-B DDR4 features LGA1700 socket support for 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron Processors. It comes with dual-channel non-ECC unbuffered DDR4 and 2 DIMMs. It has a 6+1+1 hybrid digital VRM design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with a Realtek 8118 LAN, a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid-plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with Fan Stop. It is designed with HDMI and D-Sub ports for multiple displays. The MSI PRO H610M-B DDR4 motherboard comes with a 3-year warranty.
Specifications
- Chipset
- Intel H610 Chipset
- RAM type
- 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- M-ATX Form Factor; 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
- Memory — Type
- DDR4
- Memory — Slots
- 2x DDR4 memory slots
- Highlights — Model
- PRO H610M-B DDR4
- Graphics — Graphics
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz; Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
- Expansion Slots — PCI
- 1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot; Supports PCIe 3.0 x1; 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Show all 20 specificationsShow fewer
- Memory — Maximum Memory
- Support up to 64GB
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Basic Information — Audio
- Realtek ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — USB (s)

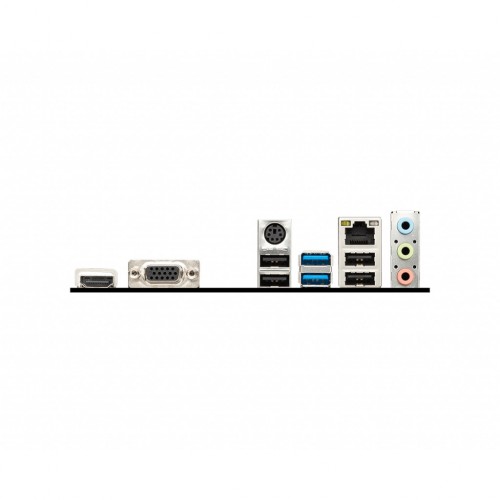

- Intel H610 Chipset:; 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
- Connector & Ports — VGA (s)
- 1x VGA port
- Connector & Ports — LAN Port (s)
- 1x Intel I219V 1Gbps LAN controller
- Basic Information — Supported CPU
- Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
- Connector & Ports — Supported Storage
- 1x M.2 slot (Key M, from chipset) ; Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel Smart Response Technology for Intel Core processors
- Connector & Ports — Internal I/O Ports
- POWER CONNECTORS:; 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; FAN CONNECTORS:; 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; SYSTEM CONNECTORS:; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; JUMPERS:; 1x Clear CMOS jumper; LED FEATURES:; 4x EZ Debug LED
- Highlights — Lightning Fast Experience
- PCIe 4.0
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM module connector
Compare with similar products
 This itemMSI PRO H610M-B DDR4 Micro-ATX Motherboard |  AsusASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard |  AsusAsus PRIME H610M-CS D4 mATX Motherboard |  GIGABYTEGigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳10,300 | ৳10,300 | ৳10,300 | ৳10,300 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | MSI | Asus | Asus | GIGABYTE |
| RAM type | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.; * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Dual channel memory architecture; Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | M-ATX Form Factor; 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) | mATX Form Factor; 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) | mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) | Micro ATX Form Factor; 24.4cm x 21.5cm; |
| Chipset | Intel H610 Chipset | Intel H470 Chipset | Intel H610 Chipset | AMD B450 |
| M.2 slots | — | 1 | 1 | — |
